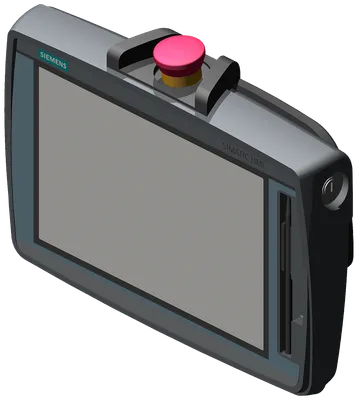

Siemens 6AV2145-6KB20-0AS0

SIMATIC HMI TP1000F MOBILE 10.0" TFT display, 1280x800 pixels, 16 million colors, Touch operation, touch pen, 1x PROFINET/Industrial Ethernet interface, 1x multimedia card, 1x USB, key-operated switch, acknowledgement button, 1 emergency stop/stop button confiigurable from WinCC Comfort V14

SiemensMFR # 6AV2145-6KB20-0AS0SKU # YLSP1HVQR14RR1C

Product type designationTP1000F Mobile

Design of displayTFT widescreen display, LED backlighting

Screen diagonal10.1 in

Color displayYes

Number of colors16 777 216

Horizontal image resolution1 280 pixel

Have questions?Chat on WhatsApp

About This Product

Siemens 6AV2145-6KB20-0AS0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationTP1000F Mobile

Display

Design of displayTFT widescreen display, LED backlighting

Screen diagonal10.1 in

Color displayYes

Number of colors16 777 216

Resolution (pixels)

Horizontal image resolution1 280 pixel

Vertical image resolution800 pixel

Backlighting

MTBF backlighting (at 25 °C)50 000 h

Backlight dimmableYes; 0-100 %

Keyboard

— Number of function keys0

— Number of function keys with LEDs0

Keys with LEDNo

Numeric keyboardYes; Onscreen keyboard

alphanumeric keyboardYes; Onscreen keyboard

Touch operation

Design as touch screenYes

Design as multi-touch screenNo

Special operator controls

Stop button (forced blocking)Yes

Emergency stop button (illuminated and forced blocking)Yes

Acknowledgement button (3-stage)Yes

Key-operated switchYes

Illuminated pushbuttonYes

HandwheelNo

Camera

integrated cameraNo

Expansions for operator control of the process

— F1...Fx0

Direct keys (touch buttons as S7 input I/O)0

Supply voltage

Type of supply voltageDC

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Input current

Current consumption (rated value)450 mA

Starting current inrush I²t0.2 A²·s

Power

Active power input, typ.11 W

Processor

Processor typeARM

Storage

FlashYes

RAMYes

Memory available for user data12 Mbyte

Type of output

Power LEDNo

LED for safeNo

LED for communicationNo

LED for batteryNo

VibrationsNo

Clock

Hardware clock (real-time)Yes

retentiveYes

synchronizableYes

Interfaces

Number of industrial Ethernet interfaces1

Number of PROFINET interfaces1

Number of RS 485 interfaces0

Number of RS 422 interfaces0

Number of RS 232 interfaces0

Number of USB interfaces1; USB 2.0

Number of wireless interfaces0

Number of SD card slots1

Protocols

PROFINETYes

Supports protocol for PROFINET IOYes

PROFIsafeYes

PROFIBUSNo

EtherNet/IPYes

MPINo

Protocols (Ethernet)

TCP/IPYes

DHCPYes

SNMPYes

DCPYes

LLDPYes

WEB characteristics

HTTPYes

HTTPSYes

HTMLYes

XMLNo

CSSYes

Active XNo

JavaScriptYes

Java VMNo

Further protocols

MODBUSYes

other bus systemsNo

Wireless communication

— Radio standard WLAN 802.11No

— Bluetooth radio standardNo

Diagnoses

Diagnostic information readableYes

Emission of radio interference acc. to EN 55 011

Limit class A, for use in industrial areasYes

Limit class B, for use in residential areasNo

Degree and class of protection

IP65 (all-round)Yes

Standards, approvals, certificates

CE markYes

cULusYes

RCM (formerly C-TICK)Yes

KC approvalNo

Suitable for safety functionsYes

Marine approvalNo

Highest safety class achievable in safety mode

Performance level according to ISO 13849-1PLe

SIL acc. to IEC 61508SIL 3

Use in hazardous areas

ATEX Zone 2No

ATEX Zone 22No

IECEx Zone 2No

IECEx Zone 22No

cULus Class I Zone 1No

cULus Class I Zone 2, Division 2No

FM Class I Division 2No

Marine approval

Germanischer Lloyd (GL)No

American Bureau of Shipping (ABS)No

Bureau Veritas (BV)No

Det Norske Veritas (DNV)No

Korean Register of Shipping (KRS)No

Lloyds Register of Shipping (LRS)No

Nippon Kaiji Kyokai (Class NK)No

Polski Rejestr Statkow (PRS)No

Chinese Classification Society (CCS)No

Free fall

Fall height, max.1.2 m

Ambient temperature during operation

min.0 °C

max.45 °C

Ambient temperature during storage/transportation

min.-20 °C

max.60 °C

Relative humidity

Operation, max.90 %

pre-installed operating system

Windows CEYes

Configuration

Message indicatorYes

Alarm system (incl. buffer and acknowledgment)Yes

Process value display (output)Yes

Process value default (input) possibleYes

Recipe managementYes

Configuration software

STEP 7 Basic (TIA Portal)No

STEP 7 Professional (TIA Portal)No

WinCC flexible CompactNo

WinCC flexible StandardNo

WinCC flexible AdvancedNo

WinCC Basic (TIA Portal)No

WinCC Comfort (TIA Portal)Yes

WinCC Advanced (TIA Portal)Yes

WinCC Professional (TIA Portal)Yes

Online languages

Number of online/runtime languages32

Project languages

Languages per project32

Functionality under WinCC (TIA Portal)

LibrariesYes

Web browserYes

Pocket WordNo

Pocket ExcelNo

PDF ViewerYes

Media PlayerNo

SIMATIC WinCC Sm@rtServerYes

SIMATIC WinCC AuditYes

Number of Visual Basic ScriptsYes

time-controlledYes

task-controlledYes

Number of characters per info text500

Multiproject

Number of projects (internal)0

Number of projects (external)0

Message system

Number of alarm classes32

— Number of bit messages4 000

— Number of analog messages200

S7 alarm number procedureYes

System messages HMIYes

System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... )Yes

Number of characters per message80

Number of process values per message8

Acknowledgment groupsYes

Message indicatorYes

— Number of entries1 024

— Circulating bufferYes

— retentiveYes

— maintenance-freeYes

Recipe management

Number of recipes300

Data records per recipe500

Entries per data record1 000

Size of internal recipe memory2 Mbyte

Recipe memory expandableYes

Variables

Number of variables per device2 048

Number of variables per screen400

Limit valuesYes

MultiplexingYes

StructuresYes

ArraysYes

Images

Number of configurable images500

Permanent window/defaultYes

Global imageYes

Image selection by PLCYes

Image number in the PLCYes

Image objects

Number of objects per image400

Text fieldsYes

I/O fieldsYes

Graphic I/O fields (graphics list)Yes

Symbolic I/O fields (text list)Yes

Date/time fieldsYes

SwitchesYes

Graphic displayYes

IconsYes

Geometric objectsYes

Complex image objects

Number of complex objects per screen20

Alarm viewYes

Trend viewYes

User viewYes

Status/controlYes

Sm@rtClient viewYes

Recipe viewYes

f(x) trend viewYes

System diagnostics viewYes

Media PlayerNo

Bar graphsYes

SlidersYes

Pointer instrumentsYes

Analog/digital clockYes

Lists

Number of text lists per project500

Number of entries per text list500

Number of graphics lists per project500

Number of entries per graphics list500

Archiving

Number of archives per device50

Number of entries per archive20 000

Message archiveYes

Process value archiveYes

— Sequential archiveYes

— Short-term archiveYes

— Memory cardYes

— USB memoryYes

— EthernetYes

— CSVYes

— TXTNo

— RDBYes

Security

Number of user groups50

Number of user rights32

Number of users50

Password export/importYes

SIMATIC LogonYes

Logging through printer

AlarmsYes

Report (shift log)Yes

HardcopyNo

Electronic print to fileNo

Character sets

— US EnglishYes

Transfer (upload/download)

MPI/PROFIBUS DPNo

USBNo

EthernetYes

Wireless LANNo

using external storage mediumYes; Backup/restore

Process coupling

S7-1200Yes

S7-1500Yes

S7-200Yes

S7-300/400Yes

LOGO!Yes

WinACYes; WinAC RTX

SINUMERIKYes; without NC channel

SIMOTIONYes

Allen Bradley (EtherNet/IP)Yes

Allen Bradley (DF1)No

Mitsubishi (MC TCP/IP)Yes

Mitsubishi (FX)Yes

OMRON (FINS TCP)No

OMRON (Host Link)No

Modicon (Modbus TCP/IP)Yes

Modicon (Modbus RTU)No

OPC UA ClientYes

OPC UA ServerYes

Service tools/configuration aids

Backup/Restore manuallyYes

Backup/Restore automaticallyYes

SimulationYes

Device switchoverYes

Peripherals/Options

PrinterYes

SIMATIC HMI MM memory card: Multi Media CardYes

SIMATIC HMI SD memory card: Secure Digital memory cardYes

USB memoryYes

Network cameraYes

Additional software components loadableYes; SIMATIC options

Mechanics/material

PlasticYes

AluminumNo

Stainless steelNo

Dimensions

Width of the housing front307.5 mm

Height of housing front223.5 mm

Weights

Weight (without packaging)1.6 kg

Weight (with packaging)1.7 kg

Accessories 32

Genuine accessories that can be used with the Siemens 6AV2145-6KB20-0AS0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6AV2181-8XP00-0AX0	Aksesuar · Memory card · Storage media
6AV2185-5AE23-2AA0	Aksesuar · Connection box
6AV2181-8AT00-0AX1	Aksesuar · Accessories · input devices, cables
6AV7860-0CH30-0AA0	Aksesuar · line · input devices, cables
6AV6645-7AB14-0AS1	Aksesuar · Accessories
6AV6881-5AD18-2AA0	Aksesuar · Service pack
6AV6881-0AV63-0BA0	Aksesuar · spare part
6AV6881-0AV62-1AA0	Aksesuar · spare part
6AV6881-0AV61-0AA0	Aksesuar · spare part
6AV6881-0AV22-0AA0	Aksesuar · Accessories · input tools
6AV6881-0AV21-0AA0	Aksesuar · Accessories · input tools
6AV2181-5GJ00-0AX0	Aksesuar · protective film · protective films
6AV2181-5AR80-0AX0	Aksesuar · spare part · other accessories
6AV6881-5AA00-0AA1	Aksesuar · Service pack · service sets
6AV6881-0AG11-0AA0	Aksesuar · Service pack · service sets
6AV2181-5AF25-0AX0	Aksesuar · Cable · process coupling, connecting cables
6AV2181-5AF20-0AX0	Aksesuar · Cable · process coupling, connecting cables
6AV2181-5AF15-0AX0	Aksesuar · Cable · process coupling, connecting cables
6AV2181-5AF10-0AX0	Aksesuar · Cable · process coupling, connecting cables
6AV2181-5AF08-0AX0	Aksesuar · Cable · process coupling, connecting cables
6AV2181-5AF05-0AX0	Aksesuar · Cable · process coupling, connecting cables
6AV2181-5AF02-0AX0	Aksesuar · Cable · process coupling, connecting cables
6AV2125-2AE23-0AX0	Aksesuar · Connection box
6AV2125-2AE13-0AX0	Aksesuar · Connection box
6AV2125-2AE03-0AX0	Aksesuar · Connection box
6AV6881-0AQ10-0AA0	Aksesuar · Memory card · Storage media
6AV6881-0AF21-0LB0	Aksesuar · Bus cable · input devices, cables
6AV6881-0AU14-1AA0	Aksesuar · Accessories · input devices, cables
6AV6881-0AU14-0AA0	Aksesuar · Accessories · input devices, cables
6AV2181-5AG80-0AX0	Aksesuar · Accessories (mounting) · fixing elements, mounting
