How can I get a price quote for Siemens 6AV2125-2AE03-0AX0?

You can request a fast quote for Siemens 6AV2125-2AE03-0AX0 from Yılsa Engineering. Reference part number CEY-937FC77E5A3A. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6AV2125-2AE03-0AX0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6AV2125-2AE03-0AX0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6AV2125-2AE03-0AX0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

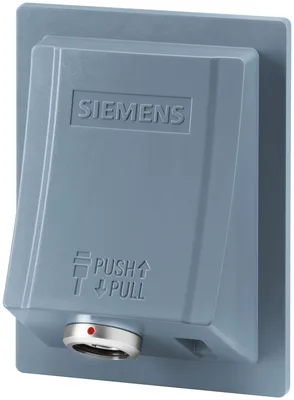

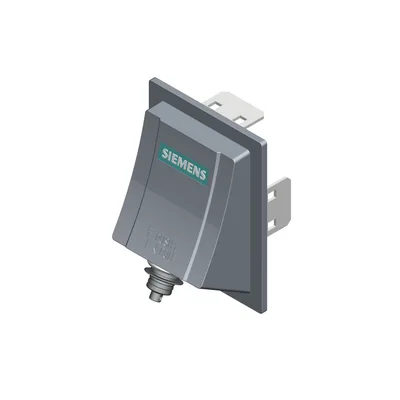

Siemens 6AV2125-2AE03-0AX0

SIMATIC HMI connection box compact for Mobile Panels, installation in control cabinet, PROFINET and PROFIsafe, connection of safety relay, Connection point detection

SiemensMFR # 6AV2125-2AE03-0AX0SKU # CEY-937FC77E5A3A

Product type designationConnection box

Web-based managementNo

Monitoring the STOP buttonYes

Monitoring of emergency stop buttonYes

Monitoring of acknowledgement buttonYes

Monitoring the STOP buttonYes

Have questions?Chat on WhatsApp

About This Product

SIMATIC HMI connection box compact for Mobile Panels, installation in control cabinet, PROFINET and PROFIsafe, connection of safety relay, Connection point detection

Siemens 6AV2125-2AE03-0AX0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationConnection box

Product function

Web-based managementNo

Safety evaluation through direct wiring

Reconnection without emergency stop circuit interruptionNo

Reconnection with emergency stop circuit interruptionYes

Monitoring the STOP buttonYes

Monitoring of emergency stop buttonYes

Monitoring of acknowledgement buttonYes

Safety evaluation via PROFIsafe

Reconnection without emergency stop circuit interruptionYes

Reconnection with emergency stop circuit interruptionNo

Monitoring the STOP buttonYes

Monitoring of emergency stop buttonYes

Monitoring of acknowledgement buttonYes

Installation type/mounting

Wall mounting/direct mountingNo

Control cabinet installationYes

Supply voltage

Type of supply voltageDC

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Input current

Current consumption (rated value)18 mA

Starting current inrush I²t0.003 A²·s

Power

Active power input, typ.0.43 W

Interfaces

Number of industrial Ethernet interfaces2

Number of PROFINET interfaces2

Connection point identificationYes

Industrial Ethernet

Industrial Ethernet status LED0

Protocols

PROFINETYes; No switch functionality

IRTNo

PROFIsafeYes; No switch functionality

EtherNet/IPYes

AS-InterfaceNo

EIB/KNXNo

Protocols (Ethernet)

TCP/IPYes; No switch functionality

DHCPNo

SNMPNo

DCPNo

LLDPNo

Media redundancy

— MRPNo

Further protocols

MODBUSYes

other bus systemsNo

Emission of radio interference acc. to EN 55 011

Limit class A, for use in industrial areasYes; EN 61000-6-4, interference emission: Intended for use in industrial areas.

Limit class B, for use in residential areasNo

Degree and class of protection

IP (at the front)IP65

IP (rear)IP20

Standards, approvals, certificates

CE markYes

cULusYes

RCM (formerly C-TICK)Yes

KC approvalNo; in preparation

Suitable for safety functionsYes

Highest safety class achievable in safety mode

Performance level according to ISO 13849-1PLe

SIL acc. to IEC 61508SIL 3

Use in hazardous areas

ATEX Zone 2No

ATEX Zone 22No

cULus Class I Zone 1No

cULus Class I Zone 2, Division 2No

FM Class I Division 2No

Marine approval

Germanischer Lloyd (GL)Yes

American Bureau of Shipping (ABS)Yes

Bureau Veritas (BV)Yes

Det Norske Veritas (DNV)Yes

Korean Register of Shipping (KRS)Yes

Lloyds Register of Shipping (LRS)Yes

Nippon Kaiji Kyokai (Class NK)Yes

Polski Rejestr Statkow (PRS)No

Chinese Classification Society (CCS)Yes

Ambient temperature during operation

min.0 °C

max.55 °C

Relative humidity

Operation, max.90 %

Configuration software

STEP 7 Professional (TIA Portal)No

WinCC Comfort (TIA Portal)No

WinCC Advanced (TIA Portal)No

WinCC Professional (TIA Portal)No

Mechanics/material

PlasticYes

AluminumNo

Stainless steelNo

Dimensions

Width96 mm

Height125 mm

Depth77.9 mm

Mounting cutout, width78 mm

Mounting cutout, height107 mm

mounting depth30 mm

Weights

Weight (without packaging)0.25 kg

Weight (with packaging)0.29 kg

Accessories 7

Genuine accessories that can be used with the Siemens 6AV2125-2AE03-0AX0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6AV2181-5AF02-0AX0	Aksesuar · Cable · process coupling, connecting cables
6AV2181-5AF05-0AX0	Aksesuar · Cable · process coupling, connecting cables
6AV2181-5AF08-0AX0	Aksesuar · Cable · process coupling, connecting cables
6AV2181-5AF10-0AX0	Aksesuar · Cable · process coupling, connecting cables
6AV2181-5AF15-0AX0	Aksesuar · Cable · process coupling, connecting cables
6AV2181-5AF20-0AX0	Aksesuar · Cable · process coupling, connecting cables
6AV2181-5AF25-0AX0	Aksesuar · Cable · process coupling, connecting cables
