How can I get a price quote for Siemens 6AV2145-6KB10-0AS0?

You can request a fast quote for Siemens 6AV2145-6KB10-0AS0 from Yılsa Engineering. Reference part number YLSCVU6LT4IP4K. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6AV2145-6KB10-0AS0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6AV2145-6KB10-0AS0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6AV2145-6KB10-0AS0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

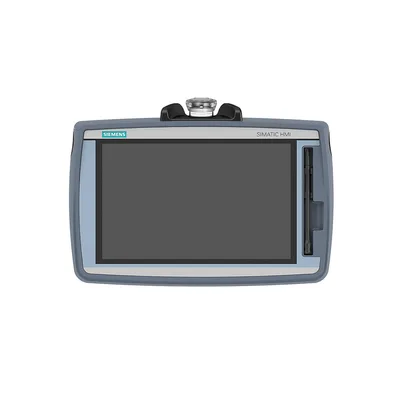

Siemens 6AV2145-6KB10-0AS0

SIMATIC HMI TP1000F MOBILE RO 10.0" TFT display, 1280x800 pixels, 16 million colors, Touch operation, touch pen, 1x PROFINET/Industrial Ethernet interface, 1x multimedia card, 1x USB, no key-operated switch, acknowledgement button, 1 emergency stop/stop button with Remote Operate

SiemensMFR # 6AV2145-6KB10-0AS0SKU # YLSCVU6LT4IP4K

Product type designationTP1000F Mobile RO

Design of displayTFT widescreen display, LED backlighting

Screen diagonal10.1 in

Color displayYes

Number of colors16 777 216

Horizontal image resolution1 280 pixel

Have questions?Chat on WhatsApp

About This Product

Siemens 6AV2145-6KB10-0AS0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationTP1000F Mobile RO

Display

Design of displayTFT widescreen display, LED backlighting

Screen diagonal10.1 in

Color displayYes

Number of colors16 777 216

Resolution (pixels)

Horizontal image resolution1 280 pixel

Vertical image resolution800 pixel

Backlighting

MTBF backlighting (at 25 °C)50 000 h

Backlight dimmableYes; 0-100 %

Keyboard

— Number of function keys0

— Number of function keys with LEDs0

Keys with LEDNo

Numeric keyboardYes; Onscreen keyboard

alphanumeric keyboardYes; Onscreen keyboard

Touch operation

Design as touch screenYes

Design as multi-touch screenNo

Special operator controls

Stop button (forced blocking)Yes

Emergency stop button (illuminated and forced blocking)Yes

Acknowledgement button (3-stage)Yes

Key-operated switchNo

Illuminated pushbuttonNo

HandwheelNo

Camera

integrated cameraNo

Expansions for operator control of the process

— F1...Fx0

Direct keys (touch buttons as S7 input I/O)0

Supply voltage

Type of supply voltageDC

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Input current

Current consumption (rated value)450 mA

Starting current inrush I²t0.2 A²·s

Power

Active power input, typ.11 W

Processor

Processor typeARM

Storage

FlashYes

RAMYes

Memory available for user data12 Mbyte

Type of output

Power LEDNo

LED for safeNo

LED for communicationNo

LED for batteryNo

VibrationsNo

Clock

Hardware clock (real-time)Yes

retentiveYes

synchronizableYes

Interfaces

Number of industrial Ethernet interfaces1

Number of PROFINET interfaces1

Number of RS 485 interfaces0

Number of RS 422 interfaces0

Number of RS 232 interfaces0

Number of USB interfaces1; USB 2.0

Number of wireless interfaces0

Number of SD card slots1

Protocols

PROFINETNo

PROFINET IONo

PROFIsafeNo

PROFIBUSNo

EtherNet/IPYes

MPINo

Protocols (Ethernet)

TCP/IPYes

DHCPYes

SNMPYes

DCPYes

LLDPYes

WEB characteristics

HTTPYes

HTTPSYes

HTMLYes

XMLNo

CSSYes

Active XNo

JavaScriptYes

Java VMNo

Further protocols

MODBUSYes

other bus systemsNo

Wireless communication

— Radio standard WLAN 802.11No

— Bluetooth radio standardNo

Diagnoses

Diagnostic information readableYes

Emission of radio interference acc. to EN 55 011

Limit class A, for use in industrial areasYes

Limit class B, for use in residential areasNo

Degree and class of protection

IP65 (all-round)Yes

Standards, approvals, certificates

CE markYes

cULusYes

RCM (formerly C-TICK)Yes

KC approvalNo

Suitable for safety functionsYes

Marine approvalNo

Highest safety class achievable in safety mode

Performance level according to ISO 13849-1PLe

SIL acc. to IEC 61508SIL 3

Use in hazardous areas

ATEX Zone 2No

ATEX Zone 22No

IECEx Zone 2No

IECEx Zone 22No

cULus Class I Zone 1No

cULus Class I Zone 2, Division 2No

FM Class I Division 2No

Marine approval

Germanischer Lloyd (GL)No

American Bureau of Shipping (ABS)No

Bureau Veritas (BV)No

Det Norske Veritas (DNV)No

Korean Register of Shipping (KRS)No

Lloyds Register of Shipping (LRS)No

Nippon Kaiji Kyokai (Class NK)No

Polski Rejestr Statkow (PRS)No

Chinese Classification Society (CCS)No

Free fall

Fall height, max.1.2 m

Ambient temperature during operation

min.0 °C

max.45 °C

Ambient temperature during storage/transportation

min.-20 °C

max.60 °C

Relative humidity

Operation, max.90 %

pre-installed operating system

Windows CEYes

Online languages

Number of online/runtime languages32

Security

Number of user groups50

Service tools/configuration aids

Backup/Restore manuallyYes

Backup/Restore automaticallyYes

Peripherals/Options

PrinterYes

SIMATIC HMI MM memory card: Multi Media CardYes

SIMATIC HMI SD memory card: Secure Digital memory cardYes

USB memoryYes

Additional software components loadableYes; SIMATIC options

Mechanics/material

PlasticYes

AluminumNo

Stainless steelNo

Dimensions

Width of the housing front307.5 mm

Height of housing front223.5 mm

Weights

Weight (without packaging)1.6 kg

Weight (with packaging)1.7 kg

Accessories 28

Genuine accessories that can be used with the Siemens 6AV2145-6KB10-0AS0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6AV2181-8XP00-0AX0	Aksesuar · Memory card · Storage media
6AV2185-5AE23-2AA0	Aksesuar · Connection box
6AV2181-8AT00-0AX1	Aksesuar · Accessories · input devices, cables
6AV7860-0CH30-0AA0	Aksesuar · line · input devices, cables
6AV6881-5AD18-2AA0	Aksesuar · Service pack
6AV6881-0AV62-1AA0	Aksesuar · spare part
6AV6881-0AV61-0AA0	Aksesuar · spare part
6AV6881-0AV22-0AA0	Aksesuar · Accessories · input tools
6AV6881-0AV21-0AA0	Aksesuar · Accessories · input tools
6AV6881-5AA00-0AA1	Aksesuar · Service pack · service sets
6AV6881-0AG11-0AA0	Aksesuar · Service pack · service sets
6AV2125-2AE23-0AX0	Aksesuar · Connection box
6AV2125-2AE13-0AX0	Aksesuar · Connection box
6AV2125-2AE03-0AX0	Aksesuar · Connection box
6AV6881-0AQ10-0AA0	Aksesuar · Memory card · Storage media
6AV6881-0AF21-0LB0	Aksesuar · Bus cable · input devices, cables
6AV6881-0AU14-1AA0	Aksesuar · Accessories · input devices, cables
6AV6881-0AU14-0AA0	Aksesuar · Accessories · input devices, cables
6AV2181-5AG80-0AX0	Aksesuar · Accessories (mounting) · fixing elements, mounting
6XV1440-4BN25	Aksesuar · Bus cable · process coupling, connecting cables
6XV1440-4BN20	Aksesuar · Bus cable · process coupling, connecting cables
6XV1440-4BN15	Aksesuar · Bus cable · process coupling, connecting cables
6XV1440-4BN10	Aksesuar · Bus cable · process coupling, connecting cables
6XV1440-4BH80	Aksesuar · Bus cable · process coupling, connecting cables
6XV1440-4BH50	Aksesuar · Bus cable · process coupling, connecting cables
6XV1440-4BH20	Aksesuar · Bus cable · process coupling, connecting cables
9LF1110-6DA13-2AB1	Servis · Service Card
9TF6276-2XA11-1AL4	Servis
