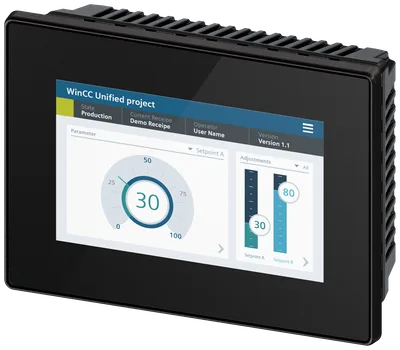

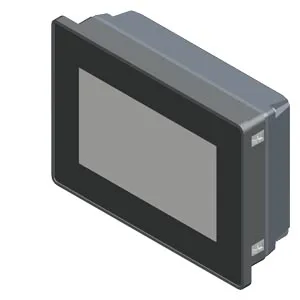

Siemens 6AV2128-3GB36-0AX1

SIMATIC HMI MTP700, Unified Comfort Panel, neutral, touch operation, 7" widescreen TFT display, 16 million colors, PROFINET interface, configurable as of WinCC Unified Comfort V16, contains open-source software, which is provided free of charge see enclosed DVD

SiemensMFR # 6AV2128-3GB36-0AX1SKU # YLSHBC6QRBWFB6

Product type designationMTP700 Unified Comfort

Design of displayTFT

Screen diagonal7 in

Display width152.4 mm

Display height91.4 mm

Number of colors16 777 216

Have questions?Chat on WhatsApp

About This Product

Siemens 6AV2128-3GB36-0AX1

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationMTP700 Unified Comfort

Display

Design of displayTFT

Screen diagonal7 in

Display width152.4 mm

Display height91.4 mm

Number of colors16 777 216

Resolution (pixels)

Horizontal image resolution800 pixel

Vertical image resolution480 pixel

Backlighting

MTBF backlighting (at 25 °C)50 000 h; At 25°C

Backlight dimmableYes; 5-100 %

Keyboard

Numeric keyboardYes; Onscreen keyboard

alphanumeric keyboardYes; Onscreen keyboard

Touch operation

Design as touch screenYes

Design as multi-touch screenYes

Installation type/mounting

Mounting positionvertical

Mounting in portrait format possibleYes

Mounting in landscape format possibleYes

maximum permissible angle of inclination without external ventilation35°

Supply voltage

Type of supply voltageDC

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Input current

Current consumption (rated value)0.45 A

Current consumption, max.1 A

Starting current inrush I²t0.5 A²·s

Storage

FlashYes

RAMYes

Type of output

BuzzerYes

SpeakerNo

Clock

Hardware clock (real-time)Yes

Software clockYes

retentiveYes; Back-up duration typically 6 weeks

synchronizableYes

Interfaces

Number of industrial Ethernet interfaces2; 2 ports (switch) + independent port

Number of RS 485 interfaces1; RS 422 / 485 combined

Number of RS 422 interfaces0; together with RS 485

Number of USB interfaces4; USB 3.1 Gen. 1 (type A)

Number of SD card slots2

Industrial Ethernet

Industrial Ethernet status LED2

Number of ports of the integrated switch2

Protocols

PROFINETYes

Supports protocol for PROFINET IONo

Protocols (Ethernet)

TCP/IPYes

DHCPYes

SNMPYes

DCPYes

LLDPYes

Media redundancy

— MRPYes

Emission of radio interference acc. to EN 55 011

Limit class A, for use in industrial areasYes

Limit class B, for use in residential areasNo

Degree and class of protection

IP (at the front)IP65

IP (rear)IP20

Enclosure Type 4x at the frontYes

Enclosure Type 12 at the frontYes

Standards, approvals, certificates

Siemens Eco Profile (SEP)Siemens EcoTech

CE markYes

UKCA markYes

cULusYes

RCM (formerly C-TICK)Yes

KC approvalYes

EAC (formerly Gost-R)Yes

CCCYes

Ecological footprint

environmental product declarationYes

Global warming potential

— global warming potential, (total) [CO2 eq]196 kg

— global warming potential, (during production) [CO2 eq]41.6 kg

— global warming potential, (during operation) [CO2 eq]159 kg

— global warming potential, (after end of life cycle) [CO2 eq]-4.38 kg

Use in hazardous areas

ATEX Zone 2Yes

ATEX Zone 22Yes

IECEx Zone 2Yes

IECEx Zone 22Yes

cULus Class I Zone 2, Division 2Yes

cULus Class II Division 2Yes

FM Class I Division 2Yes

FM Class II Division 2Yes

Marine approval

Germanischer Lloyd (GL)No; included in DNV

American Bureau of Shipping (ABS)Yes

Bureau Veritas (BV)Yes

Det Norske Veritas (DNV)Yes

Korean Register of Shipping (KRS)Yes

Lloyds Register of Shipping (LRS)Yes

Nippon Kaiji Kyokai (Class NK)Yes

Chinese Classification Society (CCS)Yes

Ambient conditions

Suited for indoor useYes

Suited for outdoor useNo

Operation (vertical installation)

— For vertical installation, min.0 °C

— For vertical installation, max.50 °C

Operation (max. tilt angle)

— At maximum tilt angle, min.0 °C

— At maximum tilt angle, max.40 °C

Operation (vertical installation, portrait format)

— For vertical installation, min.0 °C

— For vertical installation, max.40 °C

Operation (max. tilt angle, portrait format)

— At maximum tilt angle, min.0 °C

— At maximum tilt angle, max.35 °C

Ambient temperature during storage/transportation

min.-20 °C

max.60 °C

Relative humidity

Operation, max.90 %; no condensation

Operating systems

proprietaryYes

Configuration

Message indicatorYes

Alarm system (incl. buffer and acknowledgment)Yes

Process value display (output)Yes

Process value default (input) possibleYes

Recipe managementYes

Configuration software

WinCC Unified Comfort Engineering (TIA Portal)Yes

WinCC Unified PC Engineering (TIA Portal)Yes

Online languages

Number of online/runtime languages32

Project languages

Languages per project32

Functionality under WinCC Unified

LibrariesYes

WriterYes

CalcYes

Web browserYes

PDF ViewerYes

Media PlayerYes

SIMATIC WinCC Sm@rtServerYes

SIMATIC WinCC AuditYes

Unified CollaborationYes

Number of Visual Basic ScriptsNo

JavaScriptYes

time-controlledYes

task-controlledYes

Number of characters per info text70

Number of message texts per message10

Message system

Number of alarm classes32

— Number of bit messages9 000

— Number of analog messages300

S7 alarm number procedureYes

System messages HMIYes

System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... )Yes

Number of characters per message512

Number of process values per message10

Acknowledgment groupsYes

Message indicatorYes; as dynamic widgets

Message bufferYes; Configured as alarm archive

— Circulating bufferYes

— retentiveYes

— maintenance-freeYes

Parameter set management (recipes)

Number of parameter set types750

Parameter sets per parameter set type2 000

Entries per parameter set4 000; as of WinCC Unified V20

Size of internal parameter set memory12 Mbyte

Parameter set memory expandableYes

Variables

Number of variables per device8 000

Number of variables per screen600

Limit valuesYes

StructuresYes

ArraysYes

Images

Number of configurable images1 200

FaceplateYes

Image objects

Number of objects per image800

Picture windowYes

Text fieldsYes

I/O fieldsYes

Graphic I/O fields (graphics list)Yes

Symbolic I/O fields (text list)Yes

Scalable Vector Graphics (SVG)Yes

Date/time fieldsYes

CheckboxYes

Option buttonYes

SwitchesYes

ButtonsYes

Graphic displayYes

IconsYes

Custom web displayYes

Geometric objectsYes

Complex image objects

Number of complex objects per screen40

Alarm viewYes

Trend viewYes

User viewYes

Status/controlNo

Parameter set displayYes

HTML browserYes

Bar graphsYes

SlidersYes

Pointer instrumentsYes

Analog/digital clockYes

Lists

Number of text lists per project750

Number of entries per text list750

Number of graphics lists per project750

Number of entries per graphics list750

Archiving

Number of archives per device50

Number of entries per archive500 000

Message archiveYes

Process value archiveYes

— Sequential archiveYes

— Short-term archiveYes

— Memory cardYes

— USB memoryYes

— EthernetNo

Security

Number of roles50

Number of function rights20; number of predefined function rights

Number of users200

Password export/importYes

Central user administrationYes; as of WinCC Unified V17

Transfer (upload/download)

USBNo

EthernetYes

using external storage mediumYes; as of WinCC Unified V17

Process coupling

S7-1200Yes

S7-1500Yes

S7-200Yes

S7-300/400Yes

Number of S7 connections16

LOGO!Yes; as of WinCC Unified V20

WinACNo

SINUMERIKNo

SIMOTIONNo

Allen Bradley (EtherNet/IP)Yes

Allen Bradley (DF1)Yes

Mitsubishi (MC TCP/IP)Yes

Mitsubishi (FX)Yes

OMRON (FINS TCP)Yes

OMRON (Host Link)No

Modicon (Modbus TCP/IP)Yes

Modicon (Modbus RTU)Yes

OPC UA ClientYes

OPC UA ServerYes

Software Controller/Open ControllerYes

Service tools/configuration aids

Backup/Restore manuallyYes

Backup/Restore automaticallyYes

SimulationYes

Device switchoverYes

Peripherals/Options

PeripheralsPrinter, barcode reader

PrinterYes

SIMATIC HMI MM memory card: Multi Media CardNo

SIMATIC HMI SD memory card: Secure Digital memory cardYes

SIMATIC HMI CF memory card Compact Flash CardNo

USB memoryYes

SIMATIC IPC USB Flashdrive (USB stick)Yes

SIMATIC HMI USB stickYes

Network cameraNo

Mechanics/material

AluminumYes

Dimensions

Width of the housing front214 mm

Height of housing front158 mm

Mounting cutout, width198.3 mm

Mounting cutout, height142 mm

mounting depth63.6 mm

Weights

Weight (without packaging)1.4 kg

Accessories 31

Genuine accessories that can be used with the Siemens 6AV2128-3GB36-0AX1 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6AV2181-5AG80-0AX0	Aksesuar · Accessories (mounting) · fixing elements, mounting
6AV2185-5AE23-2AA0	Aksesuar · Connection box
6AV2181-8AT00-0AX1	Aksesuar · Accessories · input devices, cables
6AV7860-0CH30-0AA0	Aksesuar · line · input devices, cables
6AV6645-7AB14-0AS1	Aksesuar · Accessories
6AV6881-5AD18-2AA0	Aksesuar · Service pack
6AV6881-0AV63-0BA0	Aksesuar · spare part
6AV6881-0AV62-1AA0	Aksesuar · spare part
6AV6881-0AV61-0AA0	Aksesuar · spare part
6AV6881-0AV22-0AA0	Aksesuar · Accessories · input tools
6AV6881-0AV21-0AA0	Aksesuar · Accessories · input tools
6AV6881-5AA00-0AA1	Aksesuar · Service pack · service sets
6AV6881-0AG11-0AA0	Aksesuar · Service pack · service sets
6AV2181-5AF20-0AX0	Aksesuar · Cable · process coupling, connecting cables
6AV2181-5AF15-0AX0	Aksesuar · Cable · process coupling, connecting cables
6AV2181-5AF10-0AX0	Aksesuar · Cable · process coupling, connecting cables
6AV2181-5AF08-0AX0	Aksesuar · Cable · process coupling, connecting cables
6AV2181-5AF05-0AX0	Aksesuar · Cable · process coupling, connecting cables
6AV2181-5AF02-0AX0	Aksesuar · Cable · process coupling, connecting cables
6AV2125-2AE23-0AX0	Aksesuar · Connection box
6AV2125-2AE13-0AX0	Aksesuar · Connection box
6AV2125-2AE03-0AX0	Aksesuar · Connection box
6AV6881-0AF21-0LB0	Aksesuar · Bus cable · input devices, cables
6AV6881-0AU14-1AA0	Aksesuar · Accessories · input devices, cables
6AV6881-0AU14-0AA0	Aksesuar · Accessories · input devices, cables
6AV2181-5AF25-0AX0	Aksesuar · Cable · process coupling, connecting cables
6AV2181-5DJ10-0AX0	Aksesuar · Accessories · labeling strips, labeling
6AV2181-5DJ00-0AX0	Aksesuar · protective film · protective films
6AV2124-6DJ00-0AX0	Aksesuar · protective film · protective films
9LF1110-6DA13-2AB1	Servis · Service Card
9TF6276-2XA11-1AL4	Servis
