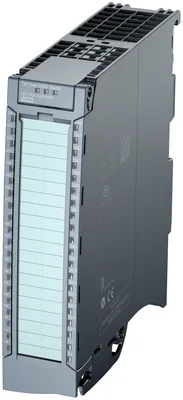

Siemens 6AG1522-5FH00-7AB0

SIPLUS S7-1500 DQ 16x230VAC 1A ST TRIAC based on 6ES7522-5FH00-0AB0 with conformal coating, -40…+70 °C, start up -25 °C, digital output module 16 channels in groups of 2; 2 A per group; substitute value

SiemensMFR # 6AG1522-5FH00-7AB0SKU # CEY-8EF3B0388E62

Product type designationDQ 16x230VAC/1A ST (Triac)

FW update possibleYes

based on6ES7522-5FH00-0AB0

I&M dataYes; I&M0 to I&M3

Isochronous modeNo

Prioritized startupYes

Have questions?Chat on WhatsApp

About This Product

Siemens 6AG1522-5FH00-7AB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationDQ 16x230VAC/1A ST (Triac)

FW update possibleYes

based on6ES7522-5FH00-0AB0

Product function

I&M dataYes; I&M0 to I&M3

Isochronous modeNo

Prioritized startupYes

Engineering with

STEP 7 TIA Portal configurable/integrated from versionsee entry ID: 109746275

Operating mode

DQYes

DQ with energy-saving functionNo

PWMNo

OversamplingNo

MSOYes

Integrated operating cycle counterYes; FW V1.3.0 or higher

Output voltage

Rated value (AC)230 V; 120/230 V AC, 50/60 Hz

Power

Power consumption from the backplane bus1.2 W

Power loss

Power loss, typ.11.1 W

Digital outputs

Type of digital outputTriac

Number of digital outputs16

Current-sinkingYes

Current-sourcingYes

Digital outputs, parameterizableYes

Short-circuit protectionNo

built-in fuse6.3 A melting fuse, slow-blow

Size of motor starters according to NEMA, max.4

Switching capacity of the outputs

with resistive load, max.1 A

on lamp load, max.50 W

Output voltage

for signal "1", min.L1 (-1.5 V) at maximum output current; L1 (-8.5 V) at minimum output current

Output current

for signal "1" rated value1 A

for signal "1" permissible range, min.10 mA

for signal "1" permissible range, max.15 A; max. 1 AC cycle

for signal "0" residual current, max.2 mA

Output delay with resistive load

"0" to "1", max.1 AC cycle

"1" to "0", max.1 AC cycle

Parallel switching of two outputs

for logic linksNo

for upratingNo

for redundant control of a loadYes

Switching frequency

with resistive load, max.10 Hz

with inductive load, max.0.5 Hz

on lamp load, max.1 Hz

Total current of the outputs

Current per channel, max.1 A; see additional description in the manual

Current per group, max.2 A; see additional description in the manual

Current per module, max.10 A; see additional description in the manual

Cable length

shielded, max.1 000 m

unshielded, max.600 m

Interrupts/diagnostics/status information

Diagnostics functionNo

Substitute values connectableYes

Alarms

Diagnostic alarmNo

Maintenance interruptYes; maintenance alarm for switching cycle counter

Diagnoses

Monitoring the supply voltageNo

Wire breakNo

Short-circuitNo

Diagnostics indication LED

RUN LEDYes; green LED

ERROR LEDYes; red LED

Monitoring of the supply voltage (PWR-LED)No

Channel status displayYes; green LED

for channel diagnosticsNo

for module diagnosticsYes; red LED

Potential separation channels

between the channelsNo

between the channels, in groups of2

between the channels and backplane busYes

Permissible potential difference

between different circuits250 V AC between the channels and the backplane bus; 500 V AC between the channels

Isolation

Isolation tested with3 100 V DC

Standards, approvals, certificates

Suitable for safety functionsNo

Ecological footprint

environmental product declarationYes

Global warming potential

— global warming potential, (total) [CO2 eq]43.8 kg

— global warming potential, (during production) [CO2 eq]9.5 kg

— global warming potential, (during operation) [CO2 eq]34.5 kg

— global warming potential, (after end of life cycle) [CO2 eq]-0.231 kg

Security

signed firmware updateNo

data integrityNo

Ambient temperature during operation

horizontal installation, min.-40 °C; = Tmin (incl. condensation/frost); start-up @ -25 °C

horizontal installation, max.70 °C; = Tmax; see Derating BasedOn (e.g. manual), additionally Tmax > 60 °C max. 4 A aggregate current per module, max. 0.25 A per output

vertical installation, min.-40 °C; = Tmin; Startup @ -25 °C

vertical installation, max.60 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.2 000 m

Ambient air temperature-barometric pressure-altitudeTmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m)

Relative humidity

With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation / frost (no commissioning in bedewed state), horizontal installation

Coolants and lubricants

— Resistant to commercially available coolants and lubricantsYes; Incl. diesel and oil droplets in the air

Use in stationary industrial systems

— to biologically active substances according to EN 60721-3-3Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request

— to chemically active substances according to EN 60721-3-3Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

— to mechanically active substances according to EN 60721-3-3Yes; Class 3S4 incl. sand, dust, *

Use on ships/at sea

— to biologically active substances according to EN 60721-3-6Yes; Class 6B2 mold and fungal spores (excluding fauna); Class 6B3 on request

— to chemically active substances according to EN 60721-3-6Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

— to mechanically active substances according to EN 60721-3-6Yes; Class 6S3 incl. sand, dust; *

Usage in industrial process technology

— Against chemically active substances acc. to EN 60654-4Yes; Class 3 (excluding trichlorethylene)

— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)

Remark

— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!

Conformal coating

Coatings for printed circuit board assemblies acc. to EN 61086Yes; Class 2 for high reliability

Protection against fouling acc. to EN 60664-3Yes; Type 1 protection

Military testing according to MIL-I-46058C, Amendment 7Yes; Discoloration of coating possible during service life

Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AYes; Conformal coating, Class A

Dimensions

Width35 mm

Height147 mm

Depth129 mm

Weights

Weight, approx.310 g
