How can I get a price quote for Siemens 5ST1010-0FP?

You can request a fast quote for Siemens 5ST1010-0FP from Yılsa Engineering. Reference part number YLSKK7NAGYYRUB. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 5ST1010-0FP in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 5ST1010-0FP genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 5ST1010-0FP?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

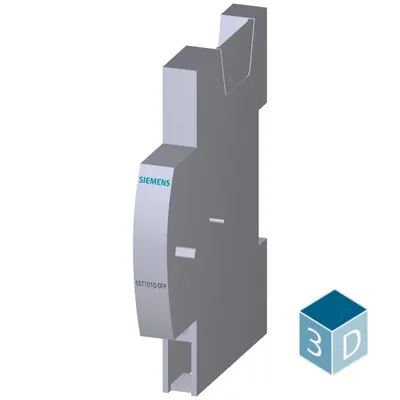

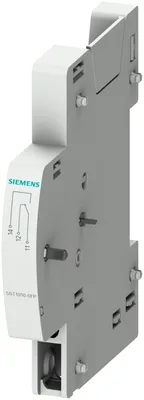

Siemens 5ST1010-0FP

Auxiliary switch 1 CO for RCBO 2/3/4P Un: 230/400V

SiemensMFR # 5ST1010-0FPSKU # YLSKK7NAGYYRUB

product brand nameSENTRON

product designationauxiliary switches

design of the productMountable

design of the product factory mountedNo

rated value230 V

at AC rated value minimum230 V

Have questions?Chat on WhatsApp

About This Product

Siemens 5ST1010-0FP (Auxiliary switch 1 CO for RCBO 2/3/4P Un: 230/400V) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Siemens 5ST1010-0FP — price, stock availability and technical specifications.

Siemens 5ST1010-0FP

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationauxiliary switches

design of the productMountable

design of the product factory mountedNo

Supply voltage

rated value230 V

at AC rated value minimum230 V

at AC rated value maximum400 V

at DC rated value minimum24 V

at DC rated value maximum250 V

protection class IPIP20

Breaking Capacity

switching capacity current rated value6 A

Control current

type of voltage of control voltageAC/DC

Product details

auxiliary switchYes

number of fault signal contacts0

number of NC contacts0

number of NO contacts0

number of CO contacts1

design of the auxiliary switch1 CO contact, 6 A, 230 V AC

product extension can be mounted5SU1...-.FP/FR/FN..

product extensionAuxiliary current switch

product function test function for fault current tripNo

Connections

maximum2.5 mm²

minimum0.6 N·m

maximum1 N·m

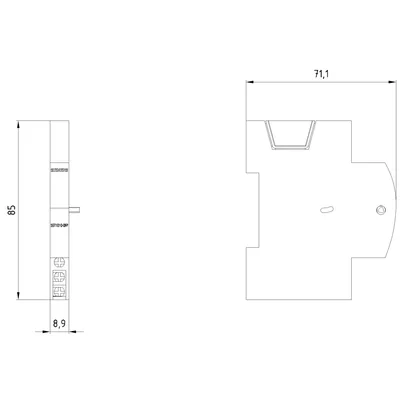

Mechanical Design

height85 mm

width9 mm

depth72 mm

number of modular width units1

Net Weight49 g

Environmental conditions

standardIEC/EN62019

minimum-25 °C

maximum60 °C

ambient temperature during storage minimum-40 °C

Accessories 5

Genuine accessories that can be used with the Siemens 5ST1010-0FP motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
