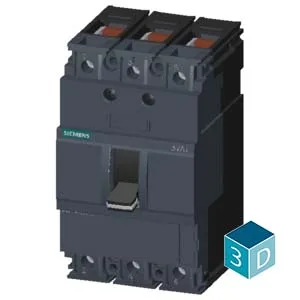

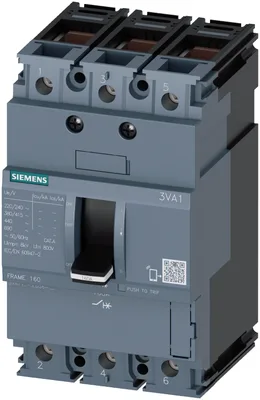

Siemens 3VA1112-5ED36-0AA0

circuit breaker 3VA1 IEC Frame 160 breaking capacity class M Icu=55 kA @ 415 V 3-pole, line protection TM210, FTFM, In=125 A overload protection Ir=125 A permanently set short-circuit protection Ii=10 x In terminal connection

SiemensMFR # 3VA1112-5ED36-0AA0SKU # CEY-8EF3B02C31EB

product brand nameSENTRON

product designationMolded case circuit breaker

design of the productLine protection

design of the overcurrent releaseTM210

number of poles3

insulation voltage / rated value800 V

Have questions?Chat on WhatsApp

About This Product

Siemens 3VA1112-5ED36-0AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationMolded case circuit breaker

design of the productLine protection

design of the overcurrent releaseTM210

protection function of the overcurrent releaseLI

number of poles3

General technical data

insulation voltage / rated value800 V

operating voltage / at DC / rated value500 V

operating voltage / at AC / rated value690 V

power loss [W] / maximum28.1 W

mechanical service life (operating cycles) / typical20 000

electrical endurance (operating cycles) / at AC-1 / at 380/415 V9 000

electrical endurance (operating cycles) / at AC-1 / at 690 V6 300

product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proofNo

ground-fault monitoring versionWithout

communication functionNo

other measurement functionNo

Net Weight1.065 kg

Current

at 40 °C125 A

at 45 °C125 A

at 50 °C125 A

at 55 °C122 A

at 60 °C120 A

at 65 °C117 A

at 70 °C114 A

Switching capacity according to IEC 60947

switching capacity class of the circuit breakerM

at 240 V85 kA

at 415 V55 kA

at 440 V36 kA

at 500 V10 kA

at 690 V10 kA

at 240 V85 kA

at 415 V55 kA

at 440 V36 kA

at 500 V5 kA

at 690 V5 kA

at 240 V187 kA

at 415 V121 kA

at 440 V75.6 kA

at 500 V17 kA

at 690 V17 kA

design of short-circuit protectionFor switching power values in DC networks, see the 3VA molded case circuit breaker device manual; link to be found under Service & Support in the last chapter

Adjustable parameters

product feature / for L-tripping / can be switched on/offNo

minimum125 A

maximum125 A

minimum1 s

maximum1 s

minimum1 250 A

maximum1 250 A

minimum0 A

maximum0 A

product function / grounding protectionNo

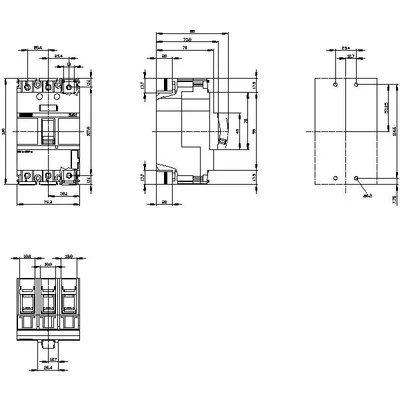

Mechanical Design

undervoltage releaseNo

voltage triggerNo

trip indicatorNo

height [in]5.12 in

height130 mm

width [in]3 in

type of connectable conductor cross-sections / of the round conductor terminal / stranded1 x (1,5 - 70 mm²)

width76.2 mm

depth [in]2.76 in

depth70 mm

Connections

arrangement of electrical connectors / for main current circuitFront terminal

type of electrical connection / for main current circuitbox terminal on both sides

design of the surface / of the connections / on the top of the switch (N, 1, 3, 5)Silver

design of the surface / of the connections / on the bottom of the switch (N, 2, 4, 6)Tin

Auxiliary circuit

number of CO contacts / for auxiliary contacts0

Accessories

product extension / optional / motor driveYes

Environmental conditions

protection class IP / on the frontIP40

during operation / minimum-25 °C

during operation / maximum70 °C

during storage / minimum-40 °C

during storage / maximum80 °C

Environmental footprint

Environmental Product Declaration(EPD)Yes

global warming potential [CO2 eq] / total190 kg

global warming potential [CO2 eq] / during manufacturing4.67 kg

global warming potential [CO2 eq] / during operation186 kg

global warming potential [CO2 eq] / after end of life-0.826 kg

reference code / according to IEC 81346-2Q
