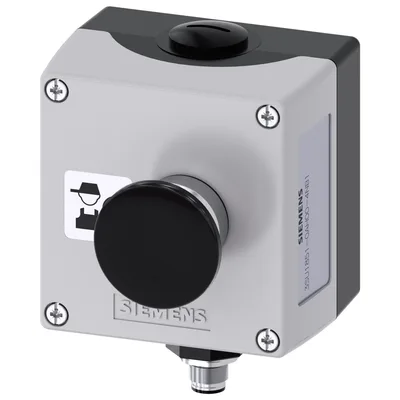

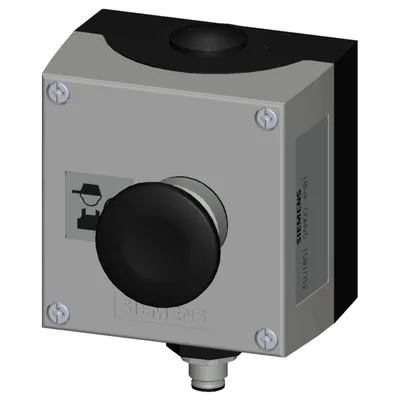

Siemens 3SU1851-0AH00-4NB1

enclosure for command devices, 22 mm, round, enclosure material metal, enclosure top part gray, 1 command point metal, A=mushroom pushbutton, black, 40 mm, momentary contact type, 1 NO, spring-loaded terminal, base mounting, silver label, black font, with graphic symbol: AUTOPLAY, M12 plug (5-pole) bottom, insulated reserve conductors label glued in

SiemensMFR # 3SU1851-0AH00-4NB1SKU # YLSM36LHEIL7YJ

product brand nameSIRIUS ACT

product designationEnclosures

product type designation3SU1

of supplied empty enclosure3SU1851-0AA00-0AB1

design of the housingwith recess for label

shape of the enclosure frontSquare

Have questions?Chat on WhatsApp

About This Product

Siemens 3SU1851-0AH00-4NB1

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS ACT

product designationEnclosures

product type designation3SU1

equipment of commanding and signaling deviceA = mushroom pushbutton

of supplied contact module at the command point A 13SU1400-2AA10-3BA0

of the supplied holder at the command point A3SU1550-0AA10-0AA0

of the supplied actuator at the command point A3SU1050-1BD10-0AA0

of supplied empty enclosure3SU1851-0AA00-0AB1

of the supplied accessories at the command point A3SU1900-0AF81-0AZ0 Q9Y

Enclosure

design of the housingwith recess for label

shape of the enclosure frontSquare

material of the enclosuremetal

number of command points1

EMERGENCY STOP deviceNo

protective collarNo

color of the enclosure top partgrey

as a kitNo

pre-wired on strip terminalYes

fastening method of the enclosureVertical

Actuator

design of the actuating elementmushromm pushbutton

suitability for use EMERGENCY OFF switchNo

product feature lockoutNo

product extension optional light sourceNo

color of the actuating elementblack

material of the actuating elementplastic

shape of the actuating elementround

number of contact modules1

type of unlocking deviceA = without

Front ring

product component front ringNo

Holder

material of the holderPlastic

Display

number of LED modules0

General technical data

positive openingNo

EMERGENCY OFF functionNo

EMERGENCY STOP functionNo

protection class IPIP66, IP67, IP69(IP69K)

degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13

according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms

for railway applications according to EN 61373Category 1, Class B

according to IEC 60068-2-610 ... 500 Hz: 5 g

for railway applications according to EN 61373Category 1, Class B

reference code according to IEC 81346-2S

continuous current of the C characteristic MCBfor a short-circuit current smaller than 400 A

continuous current of the quick DIAZED fuse link10 A

continuous current of the DIAZED fuse link gG10 A

Substance Prohibitance (day/month/year)07/01/2006

SVHC substance nameLead CAS-No. 7439-92-1

Net Weight552.38 g

— at 50 Hz rated value5 ... 500 V

— at 60 Hz rated value5 ... 500 V

at DC rated value5 ... 500 V

cable entry typeM12 plug, 5-pole

Communication/ Protocol

design of the interface for communicationwithout

Auxiliary circuit

design of the contact of auxiliary contactsSilver alloy

number of NC contacts for auxiliary contacts0

number of NO contacts for auxiliary contacts1

Connections/ Terminals

type of electrical connection of modules and accessoriesSpring-type terminal

type of electrical connection on enclosureM12 connector, 5-pole

tightening torque of the screws in the bracket1 ... 1.2 N·m

tightening torque of fixing screws in the enclosure cover1.5 ... 1.7 N·m

Ambient conditions

during operation-25 ... +70 °C

during storage-40 ... +80 °C

environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted for all devices behind front panel)

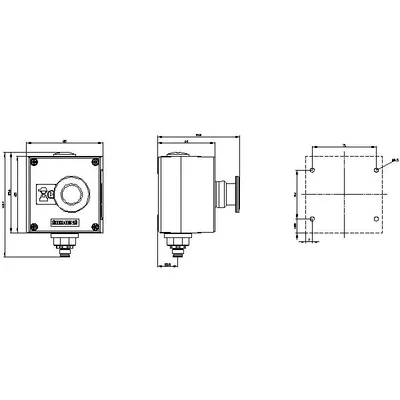

Installation/ mounting/ dimensions

fastening method of modules and accessoriesFloor mounting

height89.4 mm

width85 mm

depth75 mm

shape of the installation openinground

Accessories

number of labels1

color of the labelA = silver

number of inscription plates0

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing0.625 kg

global warming potential [CO2 eq] / during operation0.235 kg

global warming potential [CO2 eq] / after end of life-0.267 kg

global warming potential [CO2 eq] / total0.593 kg

Product information

EAN4047621049557

UPC804766520235

Product familyOrdering Data Overview

Life cycle statusActive

Commodity code85365080

Delivery and logistics

Country of originGermany

Standard delivery time3 Day/Days

ReturnableYes

Net weight0.55238 Kg

Packaging dimensions (L x W x H)133 x 93 x 132 MM

Standard package quantity1 Piece

Minimum order quantity1

Dangerous goodsNo

Export control regulationsAL : N / ECCN : N

Environment and compliance

RoHS conformitySince: 01-07-06

WEEE category5

REACH informationLead CAS-No. 7439-92-1 > 0,1 % (w / w)

SCIP number45d257ac-e52b-4c91-a2dc-3e0e00fa0b27

Siemens catalog

Product group5452

Catalog IDCC-IC10

Group codeR711

Product classStraightforward, can be reused over the short term

Accessories 6

Genuine accessories that can be used with the Siemens 3SU1851-0AH00-4NB1 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3SU1400-2AA10-3BA0	Bileşen · Commanding and signaling devices
3SU1050-1BD10-0AA0	Bileşen · Commanding and signaling devices
3SU1851-0AA00-0AB1	Bileşen · Commanding and signaling devices
3SU1550-0AA10-0AA0	Bileşen · Commanding and signaling devices
3SU1900-0AF81-0AZ0	Bileşen
3SU1900-0HG10-0AA0	Seçmeli zorunlu ürün · Commanding and signaling devices
