How can I get a price quote for Siemens 3SU1802-0NA00-2AB2?

You can request a fast quote for Siemens 3SU1802-0NA00-2AB2 from Yılsa Engineering. Reference part number YLSV4N52SNKCB. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3SU1802-0NA00-2AB2 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3SU1802-0NA00-2AB2 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3SU1802-0NA00-2AB2?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

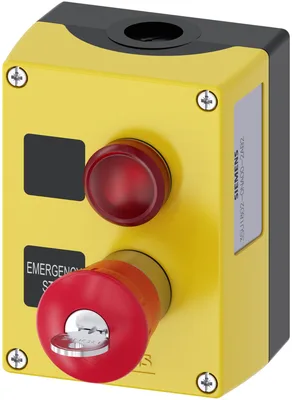

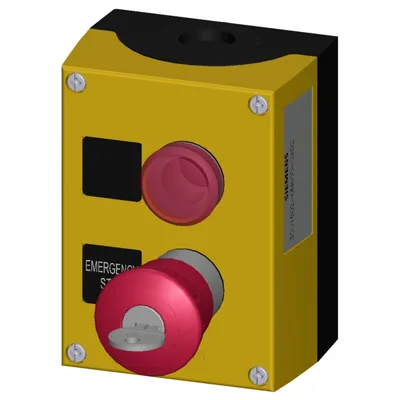

Siemens 3SU1802-0NA00-2AB2

enclosure for command devices 22 mm, round, enclosure material plastic, enclosure top part yellow, 2 command points plastic, B=indicator light, red, LED 24 V AC/DC, screw terminal, label without inscription, A=EMERGENCY STOP, 40 mm, RONIS SB30, label with inscription: EMERGENCY STOP, 1 NO, 1 NC, screw terminal, base mounting, 1x M20 each on top and bottom, labels enclosed

SiemensMFR # 3SU1802-0NA00-2AB2SKU # YLSV4N52SNKCB

product brand nameSIRIUS ACT

product designationEnclosures

product type designation3SU1

of supplied empty enclosure3SU1802-0AA00-0AB2

design of the housingwith recess for label

shape of the enclosure frontrectangular

Have questions?Chat on WhatsApp

About This Product

Siemens 3SU1802-0NA00-2AB2

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS ACT

product designationEnclosures

product type designation3SU1

equipment of commanding and signaling deviceA = EMERGENCY-STOP mushroom pushbutton, 40 mm, with positive latching acc. to ISO 13850 and rotate-to-unlatch mechanism, B = indicator light

of supplied contact module at the command point A 13SU1400-2AA10-1CA0

of supplied contact module at the command point A 23SU1400-2AA10-1BA0

of supplied LED module at the command point B3SU1401-2BB20-1AA0

of the supplied holder at the command point A3SU1550-0AA10-0AA0

of the supplied holder at the command point B3SU1550-0AA10-0AA0

of the supplied actuator at the command point A3SU1050-1HF20-0AA0

of the supplied actuator at the command point B3SU1051-6AA20-0AA0

of supplied empty enclosure3SU1802-0AA00-0AB2

of supplied support terminal at the command point A3SU1400-4DA43-1AA0

of the supplied accessories at the command point A3SU1900-0AF16-0AA0

of the supplied accessories at the command point B3SU1900-0AF16-0AA0

Enclosure

design of the housingwith recess for label

shape of the enclosure frontrectangular

material of the enclosureplastic

number of command points2

EMERGENCY STOP deviceYes

protective collarNo

color of the enclosure top partyellow

as a kitNo

pre-wired on strip terminalNo

fastening method of the enclosureVertical

Actuator

design of the actuating elementIndicator light / EMERGENCY STOP mushroom pushbutton

suitability for use EMERGENCY OFF switchYes

product feature lockoutNo

product extension optional light sourceYes

color of the actuating elementA = red / B = red

material of the actuating elementplastic

shape of the actuating elementround

number of contact modules2

type of unlocking deviceA = key-operated release / B = without

Front ring

product component front ringYes

design of the front ringStandard

material of the front ringMetal, high gloss

color of the front ringsilver

Holder

material of the holderPlastic

Display

number of LED modules1

General technical data

positive openingYes

EMERGENCY OFF functionYes

EMERGENCY STOP functionYes

protection class IPIP66, IP67, IP69(IP69K)

degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12K, 13

according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms

according to IEC 60068-2-610 ... 500 Hz: 5 g

reference code according to IEC 81346-2S

continuous current of the C characteristic MCB10 A; for a short-circuit current smaller than 400 A

continuous current of the quick DIAZED fuse link10 A

continuous current of the DIAZED fuse link gG10 A

Substance Prohibitance (day/month/year)10/01/2014

SVHC substance nameLead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1

Net Weight475.38 g

— at 50 Hz rated value24 V

— at 60 Hz rated value24 V

at DC rated value24 V

Communication/ Protocol

design of the interface for communicationwithout

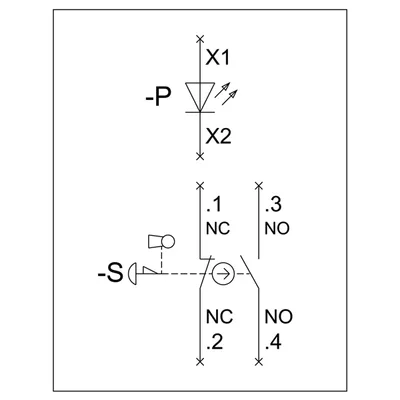

Auxiliary circuit

design of the contact of auxiliary contactsSilver alloy

number of NC contacts for auxiliary contacts1

number of NO contacts for auxiliary contacts1

Connections/ Terminals

type of electrical connection of modules and accessoriesScrew-type terminal

type of electrical connection on enclosureCable routing above and below, both 1 x M20

tightening torque of the screws in the bracket1 ... 1.2 N·m

tightening torque of fixing screws in the enclosure cover1.5 ... 1.7 N·m

tightening torque with screw-type terminals0.8 ... 0.9 N·m

Lamp

light intensity450 ... 1 120 mcd

Safety related data

product function suitable for safety functionYes

test wear-related service life necessaryYes

with low demand rate according to SN 3192020 %

with high demand rate per NC contact according to SN 3192020 %

B10 value with high demand rate according to SN 31920100 000

failure rate [FIT] with low demand rate per NC contact according to SN 31920100 FIT

ISO 13849

device type according to ISO 13849-13

IEC 61508

safety device type according to IEC 61508-2Type A

T1 value for proof test interval or service life according to IEC 6150820 a

Ambient conditions

during operation-25 ... +70 °C

during storage-40 ... +80 °C

environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted for all devices behind front panel)

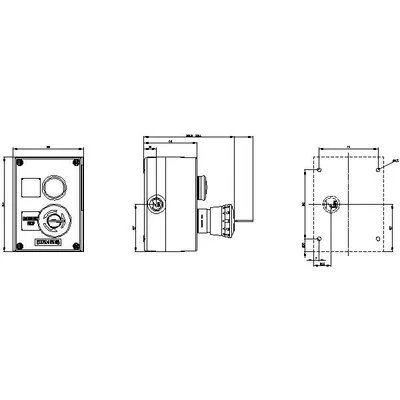

Installation/ mounting/ dimensions

fastening method of modules and accessoriesFloor mounting

height114 mm

width85 mm

depth109 mm

shape of the installation openinground

Accessories

number of labels2

marking of the name plate for command devicesA = "Emergency Stop" / B = without inscription

color of the labelA = black / B = black

number of inscription plates0

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing0.566 kg

global warming potential [CO2 eq] / during operation0.235 kg

global warming potential [CO2 eq] / after end of life-0.0145 kg

global warming potential [CO2 eq] / total0.787 kg

Product information

EAN4011209969360

UPC804766522222

Product familyPushbuttons and indicator lights in the enclosure

Life cycle statusActive

Commodity code85365080

Delivery and logistics

Country of originGermany

Standard delivery time5 Day/Days

ReturnableYes

Net weight0.47538 Kg

Packaging dimensions (L x W x H)130 x 95 x 130 MM

Standard package quantity1 Piece

Minimum order quantity1

Dangerous goodsNo

Export control regulationsAL : N / ECCN : N

Environment and compliance

RoHS conformitySince: 01-10-14

WEEE category5

REACH informationLead monoxide (lead oxide) CAS-No. 1317-36-8 > 0,1 % (w / w)

SCIP numberbbcd6e5d-e97c-47ea-adc6-77d72d04f1c1

Siemens catalog

Product group5454

Catalog IDCC-IC10

Group codeR711

Product classStraightforward, can be reused over the short term

Accessories 10

Genuine accessories that can be used with the Siemens 3SU1802-0NA00-2AB2 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3SU1900-0JQ10-0AA0	Aksesuar · Commanding and signaling devices
3SU1400-2AA10-1BA0	Bileşen · Commanding and signaling devices
3SU1400-2AA10-1CA0	Bileşen · Commanding and signaling devices
3SU1401-2BB20-1AA0	Bileşen · Commanding and signaling devices
3SU1050-1HF20-0AA0	Bileşen · Commanding and signaling devices
3SU1051-6AA20-0AA0	Bileşen · Commanding and signaling devices
3SU1900-0AF16-0AA0	Bileşen · Commanding and signaling devices
3SU1550-0AA10-0AA0	Bileşen · Commanding and signaling devices
3SU1802-0AA00-0AB2	Bileşen · Commanding and signaling devices
3SU1900-0HG10-0AA0	Seçmeli zorunlu ürün · Commanding and signaling devices
