How can I get a price quote for Siemens 3SU1051-6AA20-0AA0?

You can request a fast quote for Siemens 3SU1051-6AA20-0AA0 from Yılsa Engineering. Reference part number CEY-8EF3B032614A. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3SU1051-6AA20-0AA0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3SU1051-6AA20-0AA0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3SU1051-6AA20-0AA0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

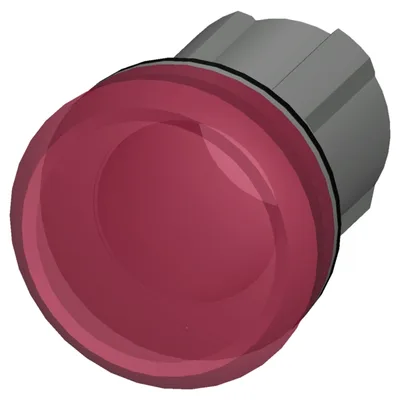

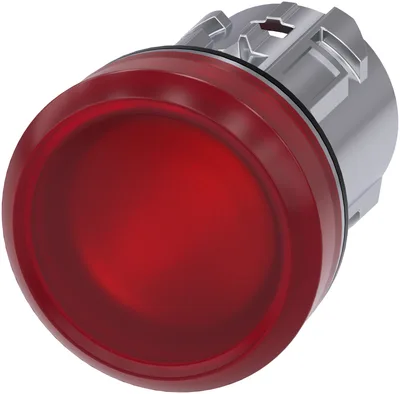

Siemens 3SU1051-6AA20-0AA0

Indicator lights, 22 mm, round, metal, shiny, red, lens, smooth

SiemensMFR # 3SU1051-6AA20-0AA0SKU # CEY-8EF3B032614A

product brand nameSIRIUS ACT

product designationIndicator lights

design of the productActuating/signaling element

product type designation3SU1

product lineMetal, shiny, 22 mm

light sourceYes

Have questions?Chat on WhatsApp

About This Product

Indicator lights, 22 mm, round, metal, shiny, red, lens, smooth

Siemens 3SU1051-6AA20-0AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS ACT

product designationIndicator lights

design of the productActuating/signaling element

product type designation3SU1

product lineMetal, shiny, 22 mm

Actuator

light sourceYes

contact moduleNo

of the actuating elementred

of the cover capred

material of the actuating elementmetal

shape of the actuating elementround

outer diameter of the actuating element29.45 mm

Front ring

product component front ringNo

material of the front ringplastic

color of the front ringblack

General technical data

protection class IPIP66, IP67, IP69(IP69K)

degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13

according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms

according to IEC 60068-2-610 ... 500 Hz: 5 g

reference code according to IEC 81346-2P

Substance Prohibitance (day/month/year)10/01/2014

Net Weight0.024 kg

Connections/ Terminals

tightening torque of the screws in the bracket1 ... 1.2 N·m

Ambient conditions

during operation-25 ... +70 °C

during storage-40 ... +80 °C

environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%)

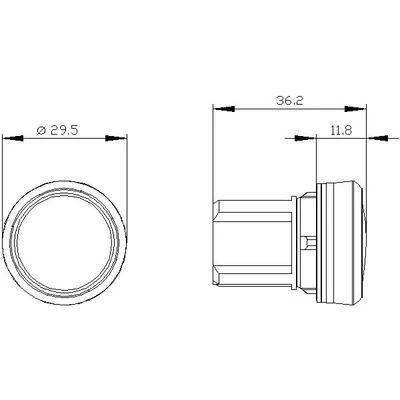

Installation/ mounting/ dimensions

height29.5 mm

width29.5 mm

shape of the installation openinground

mounting diameter22.3 mm

positive tolerance of installation diameter0.4 mm

mounting height11.8 mm

installation width29.5 mm

installation depth24.4 mm

Environmental footprint

Environmental Product Declaration(EPD)Yes

global warming potential [CO2 eq] total0.593 kg

global warming potential [CO2 eq] during manufacturing0.625 kg

global warming potential [CO2 eq] during operation0.235 kg

global warming potential [CO2 eq] after end of life-0.267 kg

Siemens eco profile (SEP)Siemens EcoTech

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing0.625 kg

global warming potential [CO2 eq] / during operation0.235 kg

global warming potential [CO2 eq] / after end of life-0.267 kg

global warming potential [CO2 eq] / total0.593 kg

Accessories 10

Genuine accessories that can be used with the Siemens 3SU1051-6AA20-0AA0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3SU1900-0AC81-0AA0	Aksesuar · Commanding and signaling devices
3SU1900-0AC16-0AA0	Aksesuar · Commanding and signaling devices
3SU1900-0AN10-0AA0	Aksesuar · Commanding and signaling devices
3SU1900-0AG10-0AA0	Aksesuar · Commanding and signaling devices
3SU1550-0AA10-0AA0	Zorunlu ek ürün · Commanding and signaling devices
3SU1400-1AA10-1BA0	Seçmeli zorunlu ürün · Commanding and signaling devices
3SU1400-1AA10-1CA0	Seçmeli zorunlu ürün · Commanding and signaling devices
3SU1401-1BH20-1AA0	Seçmeli zorunlu ürün · Commanding and signaling devices
3SU1401-1BB20-1AA0	Seçmeli zorunlu ürün · Commanding and signaling devices
3SU1401-1BF20-1AA0	Seçmeli zorunlu ürün · Commanding and signaling devices
