How can I get a price quote for Siemens 3SE6704-3BA?

You can request a fast quote for Siemens 3SE6704-3BA from Yılsa Engineering. Reference part number CEY-8EF3B032E30B. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3SE6704-3BA in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3SE6704-3BA genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3SE6704-3BA?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

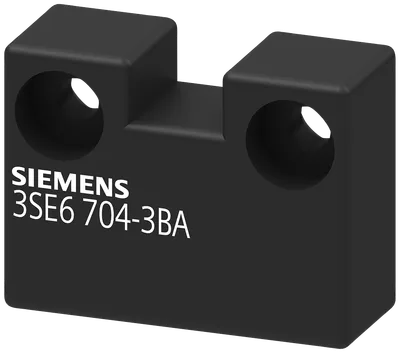

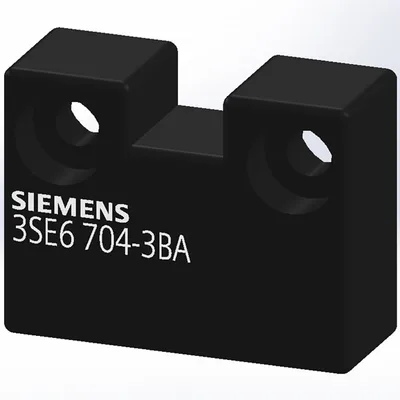

Siemens 3SE6704-3BA

Solenoid rectangular small

SiemensMFR # 3SE6704-3BASKU # CEY-8EF3B032E30B

product brand nameSIRIUS

product designationMagnetically operated switch

design of the productcoded magnet, rectangular

product type designation3SE67

positive openingNo

cross-circuit/short-circuit recognitionNo

Have questions?Chat on WhatsApp

About This Product

Siemens 3SE6704-3BA (Solenoid rectangular small) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Siemens 3SE6704-3BA — price, stock availability and technical specifications.

Siemens 3SE6704-3BA

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationMagnetically operated switch

design of the productcoded magnet, rectangular

product type designation3SE67

suitability for use safety-related circuitsYes

General technical data

positive openingNo

cross-circuit/short-circuit recognitionNo

protection class IPIP67

reference code according to IEC 81346-2S

Substance Prohibitance (day/month/year)07/01/2006

Net Weight0.018 kg

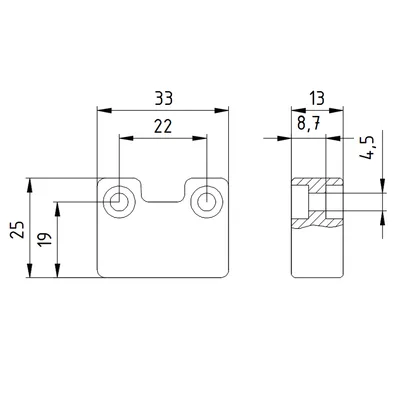

height of the sensor13 mm

length of the sensor33 mm

width of the sensor25 mm

Ambient conditions

ambient temperature during operation-25 ... +70 °C

number of NC contacts for auxiliary contacts0

number of NO contacts for auxiliary contacts0

Enclosure

design of the housingblock

material of the enclosureplastic

Display

evaluation unit requiredyes

Contact

switching frequency5 Hz

Installation/ mounting/ dimensions

fastening methodscrew fixing

Inputs/ Outputs

type of switching outputReed contacts

Safety related data

category according to EN 954-14

ISO 13849

performance level (PL) according to EN ISO 13849-1e

IEC 61508

Safety Integrity Level (SIL) according to IEC 615083

Accessories 8

Genuine accessories that can be used with the Siemens 3SE6704-3BA motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3SX3261	Aksesuar · Miscellaneous accessories · spacers
3SE6605-3BA	Seçmeli zorunlu ürün · Non-contact safety switch
3SE6605-3BA05	Seçmeli zorunlu ürün · Non-contact safety switch
3SE6605-3BA10	Seçmeli zorunlu ürün · Non-contact safety switch
3SE6605-3BA15	Seçmeli zorunlu ürün · Non-contact safety switch
3SE6605-3BA25	Seçmeli zorunlu ürün · Non-contact safety switch
3SE6605-3BA03	Seçmeli zorunlu ürün · Non-contact safety switch
3SE6606-3BA	Seçmeli zorunlu ürün · Non-contact safety switch
