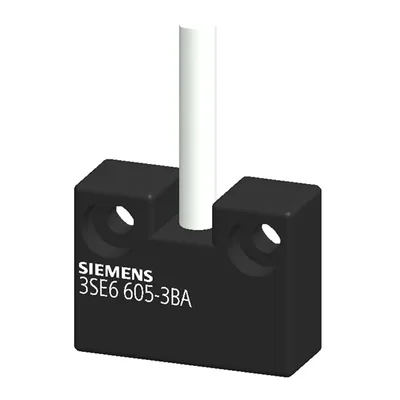

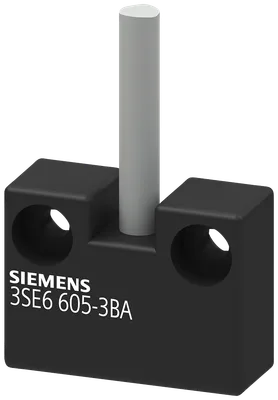

Siemens 3SE6605-3BA

magnetically operated switch contact block contact block, rectangular small 25 x 33 mm, contact elements 1 NO+1 NC, with 3 m cable

SiemensMFR # 3SE6605-3BASKU # CEY-8EF3B0314503

product brand nameSIRIUS

product designationMagnetically operated switch

design of the productRectangular sensor unit

product type designation3SE66

positive openingNo

cross-circuit/short-circuit recognitionYes

Have questions?Chat on WhatsApp

About This Product

magnetically operated switch contact block contact block, rectangular small 25 x 33 mm, contact elements 1 NO+1 NC, with 3 m cable

Siemens 3SE6605-3BA

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationMagnetically operated switch

design of the productRectangular sensor unit

product type designation3SE66

suitability for use safety-related circuitsYes

General technical data

positive openingNo

cross-circuit/short-circuit recognitionYes

type of voltage of the operating voltageDC

protection class IPIP67

shock resistance according to IEC 60068-2-27Sinusoidal half-wave 30 g / 11 ms

vibration resistance according to IEC 60068-2-610 ... 55 Hz: 1 mm

reference code according to IEC 81346-2S

Substance Prohibitance (day/month/year)07/01/2006

SVHC substance nameLead CAS-No. 7439-92-1

Net Weight0.151 kg

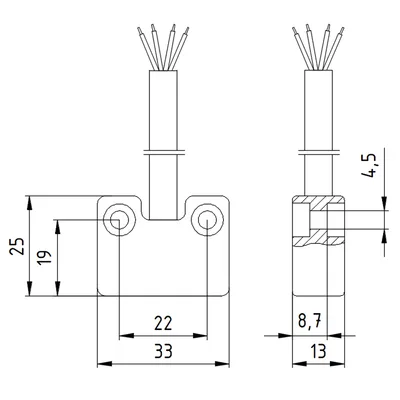

height of the sensor13 mm

length of the sensor33 mm

width of the sensor25 mm

material of the active sensor areaplastic

Ambient conditions

ambient temperature during operation-25 ... +70 °C

Control circuit/ Control

type of voltageDC

operating voltage rated value24 V

operational current rated value100 mA

operating power rated value1 W

number of NC contacts for auxiliary contacts1

number of NO contacts for auxiliary contacts1

Enclosure

design of the housingblock

material of the enclosureplastic

material of cable sheathPVC

Actuator

design of the actuating elementmagnet

Display

evaluation unit requiredyes

Contact

circuit principlereed switches

switching frequency5 Hz

assured operating distance OFF14 mm

assured operating distance ON4 mm

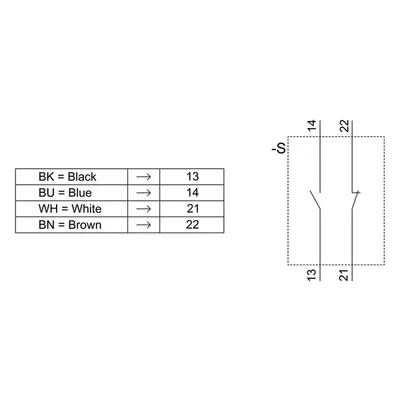

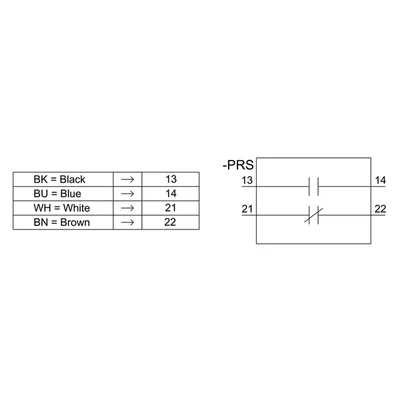

design of the switching functionNC contact and NO contact

Installation/ mounting/ dimensions

fastening methodscrew fixing

Connections/ Terminals

type of electrical connectioncable

wire length3 m

Inputs/ Outputs

type of switching outputReed contacts

Safety related data

category according to EN 954-14

ISO 13849

performance level (PL) according to EN ISO 13849-1e

IEC 61508

Safety Integrity Level (SIL) according to IEC 615083
