How can I get a price quote for Siemens 3SE5114-1CH60-1AF3?

You can request a fast quote for Siemens 3SE5114-1CH60-1AF3 from Yılsa Engineering. Reference part number CEY-8EF3B0391C75. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3SE5114-1CH60-1AF3 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3SE5114-1CH60-1AF3 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3SE5114-1CH60-1AF3?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

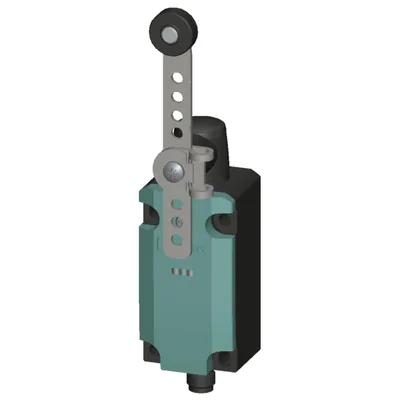

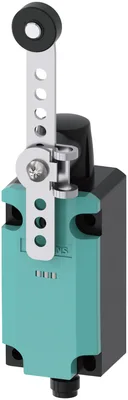

Siemens 3SE5114-1CH60-1AF3

position switch, 3SE5114 metal enclosure 40 mm with twist lever adjustable length with grid hole EN 50041, 1 NO/1 NC quick action contacts with M12 plug, 5-pole, fixed with 2 LEDs, yellow/green, 24 V DC pin assignment: Pin1=21, Pin2=22 Pin 3=13 + LED green, Pin 4=14 and LED yellow, Pin 5=ground LED

SiemensMFR # 3SE5114-1CH60-1AF3SKU # CEY-8EF3B0391C75

product brand nameSIRIUS

product designationMechanical position switches

product type designation3SE5

of the supplied basic switch3SE5114-1CA00-0AF3

of the supplied operating lever3SE5000-0AA60

of the supplied switching contacts3SE5000-0CA00

Have questions?Chat on WhatsApp

About This Product

Siemens 3SE5114-1CH60-1AF3

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationMechanical position switches

product type designation3SE5

of the supplied basic switch3SE5114-1CA00-0AF3

of the supplied actuator head for position switches3SE5000-0AH00

of the supplied operating lever3SE5000-0AA60

of the supplied switching contacts3SE5000-0CA00

General technical data

product function positive openingYes

insulation voltage rated value125 V

degree of pollutionclass 3

surge voltage resistance rated value0.8 kV

protection class IPIP66/IP67

according to IEC 60068-2-2730 g / 11 ms

vibration resistance according to IEC 60068-2-60.35 mm/5 g

mechanical service life (operating cycles) typical15 000 000

thermal current4 A

material of the enclosure of the switch headplastic

reference code according to IEC 81346-2B

continuous current of the C characteristic MCB1 A; for a short-circuit current smaller than 400 A

continuous current of the quick DIAZED fuse link4 A; for a short-circuit current smaller than 400 A

continuous current of the DIAZED fuse link gG4 A

active principlemechanical

repeat accuracy0.05 mm

operating resource protection classIII (according to EN 60536)

Substance Prohibitance (day/month/year)07/01/2006

SVHC substance nameLead CAS-No. 7439-92-1

Net Weight0.343 kg

minimum actuating torque in directions of actuation0.25 N·m

length of the sensor206 mm

width of the sensor40 mm

Ambient conditions

during operation-25 ... +60 °C

during storage-40 ... +90 °C

explosion protection category for dustnone

Main circuit

design of the switching contactmechanical

number of NC contacts for auxiliary contacts1

number of NO contacts for auxiliary contacts1

at 24 V rated value3 A

Enclosure

design of the housingblock, narrow

material of the enclosuremetal

coating of the enclosurecathodic dip coating

design of the housing according to standardYes

Drive Head

design of the actuating elementAdjustable twist lever, adjustable-length metal lever with latching, plastic roller 19 mm

standard-compliant actuator headEN 50041, design A

shape of the switch headroller

design of the switching functionpositive opening

circuit principlesnap-action contacts

number of switching contacts safety-related1

cable entry typeM12 plug

design of plug-in connectionM12 plug, 5-pole: Pin 1 = terminal 21, Pin 2 = 22, Pin 3 = 13/LED green, Pin 4 = 14/LED yelow, Pin 5 = ground LED

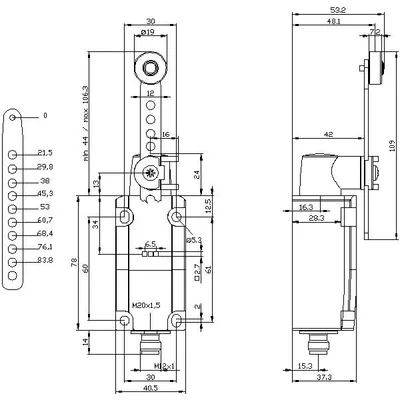

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew fixing

Connections/ Terminals

type of electrical connectionM12 plug, fixed

solid1x (0.5 ... 1.5 mm²), 2x (0.5 ... 0.75 mm²)

finely stranded with core end processing1x (0.5 ... 1.5 mm²), 2x (0.5 ... 0.75 mm²)

for AWG cables solid1x (20 ... 16), 2x (20 ... 18)

for AWG cables stranded1x (20 ... 16), 2x (20 ... 18)

Supply voltage

type of voltage of the supply voltage of the optional LED displayDC

24 V

design of the interface for safety-related communicationwithout

Communication/ Protocol

design of the interfacewithout

Safety related data

product function suitable for safety functionYes

service life maximum20 a

test wear-related service life necessaryYes

with low demand rate according to SN 3192020 %

with high demand rate according to SN 3192020 %

B10 value with high demand rate according to SN 319201 000 000

failure rate [FIT] with low demand rate according to SN 31920100 FIT

ISO 13849

device type according to ISO 13849-13

IEC 61508

safety device type according to IEC 61508-2A

Accessories 6

Genuine accessories that can be used with the Siemens 3SE5114-1CH60-1AF3 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3SY3027	Aksesuar · Miscellaneous accessories · base plates
3SY3110	Aksesuar · Miscellaneous accessories · laminations
3SE5000-0CA00	Bileşen
3SE5000-0AH00	Bileşen
3SE5000-0AA60	Bileşen
3SX5100-1SS05	Bileşen
