How can I get a price quote for Siemens 3SB2404-0C?

You can request a fast quote for Siemens 3SB2404-0C from Yılsa Engineering. Reference part number CEY-8EF3B0332EFF. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3SB2404-0C in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3SB2404-0C genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3SB2404-0C?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

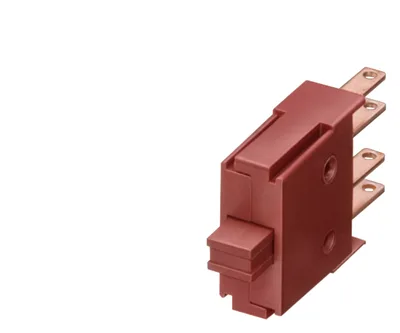

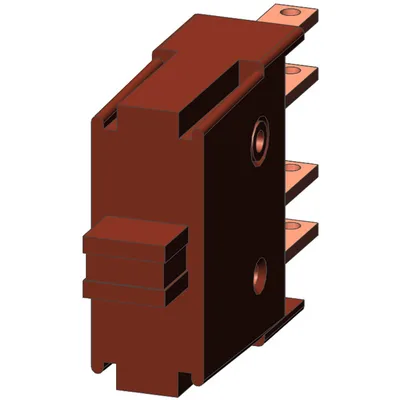

Siemens 3SB2404-0C

Contact block, 1 NC, flat connector terminal

SiemensMFR # 3SB2404-0CSKU # CEY-8EF3B0332EFF

product brand nameSIRIUS

product designationcontact block

product type designation3SB2

number of lampholders0

product function positive openingYes

suitability for integrationpushbutton / selector button

Have questions?Chat on WhatsApp

About This Product

Siemens 3SB2404-0C (Contact block, 1 NC, flat connector terminal) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Siemens 3SB2404-0C — price, stock availability and technical specifications.

Siemens 3SB2404-0C

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationcontact block

product type designation3SB2

Contact block/ lampholder

number of lampholders0

General technical data

product function positive openingYes

suitability for integrationpushbutton / selector button

of the operating voltageAC/DC

of the enclosureIP40

of the terminalIP00

vibration resistance according to IEC 60068-2-620 ... 200 Hz: 5 g

reference code according to IEC 81346-2S

Substance Prohibitance (day/month/year)07/01/2006

Net Weight3.497 g

— at 50 Hz rated value5 ... 230 V

— at 60 Hz rated value5 ... 230 V

at DC rated value5 ... 230 V

Auxiliary circuit

number of NC contacts for auxiliary contacts1

number of NO contacts for auxiliary contacts0

number of CO contacts for auxiliary contacts0

at 24 V rated value10 A

at 60 V rated value10 A

at 110 V rated value10 A

at 230 V rated value10 A

at 24 V rated value4 A

at 110 V rated value4 A

at 230 V rated value4 A

at 24 V rated value6 A

at 60 V rated value5 A

at 110 V rated value2.5 A

at 230 V rated value1 A

at 24 V rated value3 A

at 60 V rated value1.2 A

at 110 V rated value0.7 A

at 230 V rated value0.3 A

Connections/ Terminals

type of electrical connectiontab terminals

Ambient conditions

during operation-25 ... +70 °C

during storage-40 ... +80 °C

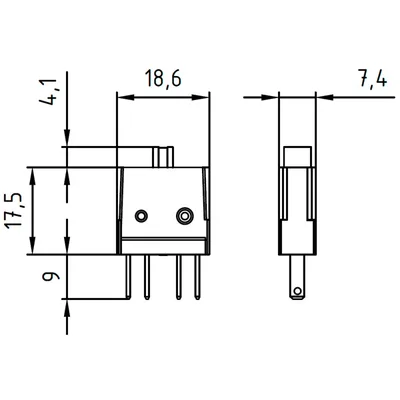

Installation/ mounting/ dimensions

fastening methodclip-on

height19 mm

width8 mm

depth31 mm

Accessories 8

Genuine accessories that can be used with the Siemens 3SB2404-0C motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3SB2304-2A	Uyumlu ürün
3SB2304-2F	Uyumlu ürün
3SB2304-2H	Uyumlu ürün
3SB2908-0AB	Uyumlu ürün
3SB2908-8AA	Seçmeli zorunlu ürün
3SB2908-8AE	Seçmeli zorunlu ürün
3SB2908-8AB	Seçmeli zorunlu ürün
3SB2908-8AD	Seçmeli zorunlu ürün
