How can I get a price quote for Siemens 3SB2304-2F?

You can request a fast quote for Siemens 3SB2304-2F from Yılsa Engineering. Reference part number CEY-8EF3B0392672. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3SB2304-2F in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3SB2304-2F genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3SB2304-2F?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

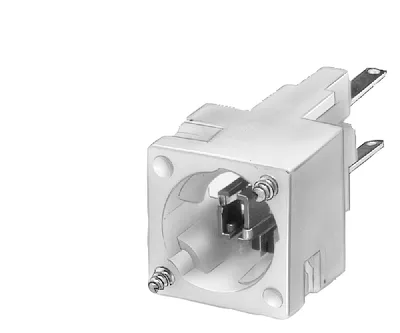

Siemens 3SB2304-2F

Lampholder, Wedge base W2 x 4.6 d, with incandescent lamp 6 V, with holder

SiemensMFR # 3SB2304-2FSKU # CEY-8EF3B0392672

product brand nameSIRIUS

product designationlampholder

product type designation3SB2

socket designW2 x 4.6d

number of lampholders1

product function EMERGENCY STOP functionNo

Have questions?Chat on WhatsApp

About This Product

Lampholder, Wedge base W2 x 4.6 d, with incandescent lamp 6 V, with holder

Siemens 3SB2304-2F

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationlampholder

product type designation3SB2

Contact block/ lampholder

socket designW2 x 4.6d

number of lampholders1

General technical data

product function EMERGENCY STOP functionNo

diodeNo

lamp transformerNo

light sourceYes

series resistorNo

suitability for integrationfront element

of the enclosureIP00

of the terminalIP00

vibration resistance according to IEC 60068-2-620 ... 200 Hz: 5 g

reference code according to IEC 81346-2P

Substance Prohibitance (day/month/year)07/01/2006

Net Weight7.988 g

— at 50 Hz rated value5 ... 60 V

— at 60 Hz rated value5 ... 60 V

at DC rated value5 ... 60 V

Supply voltage

type of voltage of the supply voltage of the light sourceAC/DC

at 50 Hz rated value6 V

at 60 Hz rated value6 V

supply voltage 1 of the light source at DC rated value6 V

Auxiliary circuit

number of NC contacts for auxiliary contacts0

number of NO contacts for auxiliary contacts0

number of CO contacts for auxiliary contacts0

at 24 V rated value3 A

Connections/ Terminals

type of electrical connectiontab terminals

Lamp

type of light sourcefilament lamp

color of the light sourceclear

Ambient conditions

during operation-25 ... +60 °C

during storage-40 ... +80 °C

Installation/ mounting/ dimensions

fastening methodfront plate mounting

height19 mm

width19 mm

depth46 mm

Accessories 24

Genuine accessories that can be used with the Siemens 3SB2304-2F motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3SB2908-2AB	Aksesuar
3SB2404-0B	Seçmeli zorunlu ürün
3SB2404-0C	Seçmeli zorunlu ürün
3SB2404-0D	Seçmeli zorunlu ürün
3SB2908-8AA	Seçmeli zorunlu ürün
3SB2908-8AE	Seçmeli zorunlu ürün
3SB2908-8AB	Seçmeli zorunlu ürün
3SB2908-8AD	Seçmeli zorunlu ürün
3SB2908-1AD	Seçmeli zorunlu ürün
3SB2908-1AF	Seçmeli zorunlu ürün
3SB2908-1AE	Seçmeli zorunlu ürün
3SB2908-1AA	Seçmeli zorunlu ürün
3SB2908-1AB	Seçmeli zorunlu ürün
3SB2908-1AC	Seçmeli zorunlu ürün
3SB3901-1UB	Seçmeli zorunlu ürün
3SB3901-1TB	Seçmeli zorunlu ürün
3SB3901-1TE	Seçmeli zorunlu ürün
3SB3901-1SE	Seçmeli zorunlu ürün
3SB3901-1VE	Seçmeli zorunlu ürün
3SB3901-1RE	Seçmeli zorunlu ürün
3SB3901-1RB	Seçmeli zorunlu ürün
3SB2908-1BD	Seçmeli zorunlu ürün
3SB3901-1UE	Seçmeli zorunlu ürün
3SB3901-1SB	Seçmeli zorunlu ürün
