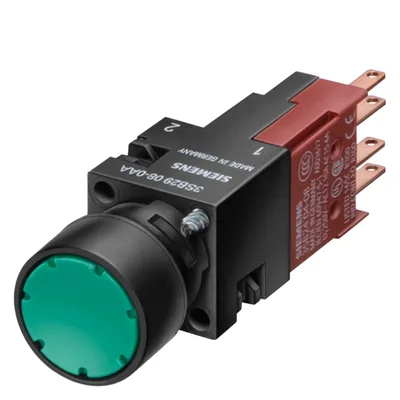

Siemens 3SB2226-0AH01

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 3SB2226-0AH01

Illuminated pushbutton, 16 mm, round, plastic, clear, pushbutton, flat, 1 NO, Lampholder W2 x 4.6 d, with incandescent lamp 24 V

SiemensMFR # 3SB2226-0AH01SKU # CEY-8EF3B031C6C3
product brand nameSIRIUS
product designationIlluminated pushbuttons
design of the productComplete unit round
product type designation3SB2
number of command points1
design of the actuating elementIlluminated pushbutton
Share
Have questions?Chat on WhatsApp

About This Product

Illuminated pushbutton, 16 mm, round, plastic, clear, pushbutton, flat, 1 NO, Lampholder W2 x 4.6 d, with incandescent lamp 24 V

Siemens 3SB2226-0AH01

  • Genuine, certified Siemens product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS
product designationIlluminated pushbuttons
design of the productComplete unit round
product type designation3SB2
Enclosure
number of command points1
Actuator
design of the actuating elementIlluminated pushbutton
principle of operation of the actuating elementmomentary contact type
product extension optional light sourceYes
color of the actuating elementclear
material of the actuating elementplastic
shape of the actuating elementFlat pushbutton
type of unlocking devicewithout
number of switching positions2
Front ring
product component front ringYes
design of the front ringStandard
material of the front ringplastic
color of the front ringblack
Holder
material of the holderPlastic
Contact block/ lampholder
socket designW2 x 4.6d with lamp
number of lampholders1
number of switching elements1
General technical data
positive openingNo
EMERGENCY STOP functionNo
product component light sourceYes
type of voltage of the operating voltageAC/DC
protection class IPIP65
vibration resistance according to IEC 60068-2-620 ... 200 Hz: 5 g
operating frequency maximum1 000 1/h
mechanical service life (operating cycles) typical3 000 000
reference code according to IEC 81346-2S
Substance Prohibitance (day/month/year)07/01/2006
Net Weight0.017 kg
operating voltage rated value5 ... 60 V
Supply voltage
of the light sourceAC/DC
at 50 Hz rated value24 V
at 60 Hz rated value24 V
supply voltage 1 of the light source at DC rated value24 V
relative negative tolerance of the supply voltage-15 %
relative positive tolerance of the supply voltage10 %
Auxiliary circuit
number of NC contacts for auxiliary contacts0
number of NO contacts for auxiliary contacts1
number of CO contacts for auxiliary contacts0
consumed current for rated value of supply voltage maximum40 mA
at 24 V rated value10 A
at 60 V rated value10 A
at 110 V rated value10 A
at 230 V rated value10 A
at 24 V rated value4 A
at 110 V rated value4 A
at 230 V rated value4 A
at 24 V rated value6 A
at 60 V rated value5 A
at 110 V rated value2.5 A
at 230 V rated value1 A
at 24 V rated value3 A
at 60 V rated value1.2 A
at 110 V rated value0.7 A
at 230 V rated value0.3 A
Connections/ Terminals
type of electrical connectiontab terminals
tightening torque of the screws in the bracket maximum0.4 N·m
Ambient conditions
during operation-25 ... +60 °C
during storage-40 ... +80 °C
environmental category during operation according to IEC 607213K6
Installation/ mounting/ dimensions
fastening methodfront plate mounting
shape of the installation openinground
mounting diameter16 mm
mounting height8 mm
installation width19 mm
installation depth50 mm

Accessories 81

Genuine accessories that can be used with the Siemens 3SB2226-0AH01 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part noDescriptionCompatible motors
3SB2902-0AAAksesuar
3SB2404-0BAksesuar
3SB2404-0CAksesuar
3SB2404-0DAksesuar
3SB2908-3AAAksesuar
3SB2902-0ABAksesuar
3SB2901-4RHAksesuar
3SB2901-4AGAksesuar
3SB2901-4EMAksesuar
3SB2901-4RGAksesuar
3SB2901-4RJAksesuar
3SB2901-4RKAksesuar
3SB2901-4ADAksesuar
3SB2901-4ABAksesuar
3SB2901-4ACAksesuar
3SB2901-4ELAksesuar
3SB2901-4EKAksesuar
3SB2901-4EBAksesuar
3SB2901-4ENAksesuar
3SB2901-4ANAksesuar
3SB2901-4ALAksesuar
3SB2901-4AKAksesuar
3SB2901-4AEAksesuar
3SB2901-4AFAksesuar
3SB2901-4AJAksesuar
3SB2901-4AHAksesuar
3SB2901-4AQAksesuar
3SB2901-4RFAksesuar
3SB2901-4REAksesuar
3SB2901-4RDAksesuar
3SB2901-4RCAksesuar
3SB2901-4RAAksesuar
3SB2901-4PEAksesuar
3SB2901-4PDAksesuar
3SB2901-4PBAksesuar
3SB2901-4PAAksesuar
3SB2901-4MBAksesuar
3SB2901-4RBAksesuar
3SB2901-4MDAksesuar
3SB2901-4NGAksesuar
3SB2901-4NEAksesuar
3SB2901-4NCAksesuar
3SB2901-4MCAksesuar
3SB2901-4NBAksesuar
3SB2901-4NDAksesuar
3SB2901-4NAAksesuar
3SB2901-4QGAksesuar
3SB2901-4QJAksesuar
3SB2901-4QKAksesuar
3SB2901-4QLAksesuar
3SB2901-4QBAksesuar
3SB2901-4QCAksesuar
3SB2901-4QFAksesuar
3SB2901-4QEAksesuar
3SB2910-0BDBileşen
3SB2910-0BHBileşen
3SB2910-0CCBileşen
3SB2910-0CFBileşen
3SB2910-0CEBileşen
3SB2910-0DCBileşen
3SB2910-0DDBileşen
3SB2910-0CDBileşen
3SB2910-0BCBileşen
3SB2910-0AGBileşen
3SB2910-0AHBileşen
3SB2910-0AFBileşen
3SB2910-0AEBileşen
3SB2910-0ACBileşen
3SB2910-0ABBileşen
3SB2908-1AFBileşen
3SB2908-1AEBileşen
3SB2908-1ADBileşen
3SB2908-1ACBileşen
3SB2908-1ABBileşen
3SB2908-1AABileşen
3SB2910-0BBBileşen
3SB2910-0ADBileşen
3SB2908-8AESeçmeli zorunlu ürün
3SB2908-8AASeçmeli zorunlu ürün
3SB2908-8ABSeçmeli zorunlu ürün
3SB2908-8ADSeçmeli zorunlu ürün
