How can I get a price quote for Siemens 3SB2000-4PB01?

You can request a fast quote for Siemens 3SB2000-4PB01 from Yılsa Engineering. Reference part number CEY-8EF3B031D985. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3SB2000-4PB01 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3SB2000-4PB01 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3SB2000-4PB01?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

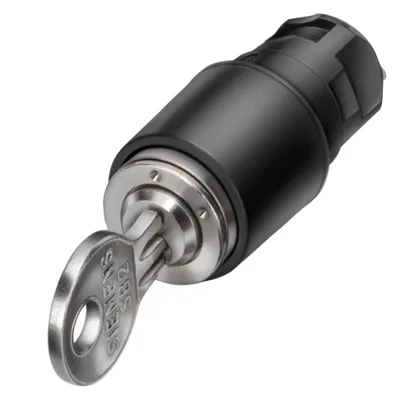

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 3SB2000-4PB01

keyswitch, 16 mm, round, plastic, CES, SB2, 3 switch positions I-O-II, latching, actuating angle 2 x 62 degrees key removal I+O+II, possible special locks: SB3, SB4, SB5

SiemensMFR # 3SB2000-4PB01SKU # CEY-8EF3B031D985

product brand nameSIRIUS

product designationKey-operated switches

design of the productSingle device round

product type designation3SB2

number of command points1

design of the actuating elementKey-operated switch

Have questions?Chat on WhatsApp

About This Product

keyswitch, 16 mm, round, plastic, CES, SB2, 3 switch positions I-O-II, latching, actuating angle 2 x 62 degrees key removal I+O+II, possible special locks: SB3, SB4, SB5

Siemens 3SB2000-4PB01

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationKey-operated switches

design of the productSingle device round

product type designation3SB2

Enclosure

number of command points1

Actuator

design of the actuating elementKey-operated switch

principle of operation of the actuating elementlatching

product extension optional light sourceNo

material of the actuating elementplastic

outer diameter of the actuating element19 mm

type of unlocking devicekey unlatching

number of switching positions3

switch position for key distractionI+O+II

clockwise62°

anticlockwise62°

lock makeCES

Front ring

product component front ringYes

design of the front ringStandard

material of the front ringplastic

color of the front ringblack

Holder

material of the holderPlastic

General technical data

EMERGENCY OFF functionNo

EMERGENCY STOP functionNo

protection class IPIP65

vibration resistance according to IEC 60068-2-620 ... 200 Hz: 5 g

operating frequency maximum1 000 1/h

mechanical service life (operating cycles) typical300 000

reference code according to IEC 81346-2S

Substance Prohibitance (day/month/year)07/01/2006

Net Weight0.033 kg

Connections/ Terminals

tightening torque of the screws in the bracket maximum0.4 N·m

Ambient conditions

during operation-25 ... +70 °C

during storage-40 ... +80 °C

environmental category during operation according to IEC 607213K6

Installation/ mounting/ dimensions

fastening methodfront plate mounting

shape of the installation openinground

mounting diameter16 mm

mounting height20 mm

installation width19 mm

installation depth50 mm

Accessories 9

Genuine accessories that can be used with the Siemens 3SB2000-4PB01 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3SB2902-0AA	Aksesuar
3SB2908-3AA	Aksesuar
3SB2902-0AB	Aksesuar
3SB2908-2AJ	Bileşen
3SB2304-2A	Seçmeli zorunlu ürün
3SB2304-2F	Seçmeli zorunlu ürün
3SB2304-2H	Seçmeli zorunlu ürün
3SB2908-0AA	Seçmeli zorunlu ürün
3SB2908-0AB	Seçmeli zorunlu ürün
