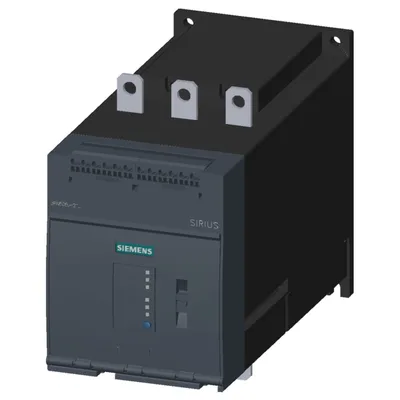

Siemens 3RW5056-2TB14

SIRIUS soft starter 200-480 V 171 A, 110-250 V AC spring-loaded terminals thermistor input

SiemensMFR # 3RW5056-2TB14SKU # YLS2IYKMRYUKWUR

product brand nameSIRIUS

product categoryHybrid switching devices

product designationSoft starter

product type designation3RW50

of standard HMI module usable3RW5980-0HS00

of high feature HMI module usable3RW5980-0HF00

Have questions?Chat on WhatsApp

About This Product

SIRIUS soft starter 200-480 V 171 A, 110-250 V AC spring-loaded terminals thermistor input

Siemens 3RW5056-2TB14

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product categoryHybrid switching devices

product designationSoft starter

product type designation3RW50

of standard HMI module usable3RW5980-0HS00

of high feature HMI module usable3RW5980-0HF00

of communication module PROFINET standard usable3RW5980-0CS00

of communication module PROFIBUS usable3RW5980-0CP00

of communication module Modbus TCP usable3RW5980-0CT00

of communication module Modbus RTU usable3RW5980-0CR00

of communication module Ethernet/IP3RW5980-0CE00

of circuit breaker usable at 400 V3VA2220-7MN32-0AA0; Type of assignment 1, Iq = 20 kA

of circuit breaker usable at 500 V3VA2220-7MN32-0AA0; Type of assignment 1, Iq = 20 kA

of the gG fuse usable up to 690 V3NA3244-6; Type of coordination 1, Iq = 65 kA

of full range R fuse link for semiconductor protection usable up to 690 V3NE1 230-0; Type of coordination 2, Iq = 65 kA

of back-up R fuse link for semiconductor protection usable up to 690 V3NE3 335; Type of coordination 2, Iq = 65 kA

of line contactor usable up to 480 V3RT1056

of line contactor usable up to 690 V3RT1064

General technical data

starting voltage [%]30 ... 100 %

stopping voltage [%]50 %; non-adjustable

start-up ramp time of soft starter0 ... 20 s

ramp-down time of soft starter0 ... 20 s

current limiting value [%] adjustable130 ... 700 %

CE markingYes

UL approvalYes

CSA approvalYes

HMI-High FeatureNo

is supported HMI-StandardYes

is supported HMI-High FeatureYes

product feature integrated bypass contact systemYes

number of controlled phases2

for main current circuit100 ms

for control circuit100 ms

insulation voltage rated value600 V

degree of pollution3, acc. to IEC 60947-4-2

impulse voltage rated value6 kV

blocking voltage of the thyristor maximum1 400 V

service factor1

surge voltage resistance rated value6 kV

between main and auxiliary circuit600 V

shock resistance15 g / 11 ms, from 12 g / 11 ms with potential contact lifting

vibration resistance15 mm to 6 Hz; 2 g to 500 Hz

utilization category according to IEC 60947-4-2AC-53a

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)09/23/2019

SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1

Net Weight5.261 kg

ramp-up (soft starting)Yes

soft stoppingYes

Soft TorqueYes

adjustable current limitationYes

pump stopYes

intrinsic device protectionYes

motor overload protectionYes; Full motor protection (thermistor motor protection and electronic motor overload protection)

evaluation of thermistor motor protectionYes; Type A PTC or Klixon / Thermoclick

auto-RESETYes

manual RESETYes

remote resetYes; By turning off the control supply voltage

communication functionYes

operating measured value displayYes; Only in conjunction with special accessories

error logbookYes; Only in conjunction with special accessories

via software parameterizableNo

via software configurableYes

PROFIenergyYes; in connection with the PROFINET Standard communication module

voltage rampYes

torque controlNo

analog outputNo

Power Electronics

at 40 °C rated value171 A

at 50 °C rated value153 A

at 60 °C rated value141 A

rated value200 ... 480 V

relative negative tolerance of the operating voltage-15 %

relative positive tolerance of the operating voltage10 %

at 230 V at 40 °C rated value45 kW

at 400 V at 40 °C rated value90 kW

Operating frequency 1 rated value50 Hz

Operating frequency 2 rated value60 Hz

relative negative tolerance of the operating frequency-10 %

relative positive tolerance of the operating frequency10 %

at rotary coding switch on switch position 181 A

at rotary coding switch on switch position 287 A

at rotary coding switch on switch position 393 A

at rotary coding switch on switch position 499 A

at rotary coding switch on switch position 5105 A

at rotary coding switch on switch position 6111 A

at rotary coding switch on switch position 7117 A

at rotary coding switch on switch position 8123 A

at rotary coding switch on switch position 9129 A

at rotary coding switch on switch position 10135 A

at rotary coding switch on switch position 11141 A

at rotary coding switch on switch position 12147 A

at rotary coding switch on switch position 13153 A

at rotary coding switch on switch position 14159 A

at rotary coding switch on switch position 15165 A

at rotary coding switch on switch position 16171 A

minimum81 A

minimum load [%]15 %; Relative to smallest settable Ie

at 40 °C after startup29 W

at 50 °C after startup23 W

at 60 °C after startup20 W

at 40 °C during startup1 751 W

at 50 °C during startup1 478 W

at 60 °C during startup1 308 W

type of the motor protectionElectronic, tripping in the event of thermal overload of the motor

Control circuit/ Control

type of voltage of the control supply voltageAC

at 50 Hz110 ... 250 V

at 60 Hz110 ... 250 V

relative negative tolerance of the control supply voltage at AC at 50 Hz-15 %

relative positive tolerance of the control supply voltage at AC at 50 Hz10 %

relative negative tolerance of the control supply voltage at AC at 60 Hz-15 %

relative positive tolerance of the control supply voltage at AC at 60 Hz10 %

control supply voltage frequency50 ... 60 Hz

relative negative tolerance of the control supply voltage frequency-10 %

relative positive tolerance of the control supply voltage frequency10 %

control supply current in standby mode rated value30 mA

holding current in bypass operation rated value80 mA

inrush current by closing the bypass contacts maximum2.5 A

inrush current peak at application of control supply voltage maximum12.2 A

duration of inrush current peak at application of control supply voltage2.2 ms

design of the overvoltage protectionVaristor

design of short-circuit protection for control circuit4 A gG fuse (Icu=1 kA), 6 A quick-acting fuse (Icu=1 kA), C1 miniature circuit breaker (Icu= 600 A), C6 miniature circuit breaker (Icu= 300 A); Is not part of scope of supply

Inputs/ Outputs

number of digital inputs1

number of digital outputs3

not parameterizable2

digital output version2 normally-open contacts (NO) / 1 changeover contact (CO)

number of analog outputs0

at AC-15 at 250 V rated value3 A

at DC-13 at 24 V rated value1 A

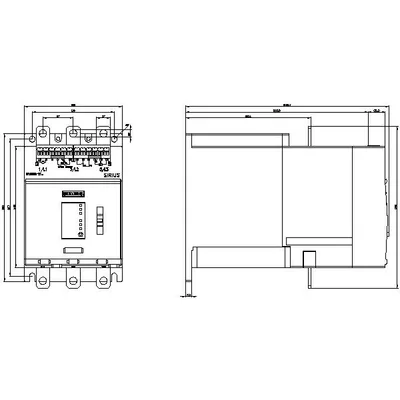

Installation/ mounting/ dimensions

mounting positionwith vertical mounting surface +/-90° rotatable, with vertical mounting surface +/- 22.5° tiltable to the front and back

fastening methodscrew fixing

height198 mm

width120 mm

depth249 mm

forwards10 mm

backwards0 mm

upwards100 mm

downwards75 mm

at the side5 mm

weight without packaging5.2 kg

Connections/ Terminals

for main current circuitbusbar connection

for control circuitspring-loaded terminals

width of connection bar maximum25 mm

with conductor cross-section = 0.5 mm² maximum50 m

with conductor cross-section = 1.5 mm² maximum150 m

with conductor cross-section = 2.5 mm² maximum250 m

using the front clamping point solid16 ... 120 mm²

using the front clamping point finely stranded with core end processing16 ... 120 mm²

using the front clamping point finely stranded without core end processing10 ... 120 mm²

using the front clamping point stranded16 ... 70 mm²

using the back clamping point solid16 ... 120 mm²

r box terminal using the back clamping point6 ... 250 kcmil

using both clamping points solidmax. 1x 95 mm², 1x 120 mm²

using both clamping points finely stranded with core end processingmax. 1x 95 mm², 1x 120 mm²

using both clamping points finely stranded without core end processingmax. 1x 95 mm², 1x 120 mm²

using both clamping points strandedmax. 2x 120 mm²

using the back clamping point finely stranded with core end processing16 ... 120 mm²

using the back clamping point finely stranded without core end processing10 ... 120 mm²

using the back clamping point stranded16 ... 120 mm²

for AWG cables for main current circuit solid4 ... 250 kcmil

for DIN cable lug for main contacts stranded16 ... 95 mm²

for DIN cable lug for main contacts finely stranded25 ... 120 mm²

for control circuit solid2x (0.25 ... 1.5 mm²)

for control circuit finely stranded with core end processing2x (0.25 ... 1.5 mm²)

for AWG cables for control circuit solid2x (24 ... 16)

for AWG cables for control circuit finely stranded with core end processing2x (24 ... 16)

between soft starter and motor maximum800 m

at the digital inputs at AC maximum1 000 m

for main contacts with screw-type terminals10 ... 14 N·m

for auxiliary and control contacts with screw-type terminals0.8 ... 1.2 N·m

for main contacts with screw-type terminals89 ... 124 lbf·in

for auxiliary and control contacts with screw-type terminals7 ... 10.3 lbf·in

Ambient conditions

installation altitude at height above sea level maximum5 000 m

during operation-25 ... +60 °C; Please observe derating at temperatures of 40 °C or above

during storage and transport-40 ... +80 °C

during operation according to IEC 607213K6 (no ice formation, only occasional condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6

during storage according to IEC 607211K6 (only occasional condensation), 1C2 (no salt mist), 1S2 (sand must not get inside the devices), 1M4

during transport according to IEC 607212K2, 2C1, 2S1, 2M2 (max. fall height 0.3 m)

Electromagnetic compatibility

EMC emitted interferenceacc. to IEC 60947-4-2: Class A

Communication/ Protocol

PROFINET standardYes

EtherNet/IPYes

Modbus RTUYes

Modbus TCPYes

PROFIBUSYes

UL/CSA ratings

— usable for Standard Faults at 460/480 V according to ULSiemens type: 3VA5225, max. 250 A; Iq = 10 kA

— usable for High Faults at 460/480 V according to ULSiemens type: 3VA52, max. 250 A; Iq max = 65 kA

— usable for Standard Faults up to 575/600 V according to ULType: Class RK5 / K5, max. 400 A; Iq = 10 kA

— usable for High Faults up to 575/600 V according to ULType: Class J, max. 350 A; Iq = 100 kA

at 200/208 V at 50 °C rated value50 hp

at 220/230 V at 50 °C rated value50 hp

at 460/480 V at 50 °C rated value100 hp

Electrical Safety

protection class IP on the front according to IEC 60529IP00; IP20 with cover

touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front with cover

ATEX

Safety Integrity Level (SIL) according to IEC 61508 relating to ATEXSIL 1

PFHD with high demand rate according to IEC 61508 relating to ATEX9E-6 1/h

PFDavg with low demand rate according to IEC 61508 relating to ATEX0.09

hardware fault tolerance according to IEC 61508 relating to ATEX0

T1 value for proof test interval or service life according to IEC 61508 relating to ATEX3 a

ATEXYes

IECExYes

UKEXYes

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing31.2 kg

global warming potential [CO2 eq] / during sales0.945 kg

global warming potential [CO2 eq] / during operation316 kg

global warming potential [CO2 eq] / after end of life-2.75 kg

global warming potential [CO2 eq] / total345 kg

Accessories 16

Genuine accessories that can be used with the Siemens 3RW5056-2TB14 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3RW5980-0HS00	Aksesuar · HMI modules
3RT2900-1SB20	Aksesuar · Miscellaneous accessories · labeling plates
3RT1956-4EA1	Aksesuar · Terminal covers · terminal covers
3RW5985-0FC00	Aksesuar · Fan covers
3RT1956-4G	Aksesuar · Terminal covers · box terminal blocks
3RT1955-4G	Aksesuar · Terminal covers · box terminal blocks
3VA2220-7MN32-0AA0	Seçmeli zorunlu ürün
3NA3244-6	Seçmeli zorunlu ürün
3NE1230-0	Seçmeli zorunlu ürün
3NE3335	Seçmeli zorunlu ürün
3RW5980-0HF00	Seçmeli zorunlu ürün · HMI modules
3RW5980-0CP00	Seçmeli zorunlu ürün · Communication modules
3RW5980-0CR00	Seçmeli zorunlu ürün · Communication modules
3RW5980-0CS00	Seçmeli zorunlu ürün · Communication modules
3RW5980-0CT00	Seçmeli zorunlu ürün · Communication modules
3RW5980-0CE00	Seçmeli zorunlu ürün · Communication modules
