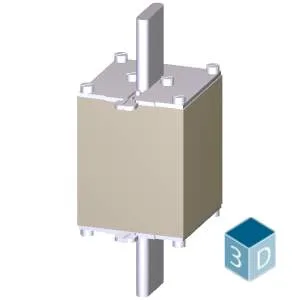

Siemens 3NE1230-0

SITOR fuse link, with blade contacts, NH1, In: 315 A, gS, Un AC: 690 V, Un DC: 250 V, front indicator

SiemensMFR # 3NE1230-0SKU # YLS87QW39PEQZBG

product brand nameSENTRON

product designationSITOR fuse link

design of the productwith blade contacts without slots

design of an identification indicatorfront indicator

design of the fuse linkSITOR, LV HRC design

operating class of the fuse linkgS

Have questions?Chat on WhatsApp

About This Product

SITOR fuse link, with blade contacts, NH1, In: 315 A, gS, Un AC: 690 V, Un DC: 250 V, front indicator

Siemens 3NE1230-0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationSITOR fuse link

design of the productwith blade contacts without slots

design of an identification indicatorfront indicator

design of the switching contactwith blade contacts for mounting in LV HRC fuse bases or switch disconnectors

design of the fuse linkSITOR, LV HRC design

General technical data

size of fuse system according to EN 60269-1NH1

operating class of the fuse linkgS

varying load factor (WL)1

type of voltage of the operating voltageAC/DC

operating voltage at AC according to UL rated value690 V

Supply voltage

at AC690 V

at DC250 V

Breaking Capacity

according to IEC 60947-2 rated value100 kA

Dissipation

power loss [W]38 W

for rated value of the current at AC in hot operating state per pole38 W

maximum38 W

Product details

product descriptionwith blade contacts, silver-plated

accessories includedno

Mechanical Design

mounting positionAny, preferably vertical

Net Weight574 g

Environmental conditions

minimum-20 °C

maximum50 °C

environmental category-20 to +50 at 95% relative humidity

Accessories 9

Genuine accessories that can be used with the Siemens 3NE1230-0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3KF4340-0MF51	Uyumlu ürün
3NJ4131-3BF01	Uyumlu ürün · Fuse switch disconnectors
3NJ4131-3BF11	Uyumlu ürün · Fuse switch disconnectors
3NJ4133-3BF01	Uyumlu ürün · Fuse switch disconnectors
3NJ4133-3BF11	Uyumlu ürün · Fuse switch disconnectors
3NJ4133-3BJ01	Uyumlu ürün · Fuse switch disconnectors
3NJ4133-3BT01	Uyumlu ürün · Fuse switch disconnectors
3NJ4133-3CF01	Uyumlu ürün · Fuse switch disconnectors
3NJ4133-3CF11	Uyumlu ürün · Fuse switch disconnectors
