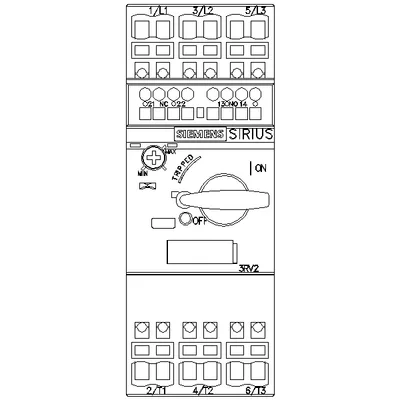

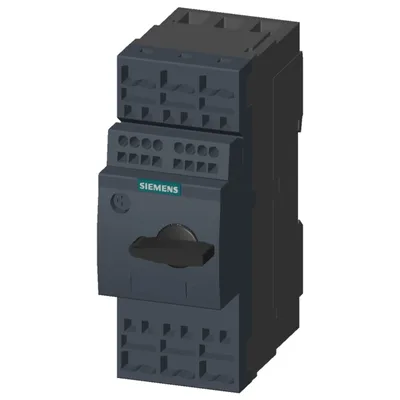

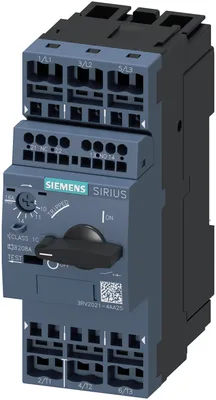

Siemens 3RV2021-4AA25

circuit breaker frame size S0 for motor protection, Class 10 thermal release 10...16 A short-circuit release 208 A spring-loaded terminal standard switching capacity with transverse auxiliary switch 1 NO+1 NC

SiemensMFR # 3RV2021-4AA25SKU # CEY-8EF3B02FF502

product brand nameSIRIUS

product designationCircuit breaker

design of the productFor motor protection

product type designation3RV2

size of the circuit-breakerS0

product extension auxiliary switchYes

Have questions?Chat on WhatsApp

About This Product

Siemens 3RV2021-4AA25

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationCircuit breaker

design of the productFor motor protection

product type designation3RV2

General technical data

Product equipment of circuit breaker for motor protection complete unit with protection deviceYes

size of the circuit-breakerS0

size of contactor can be combined company-specificS00, S0

product function disconnector functionalityYes

product extension auxiliary switchYes

at AC in hot operating state9.25 W

at AC in hot operating state per pole3.1 W

type of calculation of power loss current-dependentquadratic

insulation voltage with degree of pollution 3 at AC rated value690 V

surge voltage resistance rated value6 kV

in networks with ungrounded star point between main and auxiliary circuit400 V

in networks with grounded star point between main and auxiliary circuit400 V

on the front according to IEC 60529IP20

on the frontIP20

of the terminalIP20

shock resistance according to IEC 60068-2-2725g / 11 ms

of the main contacts typical100 000

of auxiliary contacts typical100 000

electrical endurance (operating cycles) typical100 000

reference code according to IEC 81346-2Q

continuous current rated value16 A

Substance Prohibitance (day/month/year)10/01/2009

Net Weight405.6 g

Ambient conditions

installation altitude at height above sea level maximum2 000 m

during operation-20 ... +60 °C

during storage-50 ... +80 °C

during transport-50 ... +80 °C

temperature compensation-20 ... +60 °C

relative humidity during operation10 ... 95 %

Main circuit

number of poles for main current circuit3

adjustable current response value current of the current-dependent overload release10 ... 16 A

type of voltage for main current circuitAC

rated value690 V

rated value20 ... 690 V

at AC-3 rated value maximum690 V

at AC-3e rated value maximum690 V

operating frequency rated value50 ... 60 Hz

operational current rated value16 A

at AC-3 at 400 V rated value16 A

at AC-3e at 400 V rated value16 A

— at 230 V rated value4 kW

— at 400 V rated value7.5 kW

— at 500 V rated value7.5 kW

— at 690 V rated value11 kW

— at 230 V rated value4 kW

— at 400 V rated value7.5 kW

— at 500 V rated value7.5 kW

— at 690 V rated value11 kW

at AC-3 maximum15 1/h

at AC-3e maximum15 1/h

Auxiliary circuit

design of the auxiliary switchtransverse

type of voltage for auxiliary and control circuitAC/DC

number of NC contacts for auxiliary contacts1

number of NO contacts for auxiliary contacts1

number of CO contacts for auxiliary contacts0

at 24 V2 A

at 120 V0.5 A

at 125 V0.5 A

at 230 V0.5 A

at 24 V1 A

at 60 V0.15 A

Protective and monitoring functions

ground fault detectionNo

phase failure detectionYes

trip classCLASS 10

design of the overload releasethermal

protection function thermal overload protection (ANSI 49)Yes

at AC at 240 V rated value100 kA

at AC at 400 V rated value55 kA

at AC at 500 V rated value10 kA

at AC at 690 V rated value4 kA

at 240 V rated value100 kA

at 400 V rated value25 kA

at 500 V rated value5 kA

at 690 V rated value2 kA

response value current of instantaneous short-circuit trip unit208 A

UL/CSA ratings

at 480 V rated value16 A

at 600 V rated value16 A

— at 110/120 V rated value1 hp

— at 230 V rated value2 hp

— at 200/208 V rated value3 hp

— at 220/230 V rated value5 hp

— at 460/480 V rated value10 hp

contact rating of auxiliary contacts according to ULC300 / R300

UL File Number (CCN)E47705 (NLRV, NLRV7), E156943 (NKJH, NKJH7)

Short-circuit protection

product function short circuit protectionYes

design of the short-circuit tripmagnetic

for short-circuit protection of the auxiliary switch requiredFuse gL/gG: 10 A, miniature circuit breaker C 6 A (short-circuit current Ik < 400 A)

at 400 VgL/gG 63 A

at 500 VgL/gG 50 A

at 690 VgL/gG 40 A

certificate of suitability according to ATEX directive 2014/34/EUDMT 02 ATEX F 001

type of protection according to ATEX directive 2014/34/EUEx II (2) GD

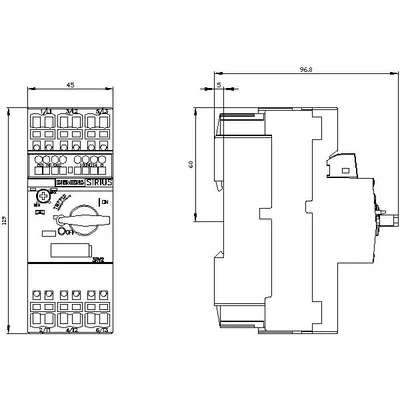

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715

Mounting method of circuit breaker for Transformer protection, Generator protection and system protection optional standard bar mountingYes

height119 mm

width45 mm

depth97 mm

— forwards0 mm

— backwards0 mm

— upwards50 mm

— downwards50 mm

— at the side0 mm

— forwards0 mm

— backwards0 mm

— upwards50 mm

— at the side30 mm

— downwards50 mm

— forwards0 mm

— backwards0 mm

— upwards50 mm

— downwards50 mm

— at the side30 mm

— downwards30 mm

— upwards30 mm

— at the side9 mm

— downwards30 mm

— upwards30 mm

— at the side9 mm

— downwards30 mm

— upwards30 mm

— at the side9 mm

— downwards30 mm

— upwards30 mm

— at the side9 mm

— downwards50 mm

— upwards50 mm

— backwards0 mm

— at the side30 mm

— forwards0 mm

— downwards50 mm

— upwards50 mm

— backwards0 mm

— at the side30 mm

— forwards0 mm

Connections/ Terminals

product component removable terminal for auxiliary and control circuitNo

for main current circuitspring-loaded terminals

for auxiliary and control circuitspring-loaded terminals

arrangement of electrical connectors for main current circuitTop and bottom

— solid or stranded2x (1 ... 10 mm²)

— finely stranded with core end processing2x (1 ... 6 mm²)

— finely stranded without core end processing2x (1 ... 6 mm²)

for AWG cables for main contacts2x (18 ... 8)

solid or stranded1 ... 10 mm²

finely stranded with core end processing1 ... 6 mm²

finely stranded without core end processing1 ... 6 mm²

solid or stranded0.5 ... 2.5 mm²

finely stranded with core end processing0.5 ... 1.5 mm²

finely stranded without core end processing0.5 ... 1.5 mm²

— solid or stranded2x (0.5 ... 2.5 mm²)

— finely stranded with core end processing2x (0.5 ... 1.5 mm²)

— finely stranded without core end processing2x (0.5 ... 1.5 mm²)

for AWG cables for auxiliary contacts2x (20 ... 14)

AWG number as coded connectable conductor cross section for main contacts18 ... 8

AWG number as coded connectable conductor cross section for auxiliary contacts20 ... 14

design of screwdriver shaftDiameter 3 mm

size of the screwdriver tip3,0 x 0,5 mm

Safety related data

product function suitable for safety functionYes

safety-related switching onNo

safety-related switching OFFYes

service life maximum10 a

test wear-related service life necessaryYes

with low demand rate according to SN 3192040 %

with high demand rate according to SN 3192050 %

B10 value with high demand rate according to SN 319205 000

failure rate [FIT] with low demand rate according to SN 3192050 FIT

ISO 13849

device type according to ISO 13849-13

overdimensioning according to ISO 13849-2 necessaryYes

IEC 61508

safety device type according to IEC 61508-2Type A

for proof test interval or service life according to IEC 6150810 a

Electrical Safety

protection class IP on the front according to IEC 60529IP20

touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front

Display

display version for switching statusHandle

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing2.68 kg

global warming potential [CO2 eq] / during sales0.143 kg

global warming potential [CO2 eq] / during operation72.7 kg

global warming potential [CO2 eq] / after end of life-0.445 kg

global warming potential [CO2 eq] / total75.078 kg
