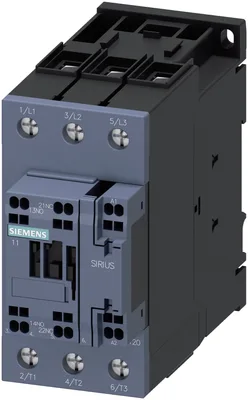

Siemens 3RT2036-3KB40

power contactor, AC-3e/AC-3, 51 A, 22 kW / 400 V, 3-pole, 24 V DC, 0.8-1.2* Uc, with integrated varistor, auxiliary contacts: 1 NO + 1 NC, main circuit: screw terminal, control and auxiliary circuit: spring-loaded terminal, frame size: S2, suitable for PLC outputs

SiemensMFR # 3RT2036-3KB40SKU # CEY-8EF3B0393BB4

product brand nameSIRIUS

product designationPower contactor

product type designation3RT2

size of contactorS2

function module for communicationNo

auxiliary switchYes

Have questions?Chat on WhatsApp

About This Product

Siemens 3RT2036-3KB40

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationPower contactor

product type designation3RT2

General technical data

size of contactorS2

function module for communicationNo

auxiliary switchYes

at AC in hot operating state12 W

at AC in hot operating state per pole4 W

without load current share typical1 W

type of calculation of power loss current-dependentquadratic

of main circuit with degree of pollution 3 rated value690 V

of auxiliary circuit with degree of pollution 3 rated value690 V

of main circuit rated value6 kV

of auxiliary circuit rated value6 kV

maximum permissible voltage for protective separation between coil and main contacts according to EN 60947-1400 V

at DC7.7 g / 5 ms, 4.5 g / 10 ms

at DC12 g / 5 ms, 7 g / 10 ms

of contactor typical10 000 000

of the contactor with added electronically optimized auxiliary switch block typical5 000 000

of the contactor with added auxiliary switch block typical10 000 000

reference code according to IEC 81346-2Q

Substance Prohibitance (day/month/year)10/01/2014

SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8

Net Weight1.077 kg

Ambient conditions

installation altitude at height above sea level maximum2 000 m

during operation-25 ... +60 °C

during storage-55 ... +80 °C

relative humidity minimum10 %

relative humidity at 55 °C according to IEC 60068-2-30 maximum95 %

Main circuit

number of poles for main current circuit3

number of NO contacts for main contacts3

number of NC contacts for main contacts0

at AC-3 rated value maximum690 V

at AC-3e rated value maximum690 V

at AC-1 at 400 V at ambient temperature 40 °C rated value70 A

— up to 690 V at ambient temperature 40 °C rated value70 A

— up to 690 V at ambient temperature 60 °C rated value60 A

— at 400 V rated value51 A

— at 500 V rated value51 A

— at 690 V rated value24 A

— at 400 V rated value51 A

— at 500 V rated value51 A

— at 690 V rated value24 A

at AC-4 at 400 V rated value41 A

at AC-5a up to 690 V rated value61.6 A

at AC-5b up to 400 V rated value41.5 A

— up to 230 V for current peak value n=20 rated value43.2 A

— up to 400 V for current peak value n=20 rated value43.2 A

— up to 500 V for current peak value n=20 rated value43.2 A

— up to 690 V for current peak value n=20 rated value24 A

— up to 230 V for current peak value n=30 rated value28.8 A

— up to 400 V for current peak value n=30 rated value28.8 A

— up to 500 V for current peak value n=30 rated value28.8 A

— up to 690 V for current peak value n=30 rated value24 A

minimum cross-section in main circuit at maximum AC-1 rated value25 mm²

at 400 V rated value24 A

at 690 V rated value20 A

— at 24 V rated value55 A

— at 60 V rated value23 A

— at 110 V rated value4.5 A

— at 220 V rated value1 A

— at 440 V rated value0.4 A

— at 600 V rated value0.25 A

— at 24 V rated value55 A

— at 60 V rated value45 A

— at 110 V rated value45 A

— at 220 V rated value5 A

— at 440 V rated value1 A

— at 600 V rated value0.8 A

— at 24 V rated value55 A

— at 60 V rated value55 A

— at 110 V rated value55 A

— at 220 V rated value45 A

— at 440 V rated value2.9 A

— at 600 V rated value1.4 A

— at 24 V rated value35 A

— at 60 V rated value6 A

— at 220 V rated value1 A

— at 440 V rated value0.1 A

— at 600 V rated value0.06 A

— at 24 V rated value55 A

— at 60 V rated value45 A

— at 110 V rated value25 A

— at 220 V rated value5 A

— at 440 V rated value0.27 A

— at 600 V rated value0.16 A

— at 24 V rated value55 A

— at 60 V rated value55 A

— at 110 V rated value55 A

— at 220 V rated value25 A

— at 440 V rated value0.6 A

— at 600 V rated value0.35 A

at AC-2 at 400 V rated value22 kW

— at 230 V rated value15 kW

— at 400 V rated value22 kW

— at 500 V rated value30 kW

— at 690 V rated value22 kW

— at 230 V rated value15 kW

— at 400 V rated value22 kW

— at 500 V rated value30 kW

— at 690 V rated value22 kW

at 400 V rated value12.6 kW

at 690 V rated value18.2 kW

up to 230 V for current peak value n=20 rated value17.2 kVA

up to 400 V for current peak value n=20 rated value29.9 kVA

up to 500 V for current peak value n=20 rated value37.4 kVA

up to 690 V for current peak value n=20 rated value28.6 kVA

up to 230 V for current peak value n=30 rated value11.4 kVA

up to 400 V for current peak value n=30 rated value19.9 kVA

up to 500 V for current peak value n=30 rated value24.9 kVA

up to 690 V for current peak value n=30 rated value28.6 kVA

limited to 1 s switching at zero current maximum937 A; Use minimum cross-section acc. to AC-1 rated value

limited to 5 s switching at zero current maximum697 A; Use minimum cross-section acc. to AC-1 rated value

limited to 10 s switching at zero current maximum468 A; Use minimum cross-section acc. to AC-1 rated value

limited to 30 s switching at zero current maximum282 A; Use minimum cross-section acc. to AC-1 rated value

limited to 60 s switching at zero current maximum229 A; Use minimum cross-section acc. to AC-1 rated value

at DC1 500 1/h

at AC-1 maximum1 000 1/h

at AC-2 maximum600 1/h

at AC-3 maximum800 1/h

— maximum800 1/h

at AC-4 maximum250 1/h

Control circuit/ Control

type of voltage of the control supply voltageDC

control supply voltage at DC rated value24 V

initial value0.8

full-scale value1.2

design of the surge suppressorwith varistor

inrush current peak2.6 A

duration of inrush current peak50 µs

pickup current mean value0.9 A

pickup current peak2.1 A

duration of pickup current230 ms

holding current mean value40 mA

closing power of magnet coil at DC21.5 W

holding power of magnet coil at DC1 W

at DC35 ... 80 ms

at DC30 ... 55 ms

arcing time10 ... 20 ms

control version of the switch operating mechanismStandard A1 - A2

Auxiliary circuit

number of NC contacts for auxiliary contacts instantaneous contact1

number of NO contacts for auxiliary contacts instantaneous contact1

operational current at AC-12 maximum10 A

at 230 V rated value10 A

at 400 V rated value3 A

at 500 V rated value2 A

at 690 V rated value1 A

at 24 V rated value10 A

at 48 V rated value6 A

at 60 V rated value6 A

at 110 V rated value3 A

at 125 V rated value2 A

at 220 V rated value1 A

at 600 V rated value0.15 A

at 24 V rated value10 A

at 48 V rated value2 A

at 60 V rated value2 A

at 110 V rated value1 A

at 125 V rated value0.9 A

at 220 V rated value0.3 A

at 600 V rated value0.1 A

contact reliability of auxiliary contacts1 faulty switching per 100 million (17 V, 1 mA)

UL/CSA ratings

at 480 V rated value52 A

at 600 V rated value52 A

— at 110/120 V rated value3 hp

— at 230 V rated value10 hp

— at 200/208 V rated value15 hp

— at 220/230 V rated value15 hp

— at 460/480 V rated value40 hp

— at 575/600 V rated value50 hp

contact rating of auxiliary contacts according to ULA600 / P600

Short-circuit protection

design of the miniature circuit breaker for short-circuit protection of the auxiliary circuit up to 230 VC characteristic: 10 A; 0.4 kA

— with type of coordination 1 requiredgG: 160 A (690 V, 100 kA), aM: 80 A (690 V, 100 kA), BS88: 125 A (415 V, 80 kA)

— with type of coordination 2 requiredgG: 80 A (690 V, 100 kA), aM: 50 A (690 V, 100 kA), BS88: 63 A (415 V, 80 kA)

for short-circuit protection of the auxiliary switch requiredgG: 10 A (500 V, 1 kA)

Installation/ mounting/ dimensions

mounting position+/-180° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface

fastening method side-by-side mountingYes

fastening methodscrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715

height114 mm

width55 mm

depth130 mm

— forwards10 mm

— upwards10 mm

— downwards10 mm

— at the side0 mm

— forwards10 mm

— upwards10 mm

— at the side6 mm

— downwards10 mm

— forwards10 mm

— upwards10 mm

— downwards10 mm

— at the side6 mm

Connections/ Terminals

for main current circuitscrew-type terminals

for auxiliary and control circuitspring-loaded terminals

at contactor for auxiliary contactsSpring-type terminals

of magnet coilSpring-loaded terminal

— solid or stranded2x (1 ... 35 mm²), 1x (1 ... 50 mm²)

— finely stranded with core end processing2x (1 ... 25 mm²), 1x (1 ... 35 mm²)

for AWG cables for main contacts2x (18 ... 2), 1x (18 ... 1)

finely stranded with core end processing1 ... 35 mm²

solid or stranded0.5 ... 2.5 mm²

finely stranded with core end processing0.5 ... 1.5 mm²

finely stranded without core end processing0.5 ... 2.5 mm²

— solid or stranded2x (0.5 ... 2.5 mm²)

— finely stranded with core end processing2x (0.5 ... 1.5 mm²)

— finely stranded without core end processing2x (0.5 ... 2.5 mm²)

for AWG cables for auxiliary contacts2x (20 ... 14)

AWG number as coded connectable conductor cross section for main contacts18 ... 1

AWG number as coded connectable conductor cross section for auxiliary contacts20 ... 14

Safety related data

mirror contact according to IEC 60947-4-1Yes

positively driven operation according to IEC 60947-5-1No

suitable for safety functionYes

suitability for use safety-related switching OFFYes

service life maximum20 a

test wear-related service life necessaryYes

with low demand rate according to SN 3192040 %

with high demand rate according to SN 3192073 %

B10 value with high demand rate according to SN 319201 000 000

failure rate [FIT] with low demand rate according to SN 31920100 FIT

ISO 13849

device type according to ISO 13849-13

overdimensioning according to ISO 13849-2 necessaryYes

IEC 61508

safety device type according to IEC 61508-2Type A

Electrical Safety

protection class IP on the front according to IEC 60529IP20

touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing5.88 kg

global warming potential [CO2 eq] / during operation102 kg

global warming potential [CO2 eq] / after end of life-0.988 kg

global warming potential [CO2 eq] / total107 kg

Accessories 88

Genuine accessories that can be used with the Siemens 3RT2036-3KB40 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3RH2911-2HA22	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2FA22	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2XA22-0MA0	Aksesuar · Auxiliary switch · auxiliary switches
3RT2936-1ER00	Aksesuar · Surge suppressor · diode assemblies
3RH2911-2FA40	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2HA11	Aksesuar · Auxiliary switch · auxiliary switches
3RH2921-2DE11	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2HA31	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2XA40-0MA0	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2HA12	Aksesuar · Auxiliary switch · auxiliary switches
3RA2934-2B	Aksesuar · Mechanical interlocks · mechanical interlocks
3RH2911-2XA31-0MA0	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2HA01	Aksesuar · Auxiliary switch · auxiliary switches
3RT2936-4MC00	Aksesuar · Miscellaneous accessories · Control Kits
3RV2935-5E	Aksesuar · Plugs, adapters and terminals · infeed terminals
3RH2914-2GP11	Aksesuar · Coupling links · coupling links
3RT2900-1SB10	Aksesuar · Miscellaneous accessories · labeling plates
3RA2813-2FW10	Aksesuar
3RT2916-4MA10	Aksesuar · Sealing covers · sealing covers
3RT2900-1SB60	Aksesuar · Miscellaneous accessories · labeling plates
3RT2900-1SB20	Aksesuar · Miscellaneous accessories · labeling plates
3RA2816-0EW20	Aksesuar
3RA1933-3E	Aksesuar · Wiring modules, connectors and kits · link modules
3RA2932-2F	Aksesuar · Base plates · base plates
3RH2911-2XA13-0MA0	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2XA11-0MA0	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2XA04-0MA0	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2NE21	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2HA30	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2HA21	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2FB22-0MA0	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2XA20-0MA0	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2HA03	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2FA04	Aksesuar · Auxiliary switch · auxiliary switches
3RH2921-2DA20	Aksesuar · Auxiliary switch · auxiliary switches
3RH2921-2DA02	Aksesuar · Auxiliary switch · auxiliary switches
3RH2921-2DA11	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2HA10	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2XB22-0MA0	Aksesuar · Auxiliary switch · auxiliary switches
3RR2243-3FA30	Aksesuar
3RH2911-2NL22	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2NL40	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2NM31	Aksesuar · Auxiliary switch · auxiliary switches
3RR2143-1AA30	Aksesuar
3RR2143-3AA30	Aksesuar
3RR2243-1FA30	Aksesuar
3RR2443-1AA40	Aksesuar
3RR2143-1AW30	Aksesuar
3RR2143-3AW30	Aksesuar
3RR2243-1FW30	Aksesuar
3RH2911-2NF20	Aksesuar · Auxiliary switch · auxiliary switches
3RR2443-3AA40	Aksesuar
3RR2243-3FW30	Aksesuar
3RH2916-2XA22-0MA0	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2NF11	Aksesuar · Auxiliary switch · auxiliary switches
3RA2813-2AW10	Aksesuar
3RH2911-2HA13	Aksesuar · Auxiliary switch · auxiliary switches
3RA2932-2C	Aksesuar · Mechanical interlocks · mechanical connectors
3RA2933-2AA2	Aksesuar · Wiring modules, connectors and kits · wiring kits
3RA2933-2BB2	Aksesuar · Wiring modules, connectors and kits · wiring kits
3RA2933-2C	Aksesuar · Wiring modules, connectors and kits · wiring kits
3RA1933-3D	Aksesuar · Wiring modules, connectors and kits · link modules
3RV2935-5A	Aksesuar · Plugs, adapters and terminals · infeed terminals
3RA2831-2DG10	Aksesuar
3RA2831-2DH10	Aksesuar
3RA2832-2DG10	Aksesuar
3RA2832-2DH10	Aksesuar
3RA2908-1A	Aksesuar · Miscellaneous accessories · screwdrivers
3RA2936-1A	Aksesuar · Wiring modules, connectors and kits · link modules
3RT2916-2BE01	Aksesuar · OFF-delay device · OFF-delay device
3RT2916-2BK01	Aksesuar · OFF-delay device · OFF-delay device
3RH2911-2NF02	Aksesuar · Auxiliary switch · auxiliary switches
3RT2916-2BL01	Aksesuar · OFF-delay device · OFF-delay device
3RT1936-4BA31	Aksesuar · Wiring modules, connectors and kits · coil connectors
3RT1936-4BB31	Aksesuar · Wiring modules, connectors and kits · coil connectors
3RH2911-2NF22	Aksesuar · Auxiliary switch · auxiliary switches
3RH2916-2FA22	Aksesuar · Auxiliary switch · auxiliary switches
3RA2814-2AW10	Aksesuar
3RA2814-2FW10	Aksesuar
3RA2815-2AW10	Aksesuar
3RA2815-2FW10	Aksesuar
3RH2911-2HA02	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2HA20	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2FB11	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2FB22	Aksesuar · Auxiliary switch · auxiliary switches
3RH2911-2FC22	Aksesuar · Auxiliary switch · auxiliary switches
3RT2936-1CB00	Aksesuar · Surge suppressor · RC elements
3RT2936-6A	Yedek parça · Contact pieces and vacuum interrupters · contacts
