How can I get a price quote for Siemens 3RH2122-1BB40?

You can request a fast quote for Siemens 3RH2122-1BB40 from Yılsa Engineering. Reference part number CEY-937FC77FAECF. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3RH2122-1BB40 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3RH2122-1BB40 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3RH2122-1BB40?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

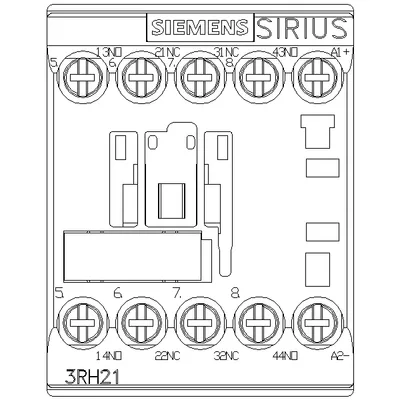

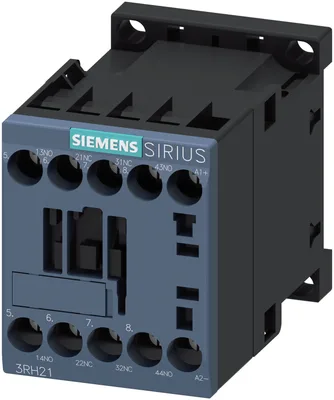

Siemens 3RH2122-1BB40

contactor relay, 2 NO + 2 NC, 24 V DC, screw terminal, frame size S00

SiemensMFR # 3RH2122-1BB40SKU # CEY-937FC77FAECF

product brand nameSIRIUS

product designationAuxiliary contactor

product type designation3RH2

size of contactorS00

product extension auxiliary switchYes

degree of pollution3

Have questions?Chat on WhatsApp

About This Product

contactor relay, 2 NO + 2 NC, 24 V DC, screw terminal, frame size S00

Siemens 3RH2122-1BB40

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationAuxiliary contactor

product type designation3RH2

General technical data

size of contactorS00

product extension auxiliary switchYes

power loss [W] for rated value of the current without load current share typical4 W

insulation voltage with degree of pollution 3 at AC rated value690 V

degree of pollution3

surge voltage resistance rated value6 kV

at DC10 g / 5 ms, 5 g / 10 ms

at DC15 g / 5 ms, 8 g / 10 ms

of contactor typical30 000 000

of the contactor with added electronically optimized auxiliary switch block typical5 000 000

of the contactor with added auxiliary switch block typical10 000 000

reference code according to IEC 81346-2K

Substance Prohibitance (day/month/year)10/01/2009

Net Weight258.8 g

Ambient conditions

installation altitude at height above sea level maximum2 000 m

during operation-25 ... +60 °C

during storage-55 ... +80 °C

relative humidity minimum10 %

relative humidity at 55 °C according to IEC 60068-2-30 maximum95 %

Main circuit

at AC10 000 1/h

at DC10 000 1/h

Control circuit/ Control

type of voltage of the control supply voltageDC

control supply voltage at DC rated value24 V

initial value0.8

full-scale value1.1

closing power of magnet coil at DC4 W

holding power of magnet coil at DC4 W

at DC30 ... 100 ms

at DC7 ... 13 ms

arcing time10 ... 15 ms

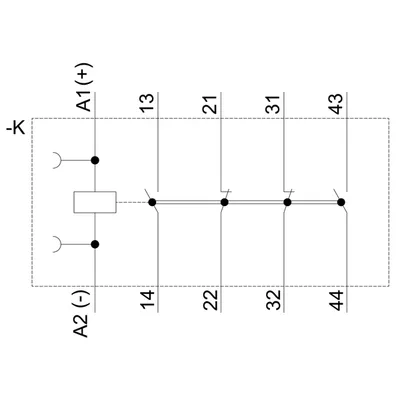

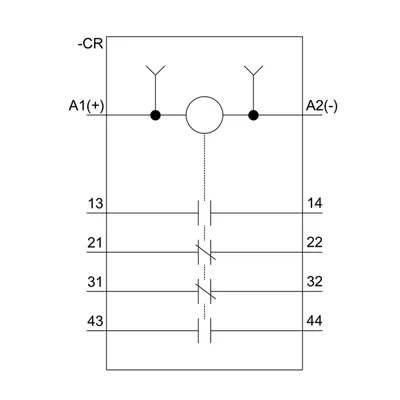

Auxiliary circuit

number of NC contacts for auxiliary contacts2

instantaneous contact2

number of NO contacts for auxiliary contacts2

instantaneous contact2

identification number and letter for switching elements22 E

operational current at AC-12 maximum10 A

at 230 V rated value10 A

at 400 V rated value3 A

at 500 V rated value2 A

at 690 V rated value1 A

at 24 V rated value10 A

at 60 V rated value6 A

at 110 V rated value3 A

at 220 V rated value1 A

at 440 V rated value0.3 A

at 600 V rated value0.15 A

at 24 V rated value10 A

at 60 V rated value10 A

at 110 V rated value4 A

at 220 V rated value2 A

at 440 V rated value1.3 A

at 600 V rated value0.65 A

at 24 V rated value10 A

at 60 V rated value10 A

at 110 V rated value10 A

at 220 V rated value3.6 A

at 440 V rated value2.5 A

at 600 V rated value1.8 A

operating frequency at DC-12 maximum1 000 1/h

at 24 V rated value10 A

at 60 V rated value2 A

at 110 V rated value1 A

at 220 V rated value0.3 A

at 440 V rated value0.14 A

at 600 V rated value0.1 A

at 24 V rated value10 A

at 60 V rated value3.5 A

at 110 V rated value1.3 A

at 220 V rated value0.9 A

at 440 V rated value0.2 A

at 600 V rated value0.1 A

at 24 V rated value10 A

at 60 V rated value4.7 A

at 110 V rated value3 A

at 220 V rated value1.2 A

at 440 V rated value0.5 A

at 600 V rated value0.26 A

operating frequency at DC-13 maximum1 000 1/h

contact reliability of auxiliary contacts1 faulty switching per 100 million (17 V, 1 mA)

UL/CSA ratings

contact rating of auxiliary contacts according to ULA600 / Q600

Short-circuit protection

design of the miniature circuit breaker for short-circuit protection of the auxiliary circuit up to 230 VC characteristic: 10 A; 0.4 kA

design of the fuse link for short-circuit protection of the auxiliary switch requiredgG: 10 A (690 V, 1 kA)

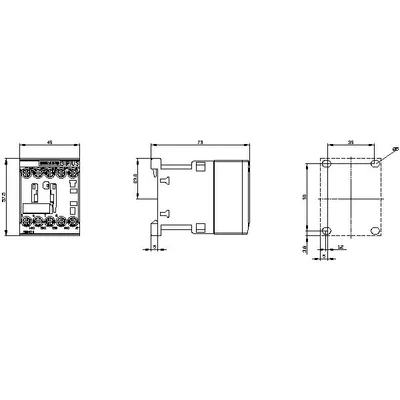

Installation/ mounting/ dimensions

mounting position+/-180° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface

fastening methodscrew and snap-on mounting onto 35 mm DIN rail

height57.5 mm

width45 mm

depth73 mm

— forwards10 mm

— upwards10 mm

— downwards10 mm

— at the side0 mm

— forwards10 mm

— upwards10 mm

— at the side6 mm

— downwards10 mm

— forwards10 mm

— upwards10 mm

— downwards10 mm

— at the side6 mm

Connections/ Terminals

type of electrical connection for auxiliary and control circuitscrew-type terminals

— solid or stranded2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm²

— finely stranded with core end processing2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)

for AWG cables for auxiliary contacts2x (20 ... 16), 2x (18 ... 14), 2x 12

Safety related data

positively driven operation according to IEC 60947-5-1Yes

suitable for safety functionYes

suitability for use safety-related switching OFFYes

service life maximum20 a

with low demand rate according to SN 3192040 %

with high demand rate according to SN 3192073 %

B10 value with high demand rate according to SN 319201 000 000; With 0.3 x Ie

failure rate [FIT] with low demand rate according to SN 31920100 FIT

ISO 13849

device type according to ISO 13849-13

overdimensioning according to ISO 13849-2 necessaryYes

IEC 61508

safety device type according to IEC 61508-2Type A

Electrical Safety

protection class IP on the front according to IEC 60529IP20

touch protection on the front according to IEC 60529finger-safe, for vertical contact from the front

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing1.3 kg

global warming potential [CO2 eq] / during operation132 kg

global warming potential [CO2 eq] / after end of life-0.227 kg

global warming potential [CO2 eq] / total133 kg
