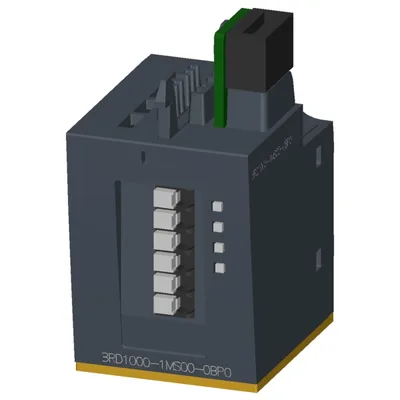

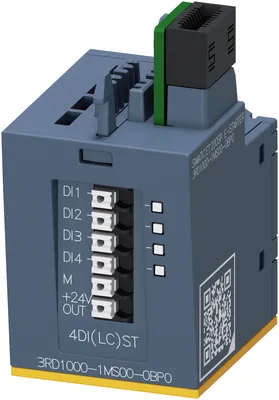

Siemens 3RD1000-1MS00-0BP0

SIMATIC ET 200SP e-Starter standard 4DI (LC) submodule fail-safe shutdown via F-DI on the base unit, Ex operation, Advanced Condition Monitoring

SiemensMFR # 3RD1000-1MS00-0BP0SKU # YLSW38N69JBZFBR

product brand nameSIMATIC

product designation4DI (LC) submodule

design of the productStandard

product type designationET 200SP

ramp-up (soft starting)No

soft stoppingNo

Have questions?Chat on WhatsApp

About This Product

SIMATIC ET 200SP e-Starter standard 4DI (LC) submodule fail-safe shutdown via F-DI on the base unit, Ex operation, Advanced Condition Monitoring

Siemens 3RD1000-1MS00-0BP0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC

product designation4DI (LC) submodule

design of the productStandard

product type designationET 200SP

Product Function

ramp-up (soft starting)No

soft stoppingNo

Soft TorqueNo

Safe Torque Off (STO) via F-DIYes

Safe Torque Off (STO) via PROFIsafeNo

current limitationNo

creep speed in both directions of rotationNo

pump stopNo

min/max pointerYes

trace functionNo

stationary state detectionNo

switching of capacitive loadsYes

Smart StartYes

torque controlNo

reversing brakesNo

detection of direction of rotationYes

General technical data

on-site operationYes

for power supply reverse polarity protectionYes

for sensor supply short-circuit protectionYes

with 24 V sensor supply short-circuit protectionYes

diagnostics function short-circuit detectionYes

display version for diagnostic function: Status display transmission channel channel status LEDYes

noteGreen LED

shock resistance6 g / 11 ms (3 Schocks), 9 g / 6 ms (1000 Schocks)

vibration resistancef = 5 ... 8.5 Hz, dmax = 3.5 mm; 8.5 ... 26.9 Hz, amax = 10 m/s²/ f = 26.9 ... 60.1 Hz, dmax = 0.35 mm / f = 60.1 ... 500 Hz, amax = 50 m/s² / 10 cycles

Substance Prohibitance (day/month/year)10/01/2024

SVHC substance nameLead CAS-No. 7439-92-1

Net Weight0.05 kg

Short-circuit protection

product function short circuit protectionYes

Protective and monitoring functions

product function active power monitoringYes

Safety related data

product function suitable for safety functionYes

safety-related switching onNo

safety-related switching OFFYes

safe stateLoad circuit open

test wear-related service life necessaryNo

diagnostics test interval by internal test function maximum24 h

stop category according to IEC 60204-10

B10d value2 500 000

average diagnostic coverage level (DCavg)99 %

IEC 62061

Safety Integrity Level (SIL) according to IEC 62061SIL 3

PFHD with high demand rate according to IEC 620614E-9 1/h

ISO 13849

performance level (PL) according to ISO 13849-1PL e

category according to ISO 13849-14

IEC 61508

Safety Integrity Level (SIL) according to IEC 61508SIL 3

systematic capability according to IEC 61508SC 3

PFHD with high demand rate according to IEC 615084E-9 1/h

PFDavg with low demand rate according to IEC 615080.0002

Safe failure fraction (SFF)99 %

hardware fault tolerance according to IEC 615081

T1 value of service life according to IEC 6150820 a

Electrical Safety

protection class IP on the front according to IEC 60529IP20

touch protection on the front according to IEC 60529finger-safe

touch protection rear side according to IEC 60529finger-safe

ATEX

Safety Integrity Level (SIL) according to IEC 61508 relating to ATEXSIL 1

PFHD with high demand rate according to IEC 61508 relating to ATEX2E-6 1/h

PFDavg with low demand rate according to IEC 61508 relating to ATEX0.0003

hardware fault tolerance according to IEC 61508 relating to ATEX0

T1 value for proof test interval or service life according to IEC 61508 relating to ATEX3 a

MTTFd relating to ATEX46 a

ATEXYes

IECExYes

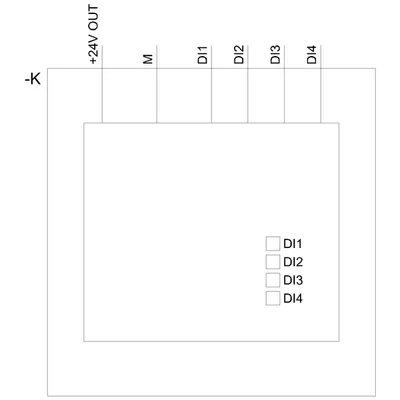

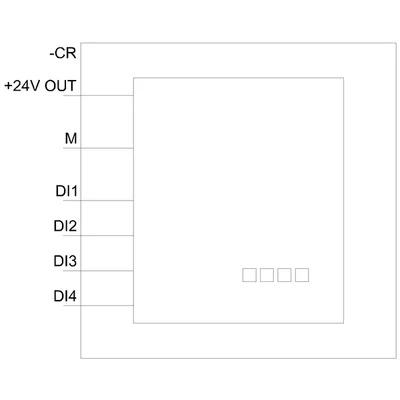

Inputs/ Outputs

digital inputs parameterizableYes

digital outputs parameterizableNo

at the standard inputs at rated input voltage parameterizable input delay timeNo

for signal <0> to <1> at rated input voltage6 ... 10 ms

for signal <1> to <0> at rated input voltage6 ... 10 ms

number of digital inputs4

digital input version type 1 acc. to IEC 61131Yes

operating voltage as input voltage minimum permissible0 V

operating voltage as input voltage maximum permissible30 V

value range of the input voltage at digital input for signal <0> detection-30 ... +5 V

value range of the input voltage at digital input for signal <1> detection+15 ... +30 V

input voltage at digital input at DC rated value24 V

input current at digital input for signal <1> typical9 mA

output voltage19.4 ... 28.8 V

type of output voltage for sensor supplyDC

output voltage for sensor supply minimum19.2 V

output current for sensor supply maximum0.1 A

output current for sensor supply at 60 °C maximum0.1 A

wire length of sensor maximum30 m

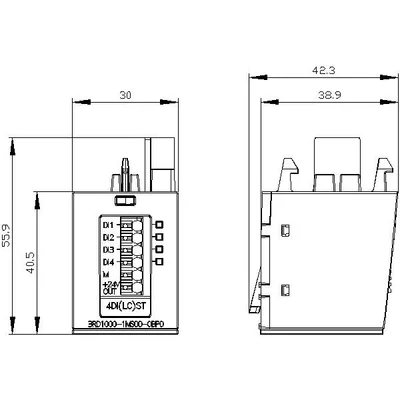

Installation/ mounting/ dimensions

mounting positionvertical, horizontal

fastening methodcan be plugged onto e-starters

height54.5 mm

width30 mm

depth42.3 mm

Ambient conditions

installation altitude at height above sea level maximum4 000 m

during operation-25 ... +40 °C

during storage-40 ... +70 °C

during transport-40 ... +70 °C

relative humidity during operation10 ... 95 %

air pressure according to SN 31205900 ... 1 060 hPa

Communication/ Protocol

protocol is supported PROFIsafe protocolNo

Connections/ Terminals

type of electrical connection for auxiliary and control circuitspring-loaded terminals (push-in)

type of connecting terminalpush-in terminal

solid or stranded0.2 ... 1.5 mm²

finely stranded with core end processing0.25 ... 1.5 mm²

finely stranded without core end processing0.2 ... 1.5 mm²

AWG number as coded connectable conductor cross section for auxiliary contacts24 ... 16

shape of the screwdriver tipSlot

size of the screwdriver tipStandard screwdriver 0.6 mm x 3.5 mm
