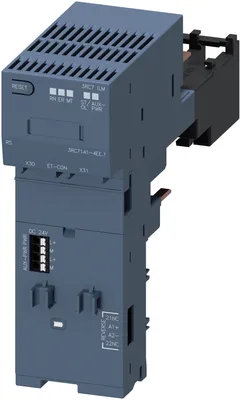

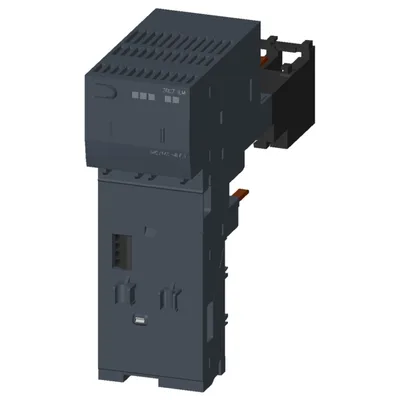

Siemens 3RC7141-4EE01

intelligent link module reversing starter standard 3.5-32 A up to 690 V AC frame size S0 for 3RV2.2 and 3RT2.2 for ET 200SP system

SiemensMFR # 3RC7141-4EE01SKU # YLSELNYYC8SQ2

product brand nameSIRIUS

product designationintelligent link module

design of the productreversing starter standard

product type designation3RC7

number of monitored phases2

direct starterNo

Have questions?Chat on WhatsApp

About This Product

intelligent link module reversing starter standard 3.5-32 A up to 690 V AC frame size S0 for 3RV2.2 and 3RT2.2 for ET 200SP system

Siemens 3RC7141-4EE01

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationintelligent link module

design of the productreversing starter standard

product type designation3RC7

General technical data

number of monitored phases2

direct starterNo

reversing starterYes

product function external resetYes

product component RESET buttonYes

design of the overcurrent releaseelectronic

size of the circuit-breakerS0

size of contactor can be combined company-specificS0

remote firmware updateYes

for power supply reverse polarity protectionYes

rated value690 V

for overvoltage category III according to IEC 60664 with degree of pollution 2 rated value690 V

degree of pollution2

overvoltage category3

surge voltage resistance rated value6 kV

shock resistance according to IEC 60068-2-276 g / 11 ms (3 shocks); 10 g / 6 ms (1000 shocks)

mechanical service life (operating cycles) typical10 000 000

reference code according to IEC 81346-2F

continuous current rated value32 A

Substance Prohibitance (day/month/year)06/21/2024

SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1

Net Weight0.298 kg

Ambient conditions

installation altitude at height above sea level maximum2 000 m

during operation-20 ... +60 °C

during storage-40 ... +80 °C

during transport-40 ... +80 °C

environmental category during operation according to IEC 607213C3 (without salt spray)

relative humidity during operation10 ... 95 %

Main circuit

number of poles for main current circuit3

adjustable current response value current of the current-dependent overload release3.5 ... 32 A

type of the motor protectionsolid-state

type of voltage for main current circuitAC

rated value690 V

at AC-3 rated value maximum690 V

at AC-3e rated value maximum690 V

operating frequency rated value50 ... 60 Hz

operational current rated value32 A

Auxiliary circuit

designation of the terminal at the auxiliary voltageAUX-PWR

number of NC contacts for auxiliary contacts0

number of NO contacts for auxiliary contacts0

number of CO contacts for auxiliary contacts0

auxiliary voltage at DC rated value24 V

auxiliary voltage at DC rated value20.4 ... 28.8 V

inrush current peak for auxiliary voltage at DC at 24 V2.5 A

duration of inrush current peak for auxiliary voltage at DC at 24 V1 ms

closing power at the auxiliary voltage in closing operation at DC at 24 V5.9 W

holding power at the auxiliary voltage in holding operation at DC at 24 V1.3 W

Protective and monitoring functions

type of protection function of the overcurrent releaseelectronic

ground fault detectionNo

phase failure detectionYes

phase sequence recognitionYes

overcurrent detection 1 phaseYes

undercurrent detection 3 phasesYes

undercurrent monitoringYes

overcurrent and undercurrent monitoringYes

undercurrent detection 1 phaseYes

overcurrent detection 3 phaseYes

overload protectionYes

overload warningYes

active current monitoringNo

operating hours counterYes

trip classCLASS 10E / CLASS 20E; for permissible operating currents, see manual

design of the overload releaseelectronic

UL/CSA ratings

according to UL 60947 rated value600 V

at AC at 60 Hz according to CSA and UL rated value600 V

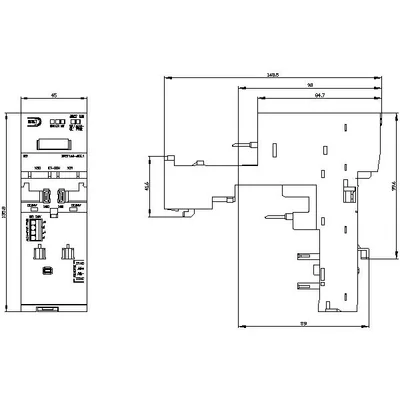

Installation/ mounting/ dimensions

mounting positionvertical, on horizontal standard mounting rail

fastening methodclip-on

height136 mm

width45 mm

depth149 mm

Connections/ Terminals

type of electrical connection for main current circuitspring-loaded terminals

type of electrical connection for supply voltage line-sidespring-loaded terminals (push-in)

solid0.2 ... 1.5 mm²

finely stranded without core end processing0.2 ... 1.5 mm²

finely stranded with core end processing0.2 ... 1 mm²

type of connectable conductor cross-sections at the inputs for supply voltage for AWG cables solid24 ... 16

Electrical Safety

touch protection on the front according to IEC 60529finger-safe

Communication/ Protocol

product function bus communicationYes

of the inputs16 byte

of the outputs2 byte

type of electrical connection of the communication interfaceRJ45

Electromagnetic compatibility

EMC emitted interference according to IEC 60947-1environment A

EMC immunity according to IEC 60947-1environment A

due to burst according to IEC 61000-4-42 kV

due to conductor-earth surge according to IEC 61000-4-52 kV

due to conductor-conductor surge according to IEC 61000-4-51 kV

due to high-frequency radiation according to IEC 61000-4-610 V

field-based interference according to IEC 61000-4-310 V/m

electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge

conducted HF interference emissions according to CISPR11Class A for industrial environment

field-bound HF interference emission according to CISPR11Class A for industrial environment

Supply voltage

type of voltage of the supply voltageDC

designation of the terminal at supply voltagePWR

minimum permissible19.2 V

maximum permissible28.8 V

auxiliary voltage at DC rated value20.4 ... 28.8 V

supply voltage at DC rated value24 V

inrush current peak with supply voltage at DC at 24 V1.25 A

duration of inrush current peak with supply voltage at DC at 24 V5 ms

power loss [W] at supply voltage at DC at 24 V0.5 W
