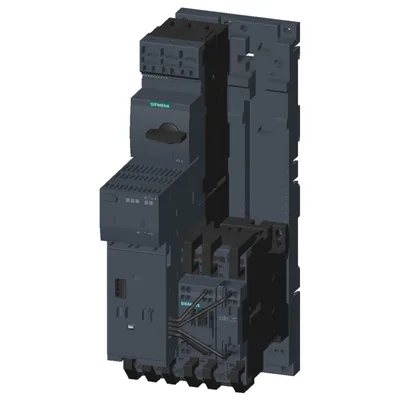

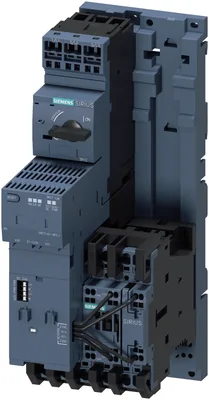

Siemens 3RA8522-4EE00

intelligent load feeder reversing starter standard 3.5-32 A up to 690 V AC type of coordination 2 frame size S0 for ET 200SP system consisting of 3RC7141-4EE01, 3RV2321-4EC20, 2x 3RT2027-2BB40

SiemensMFR # 3RA8522-4EE00SKU # YLSYXPGO4U3US8O

product brand nameSIRIUS

product designationIntelligent load feeder

design of the productreversing starter standard

product type designation3RA8

of the supplied contactor3RT2027-2BB40

of the supplied circuit-breakers3RV2321-4EC20

Have questions?Chat on WhatsApp

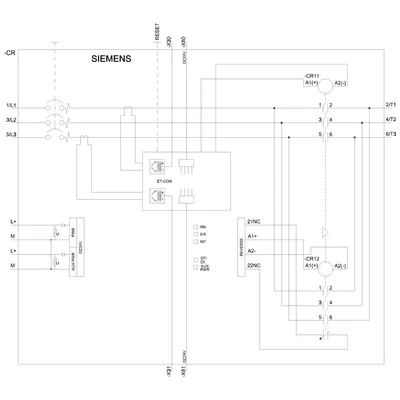

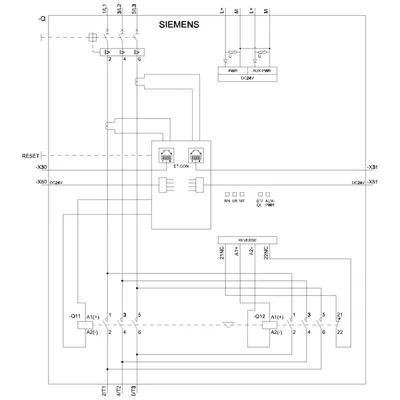

About This Product

intelligent load feeder reversing starter standard 3.5-32 A up to 690 V AC type of coordination 2 frame size S0 for ET 200SP system consisting of 3RC7141-4EE01, 3RV2321-4EC20, 2x 3RT2027-2BB40

Siemens 3RA8522-4EE00

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIRIUS

product designationIntelligent load feeder

design of the productreversing starter standard

product type designation3RA8

of the supplied contactor3RT2027-2BB40

of the supplied circuit-breakers3RV2321-4EC20

of the supplied RH assembly kit3RA2923-2LB2

of the supplied link module3RC7141-4EE01

of the supplied DIN-rail adapter3RA2922-1AA00

General technical data

number of monitored phases2

direct starterNo

reversing starterYes

star-delta starterNo

product function external resetYes

product component RESET buttonYes

design of the overcurrent releaseelectronic

size of the circuit-breakerS0

size of load feederS0

size of contactor can be combined company-specificS0

remote firmware updateYes

disconnector functionalityYes

for power supply reverse polarity protectionYes

power loss [W] for rated value of the current at AC in hot operating state per pole6.7 W

type of calculation of power loss current-dependentquadratic

rated value690 V

for overvoltage category III according to IEC 60664 with degree of pollution 2 rated value690 V

degree of pollution3

overvoltage category3

surge voltage resistance rated value6 kV

on the frontIP20

of the terminalIP20

shock resistance according to IEC 60068-2-276 g / 11 ms (3 shocks); 10 g / 6 ms (1000 shocks)

vibration resistance5 … 8,4 Hz, 3,5 mm; 8,4 … 150 Hz, 1 g; 10 cycles / 10 … 60 Hz, 0,35 mm; 60 … 500 Hz, 5 g; 10 cycles

type of coordination2

reference code according to IEC 81346-2Q

reference code according to IEC 81346-2:2019Q

continuous current rated value32 A

Substance Prohibitance (day/month/year)06/21/2024

SVHC substance nameLead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1

Net Weight2.558 kg

Ambient conditions

installation altitude at height above sea level maximum2 000 m

during operation-20 ... +60 °C

during storage-40 ... +80 °C

during transport-40 ... +80 °C

with upper limit without restrictions40 °C

environmental category during operation according to IEC 607213C3 (without salt spray)

relative humidity during operation10 ... 95 %

Main circuit

number of poles for main current circuit3

design of the switching contactelectromechanical

adjustable current response value current of the current-dependent overload release3.5 ... 32 A

type of the motor protectionsolid-state

type of voltage for main current circuitAC

utilization category according to IEC 60947-4-1AC-3e

rated value690 V

at AC-3 rated value maximum690 V

at AC-3e rated value maximum690 V

operating frequency rated value50 ... 60 Hz

operational current rated value32 A

— at 400 V rated value32 A

— at 440 V rated value32 A

— at 500 V rated value32 A

— at 690 V rated value21 A

— at 400 V rated value32 A

— at 440 V rated value32 A

— at 500 V rated value32 A

— at 690 V rated value21 A

— at 400 V rated value15 000 W

— at 500 V rated value15 000 W

— at 690 V rated value18 500 W

— at 400 V rated value15 000 W

— at 500 V rated value15 000 W

— at 690 V rated value18 500 W

no-load switching frequency at DC1 500 1/h

Control circuit/ Control

type of voltage of the control supply voltageDC

closing delay at DC50 ... 170 ms

opening delay at DC30 ... 50 ms

Auxiliary circuit

product component auxiliary switchNo

product extension auxiliary switchYes

designation of the terminal at the auxiliary voltageAUX-PWR

type of voltage for auxiliary and control circuitDC

auxiliary voltage at DC rated value24 V

auxiliary voltage at DC rated value20.4 ... 28.8 V

inrush current peak for auxiliary voltage at DC at 24 V2.5 A

duration of inrush current peak for auxiliary voltage at DC at 24 V1 ms

closing power at the auxiliary voltage in closing operation at DC at 24 V5.9 W

holding power at the auxiliary voltage in holding operation at DC at 24 V1.3 W

Protective and monitoring functions

type of protection function of the overcurrent releaseelectronic

ground fault detectionNo

phase failure detectionYes

phase sequence recognitionYes

overcurrent detection 1 phaseYes

undercurrent detection 3 phasesYes

undercurrent monitoringYes

overcurrent and undercurrent monitoringYes

undercurrent detection 1 phaseYes

overcurrent detection 3 phaseYes

overload protectionYes

overload warningYes

temperature-compensated overload protectionNo

motor protectionYes

active current monitoringNo

main switches with supply disconnect function and EM-STOP switchesNo

operating hours counterYes

trip classCLASS 10E / CLASS 20E; for permissible operating currents, see manual

design of the overload releaseelectronic

response value current of instantaneous short-circuit trip unit400 A

UL/CSA ratings

at 480 AC Y/277 V rated value50 000 A

at AC 600 Y/347 V rated value30 000 A

according to UL 60947 rated value480 V

at AC at 60 Hz according to CSA and UL rated value480 V

Short-circuit protection

product function short circuit protectionYes

design of the short-circuit tripmagnetic

at 690 V according to IEC 60947-4-1 rated value1 000 A

at 400 V according to IEC 60947-4-1 rated value150 000 A

at 440 V according to IEC 60947-4-1 rated value100 000 A

at 500 V according to IEC 60947-4-1 rated value70 000 A

at 230 V rated value150 000 A

at 400 V rated value150 000 A

certificate of suitability ATEXNo

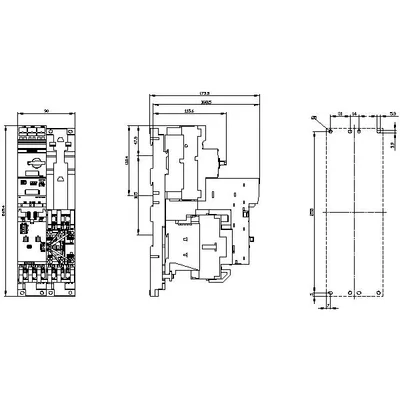

Installation/ mounting/ dimensions

mounting positionvertical, on horizontal standard mounting rail

fastening methodscrew and snap-on mounting onto 35 mm DIN rail

mounting railYes

height270 mm

width90 mm

depth174 mm

— downwards10 mm

— upwards30 mm

— backwards0 mm

— at the side9 mm

— forwards0 mm

— downwards10 mm

— upwards30 mm

— backwards0 mm

— at the side9 mm

— forwards0 mm

— downwards10 mm

— upwards30 mm

— backwards0 mm

— at the side20 mm

— forwards0 mm

— downwards10 mm

— upwards30 mm

— backwards0 mm

— at the side20 mm

— forwards0 mm

— downwards10 mm

— upwards80 mm

— at the side20 mm

— forwards0 mm

— downwards10 mm

— upwards80 mm

— at the side20 mm

— forwards0 mm

Connections/ Terminals

product component removable terminal for auxiliary and control circuitNo

for main current circuitspring-loaded terminals

for auxiliary and control circuitspring-loaded terminals (push-in)

type of electrical connection for supply voltage line-sidespring-loaded terminals (push-in)

— solid2x (1 ... 10 mm²)

— stranded2x (1 ... 10 mm²)

— finely stranded with core end processing2x (1 ... 6 mm²)

for AWG cables for main contacts2x 18 ... 8

solid1 ... 10 mm²

stranded1 ... 10 mm²

finely stranded with core end processing1 ... 6 mm²

solid0.2 ... 1.5 mm²

finely stranded without core end processing0.2 ... 1.5 mm²

finely stranded with core end processing0.2 ... 1 mm²

type of connectable conductor cross-sections at the inputs for supply voltage for AWG cables solid24 ... 16

Electrical Safety

touch protection against electrical shockIP20

touch protection on the front according to IEC 60529finger-safe

Communication/ Protocol

protocol is supported other protocolsYes

product function bus communicationYes

product function control circuit interface with IO linkNo

product function control circuit interface with AS-interfaceNo

of the address range of the inputs with cyclical transfer total16 byte

of the address range of the outputs with cyclical transfer total2 byte

of the inputs16 byte

of the outputs2 byte

type of electrical connection of the communication interfaceRJ45

Electromagnetic compatibility

due to burst according to IEC 61000-4-42 kV

due to conductor-earth surge according to IEC 61000-4-52 kV

due to conductor-conductor surge according to IEC 61000-4-51 kV

due to high-frequency radiation according to IEC 61000-4-610 V

field-based interference according to IEC 61000-4-310 V/m

electrostatic discharge according to IEC 61000-4-28 kV air discharge

conducted HF interference emissions according to CISPR11Class A for industrial environment

field-bound HF interference emission according to CISPR11Class A for industrial environment

Supply voltage

type of voltage of the supply voltageDC

designation of the terminal at supply voltagePWR

minimum permissible19.2 V

maximum permissible28.8 V

auxiliary voltage at DC rated value20.4 ... 28.8 V

supply voltage at DC rated value24 V

inrush current peak with supply voltage at DC at 24 V1.25 A

duration of inrush current peak with supply voltage at DC at 24 V5 ms

power loss [W] at supply voltage at DC at 24 V0.5 W

Accessories 15

Genuine accessories that can be used with the Siemens 3RA8522-4EE00 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
