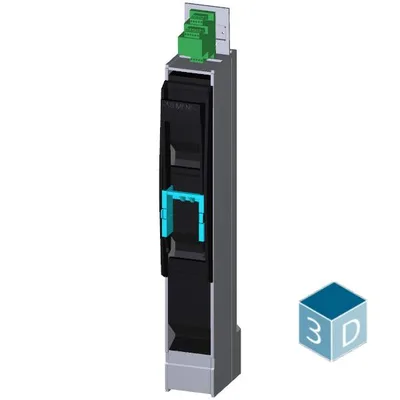

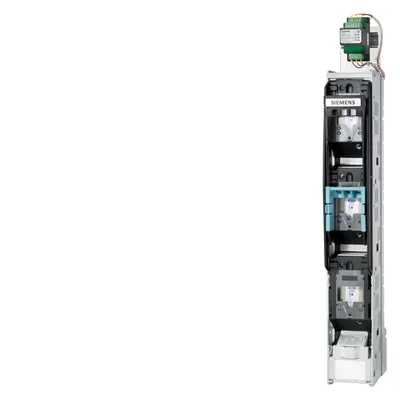

Siemens 3NJ4133-3CF11

in-line fuse switch disconnector 3-pole switchable, sz. 2 and 1 I=400 A, U=690 V AC flat connector M12, for current transformers that can be integrated with electronic fuse monitoring

SiemensMFR # 3NJ4133-3CF11SKU # CEY-8EF3B0395193

product brand nameSENTRON

product designationFuse switch disconnectors

design of the productin in-line design

design of the auxiliary releaseWithout

design of the safety monitoringElectronic

design of the load switch strip formYes

Have questions?Chat on WhatsApp

About This Product

in-line fuse switch disconnector 3-pole switchable, sz. 2 and 1 I=400 A, U=690 V AC flat connector M12, for current transformers that can be integrated with electronic fuse monitoring

Siemens 3NJ4133-3CF11

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationFuse switch disconnectors

design of the productin in-line design

type of switching contact double breaking switching contactNo

design of the auxiliary releaseWithout

design of the safety monitoringElectronic

design of the load switch strip formYes

General technical data

number of poles3

number of poles note3-pole switchable

type of deviceFor busbar system 185 mm

size of fuse linkNH1, NH2

fuse systemLV HRC fuse

Voltage

insulation voltage rated value1 000 V

at AC-21 B at 400 V rated value400 A

at AC-21 B at 500 V rated value400 A

at AC-21 B at 690 V rated value400 A

at AC-23 B at 400 V rated value400 A

at AC rated value690 V

at DC rated value440 V

Protection class

protection class IP on the frontIP30

Dissipation

for rated value of the current at AC in hot operating state per pole18 W

maximum54 W

Main circuit

rated value400 A

with capacitive load at 400 V rated value216 A

with capacitive load at 500 V rated value165 A

Suitability

suitability for operationSystem protection

suitability for use main switchNo

suitability for use switch disconnectorYes

suitability for use EMERGENCY OFF switchNo

suitability for use maintenance/repair switchNo

Product details

voltage triggerNo

undervoltage releaseNo

undervoltage release with leading contactNo

Short circuit

at AC-21 B at 400 V rated value110 kA

at AC-21 B at 500 V rated value110 kA

at AC-21 B at 690 V rated value110 kA

at AC-22 B at 400 V rated value110 kA

at AC-22 B at 500 V rated value110 kA

at AC-22 B at 690 V rated value110 kA

at AC-23 B at 400 V rated value110 kA

at AC-23 B at 500 V rated value110 kA

at AC-23 B at 690 V rated value110 kA

Connections

arrangement of electrical connectors for main current circuitFlat terminal

type of electrical connection for main current circuitbusbar connection

Mechanical Design

height662 mm

width100 mm

depth195 mm

fastening methodFlachanschluss, M 12

mounting positionvertical, horizontal

busbar center-to-center spacing185 mm

40 mmNo

50 mmNo

60 mmNo

100 mmNo

185 mmYes

Net Weight6.354 kg

Environmental conditions

minimum-25 °C

maximum55 °C
