How can I get a price quote for Siemens 3NE9634-1C?

You can request a fast quote for Siemens 3NE9634-1C from Yılsa Engineering. Reference part number CEY-8EF3B03951D5. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3NE9634-1C in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3NE9634-1C genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3NE9634-1C?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

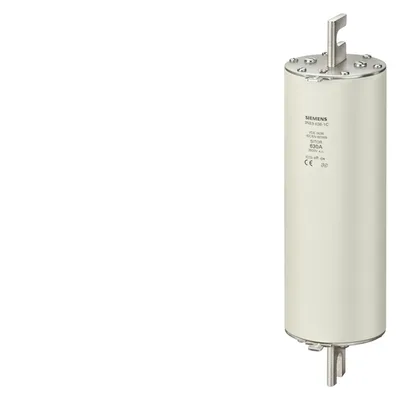

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

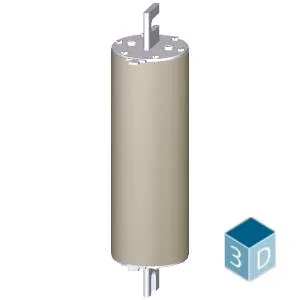

Siemens 3NE9634-1C

SITOR fuse link, with slotted blade contacts, NH3, In: 500 A, aR, Un AC: 2500 V, Un DC: 1500 V, front indicator

SiemensMFR # 3NE9634-1CSKU # CEY-8EF3B03951D5

product brand nameSENTRON

product designationSITOR fuse link

design of the productWith slotted blade contacts

design of an identification indicatorfront indicator

design of the fuse linkSITOR, LV HRC design

operating class of the fuse linkaR

Have questions?Chat on WhatsApp

About This Product

SITOR fuse link, with slotted blade contacts, NH3, In: 500 A, aR, Un AC: 2500 V, Un DC: 1500 V, front indicator

Siemens 3NE9634-1C

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationSITOR fuse link

design of the productWith slotted blade contacts

design of an identification indicatorfront indicator

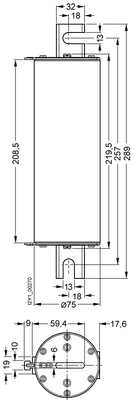

design of the switching contactwith slotted blade contacts for M12 screw fixing. mounting dimension: 260 mm

design of the fuse linkSITOR, LV HRC design

General technical data

size of fuse system according to EN 60269-1NH3

operating class of the fuse linkaR

varying load factor (WL)1

type of voltage of the operating voltageAC/DC

operating voltage at AC according to UL rated value2 500 V

Supply voltage

at AC2 500 V

at DC1 500 V

Breaking Capacity

according to IEC 60947-2 rated value100 kA

Dissipation

power loss [W]235 W

for rated value of the current at AC in hot operating state per pole235 W

maximum235 W

Product details

product descriptionwith blade contacts, silver-plated

accessories includedno

Mechanical Design

mounting positionAny, preferably vertical

Net Weight2.532 kg

Environmental conditions

minimum-20 °C

maximum50 °C

environmental category-20 to +50 at 95% relative humidity

Accessories 4

Genuine accessories that can be used with the Siemens 3NE9634-1C motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3NJ4153-3BF01	Uyumlu ürün · Fuse switch disconnectors
3NH1430	Uyumlu ürün · LV HRC fuse system
3NH6420	Uyumlu ürün · LV HRC fuse system
3NH6430	Uyumlu ürün · LV HRC fuse system
