How can I get a price quote for Siemens 3NE3201-0MK?

You can request a fast quote for Siemens 3NE3201-0MK from Yılsa Engineering. Reference part number CEY-8EF3B0395860. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3NE3201-0MK in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3NE3201-0MK genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3NE3201-0MK?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

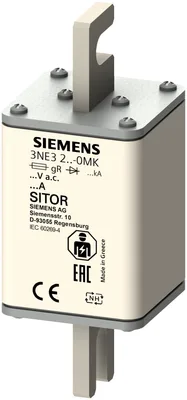

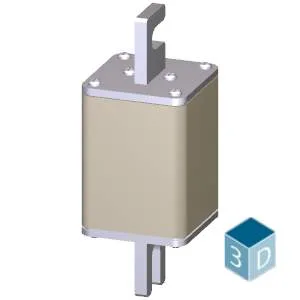

Siemens 3NE3201-0MK

SITOR fuse link, with slotted blade contacts, NH1, In: 32 A, gR, Un AC: 1000 V, Un DC: 600 V, front indicator

SiemensMFR # 3NE3201-0MKSKU # CEY-8EF3B0395860

product brand nameSENTRON

product designationSITOR fuse link

design of the productWith slotted blade contacts

design of an identification indicatorfront indicator

design of the fuse linkSITOR, LV HRC design

operating class of the fuse linkgR

Have questions?Chat on WhatsApp

About This Product

SITOR fuse link, with slotted blade contacts, NH1, In: 32 A, gR, Un AC: 1000 V, Un DC: 600 V, front indicator

Siemens 3NE3201-0MK

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationSITOR fuse link

design of the productWith slotted blade contacts

design of an identification indicatorfront indicator

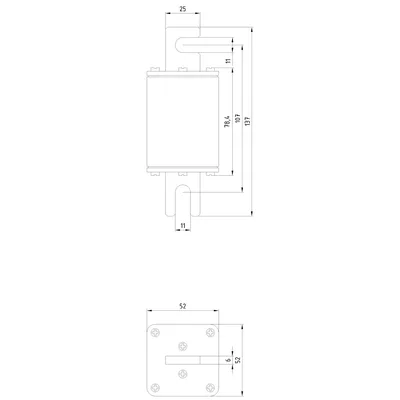

design of the switching contactwith slotted blade contacts for M10 screw fixing. mounting dimension: 110 mm. or for installation in LV HRC fuse bases or switch disconnectors

design of the fuse linkSITOR, LV HRC design

General technical data

size of fuse system according to EN 60269-1NH1

operating class of the fuse linkgR

type of voltage of the operating voltageAC/DC

Supply voltage

at AC1 000 V

at DC600 V

Breaking Capacity

at DC according to IEC 60947-2 rated value50 kA

according to IEC 60947-2 rated value50 kA

Dissipation

power loss [W]9 W

for rated value of the current at AC in hot operating state per pole9 W

maximum9 W

Product details

product descriptionwith bolt-on links, silver-plated

accessories includedno

Mechanical Design

mounting positionAny, preferably vertical

Net Weight579 g

Environmental conditions

minimum-20 °C

maximum50 °C

environmental category-20 to +50 at 95% relative humidity

Accessories 6

Genuine accessories that can be used with the Siemens 3NE3201-0MK motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3NH1230	Uyumlu ürün · LV HRC fuse system
3NH2230	Uyumlu ürün · LV HRC fuse system
3NH6220	Uyumlu ürün · LV HRC fuse system
3NH6230	Uyumlu ürün · LV HRC fuse system
3NH8230	Uyumlu ürün · LV HRC fuse system
3NH5463	Seçmeli zorunlu ürün · LV HRC fuse system
