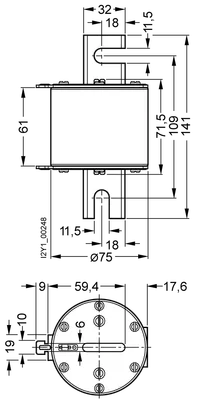

Siemens 3NC8423-3C

SITOR fuse link, with slotted blade contacts, NH3, In: 150 A, gR, Un AC: 690 V, Un DC: 440 V, front indicator

SiemensMFR # 3NC8423-3CSKU # CEY-8EF3B030C33B

product brand nameSENTRON

product designationSITOR fuse link

design of the productWith slotted blade contacts

design of an identification indicatorfront indicator

design of the fuse linkSITOR, LV HRC design

operating class of the fuse linkgR

Have questions?Chat on WhatsApp

About This Product

SITOR fuse link, with slotted blade contacts, NH3, In: 150 A, gR, Un AC: 690 V, Un DC: 440 V, front indicator

Siemens 3NC8423-3C

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationSITOR fuse link

design of the productWith slotted blade contacts

design of an identification indicatorfront indicator

design of the switching contactwith slotted blade contacts for M10 screw fixing. mounting dimension: 110 mm. or for installation in LV HRC fuse bases or switch disconnectors

design of the fuse linkSITOR, LV HRC design

General technical data

size of fuse system according to EN 60269-1NH3

operating class of the fuse linkgR

varying load factor (WL)0.85

type of voltage of the operating voltageAC/DC

operating voltage at AC according to UL rated value690 V

Supply voltage

at AC690 V

at DC440 V

Breaking Capacity

according to IEC 60947-2 rated value100 kA

Dissipation

power loss [W]40 W

for rated value of the current at AC in hot operating state per pole40 W

maximum40 W

Product details

product descriptionwith blade contacts, silver-plated

accessories includedno

Mechanical Design

mounting positionAny, preferably vertical

Net Weight1.063 kg

Environmental conditions

minimum-20 °C

maximum50 °C

environmental category-20 to +50 at 95% relative humidity

Accessories 4

Genuine accessories that can be used with the Siemens 3NC8423-3C motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3NH6420	Uyumlu ürün · LV HRC fuse system
3NH1430	Uyumlu ürün · LV HRC fuse system
3NH6430	Uyumlu ürün · LV HRC fuse system
3NH5463	Seçmeli zorunlu ürün · LV HRC fuse system
