How can I get a price quote for Siemens 3MH7040-1AQ00?

You can request a fast quote for Siemens 3MH7040-1AQ00 from Yılsa Engineering. Reference part number YLSTEYVQA9TJE8. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 3MH7040-1AQ00 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 3MH7040-1AQ00 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 3MH7040-1AQ00?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

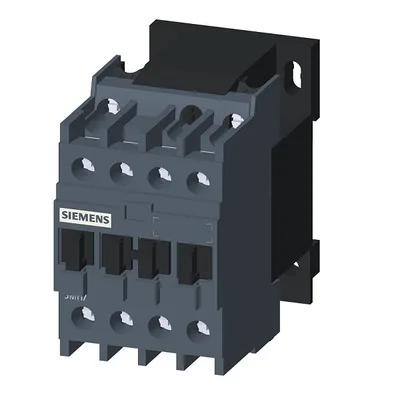

Siemens 3MH7040-1AQ00

Contactor Relay 4NO AC380V 50Hz Auxiliary circuit: Screw

SiemensMFR # 3MH7040-1AQ00SKU # YLSTEYVQA9TJE8

product brand nameSINOVA

product designationContactor relay

size of contactor0

product extension auxiliary switchYes

degree of pollution3

of auxiliary circuit rated value6 kV

Have questions?Chat on WhatsApp

About This Product

Siemens 3MH7040-1AQ00 (Contactor Relay 4NO AC380V 50Hz Auxiliary circuit: Screw) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Siemens 3MH7040-1AQ00 — price, stock availability and technical specifications.

Siemens 3MH7040-1AQ00

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSINOVA

product designationContactor relay

General technical data

size of contactor0

product extension auxiliary switchYes

of auxiliary circuit with degree of pollution 3 rated value1 000 V

degree of pollution3

of auxiliary circuit rated value6 kV

on the frontIP20

of contactor typical10 000 000

reference code according to IEC 81346-2K

Substance Prohibitance (day/month/year)07/01/2022

Net Weight0.325 kg

Ambient conditions

installation altitude at height above sea level maximum2 000 m

during operation-5 ... +55 °C

during storage-25 ... +70 °C

relative humidity minimum10 %

relative humidity at 55 °C according to IEC 60068-2-30 maximum95 %

Main circuit

at AC1 800 1/h

Control circuit/ Control

type of voltage of the control supply voltageAC

at 50 Hz rated value380 V

at 50 Hz0.85 ... 1.1

at 50 Hz70 V·A

at 50 Hz0.75

at 60 Hz0.75

at 50 Hz11 V·A

closing delay at AC7 ... 22 ms

opening delay at AC5 ... 20 ms

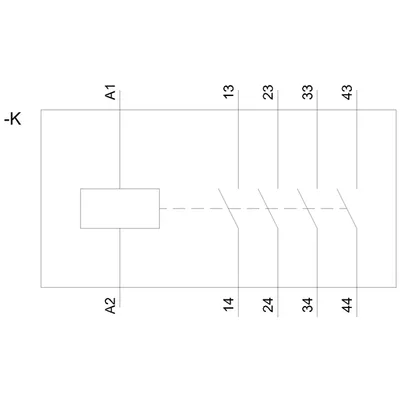

Auxiliary circuit

instantaneous contact4

identification number and letter for switching elements40 E

operational current at AC-12 maximum10 A

at 230 V rated value6 A

at 400 V rated value3 A

at 500 V rated value2 A

at 690 V rated value1 A

at 24 V rated value6 A

at 110 V rated value3 A

at 220 V rated value1 A

operating frequency at DC-12 maximum800 1/h

at 24 V rated value6 A

at 110 V rated value1 A

at 220 V rated value0.3 A

at 600 V rated value0.1 A

operating frequency at DC-13 maximum800 1/h

Short-circuit protection

for short-circuit protection of the auxiliary switch requiredfuse gG: 10 A

mounting position22.5° inclination forward and backward & 360° rotation, in relation to normal vertical mounting plane

fastening methodscrew and snap-on mounting onto 35 mm DIN rail

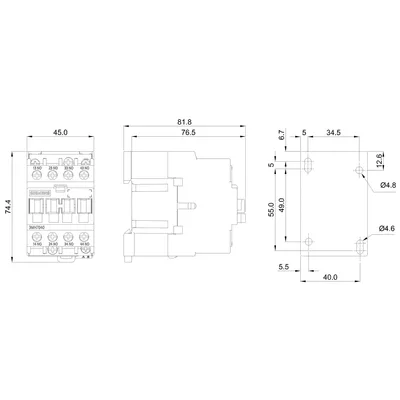

height74.5 mm

width45 mm

depth82 mm

Connections/ Terminals

for auxiliary and control circuitscrew-type terminals

— solid or stranded1x (1 ... 4mm²), 2x (1 ... 4mm²)

— finely stranded with core end processing1x (1.0 ... 2.5 mm²), 2x (1.0 ... 1.5 mm²)

for auxiliary contacts with screw-type terminals1.2 N·m

of the auxiliary and control contactsM3.5

Safety related data

mirror contact according to IEC 60947-4-1No

Accessories 14

Genuine accessories that can be used with the Siemens 3MH7040-1AQ00 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3MH7901-0CT10	Aksesuar
3MH7902-0CT10	Aksesuar
3MH7904-0CT10	Aksesuar
3MH7910-0CT10	Aksesuar
3MH7911-0CL10	Aksesuar
3MH7911-0CT10	Aksesuar
3MH7913-0CT10	Aksesuar
3MH7920-0CL10	Aksesuar
3MH7920-0CT10	Aksesuar
3MH7922-0CT10	Aksesuar
3MH7931-0CT10	Aksesuar
3MH7940-0CT10	Aksesuar
3MT7900-0LQ01	Aksesuar
3MT7900-1SV21	Aksesuar
