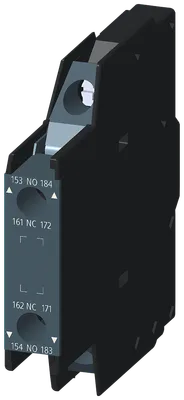

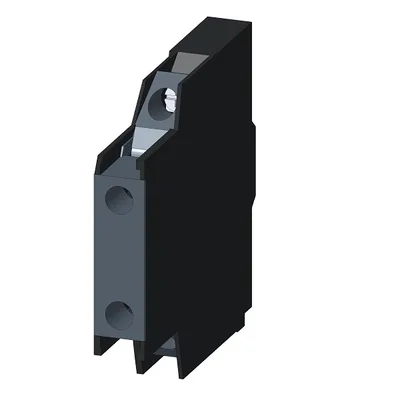

Siemens 3MH7911-0CL10

Auxiliary switch lateral 1 NO+1 NC Current path for 3MT7 and 3MH7 Contactor Screw terminal

SiemensMFR # 3MH7911-0CL10SKU # YLSKEZ4MJSSXYU

product brand nameSINOVA

product designationauxiliary switch

size of contactor0 to 4

surge voltage resistance rated value6 kV

protection class IP on the frontIP20

Substance Prohibitance (day/month/year)07/01/2022

Have questions?Chat on WhatsApp

About This Product

Auxiliary switch lateral 1 NO+1 NC Current path for 3MT7 and 3MH7 Contactor Screw terminal

Siemens 3MH7911-0CL10

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSINOVA

product designationauxiliary switch

suitability for use3MH7 Contactor relay and 3MT7 Power contactor

General technical data

size of contactor0 to 4

insulation voltage with degree of pollution 3 at AC rated value690 V

surge voltage resistance rated value6 kV

protection class IP on the frontIP20

mechanical service life (operating cycles) typical10 000 000

electrical endurance (operating cycles) at AC-15 at 230 V typical100 000

Substance Prohibitance (day/month/year)07/01/2022

Net Weight0.044 kg

Ambient conditions

during operation-5 ... +55 °C

during storage-25 ... +70 °C

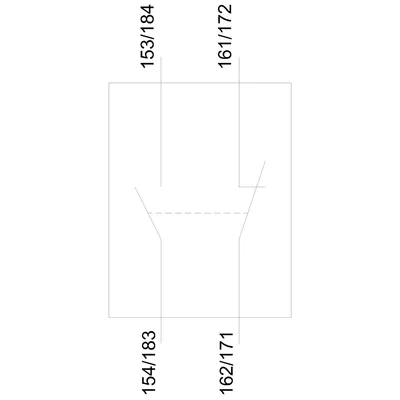

Auxiliary circuit

number of NC contacts for auxiliary contacts instantaneous contact1

number of NO contacts for auxiliary contacts instantaneous contact1

at 24 V10 A

at 230 V10 A

operational current of auxiliary contacts at AC-12 maximum10 A

at 24 V6 A

at 230 V6 A

at 400 V3 A

at 690 V1 A

at 24 V6 A

at 110 V3 A

at 220 V1 A

at 24 V6 A

at 110 V1 A

at 220 V0.3 A

at 600 V0.1 A

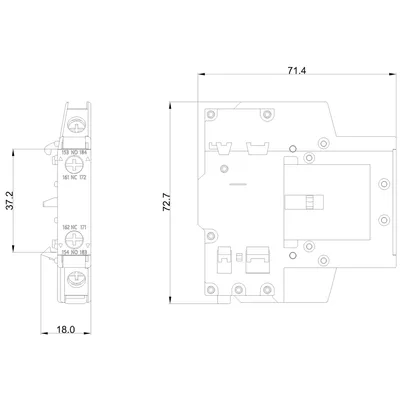

Installation/ mounting/ dimensions

fastening methodsnap-on mounting

height73 mm

width18 mm

depth71.5 mm

Connections/ Terminals

type of electrical connection for auxiliary and control circuitscrew-type terminals

solid or stranded1x (1 ... 4 mm²), 2x (1 ... 4 mm²)

finely stranded with core end processing1x (1.0 ... 2.5 mm²), 2x (1.0 ... 1.5 mm²)
