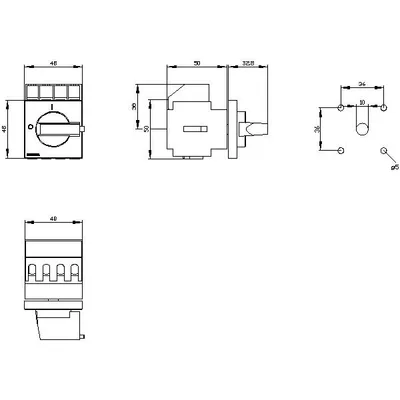

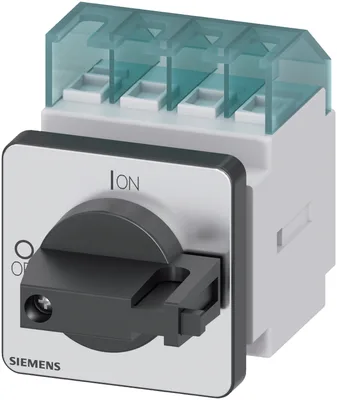

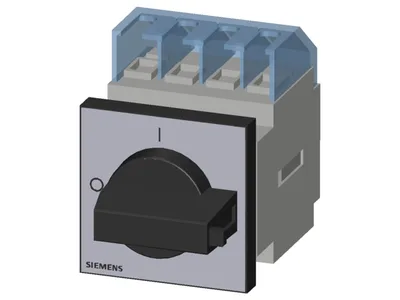

Siemens 3LD2022-0TK11

SENTRON, switch disconnector 3LD, main switch, 3-pole, Iu: 16 A, operating power / at AC-23 A at 400 V: 7.5 kW, front-mounted, knob-operated mechanism, black, 4-hole mounting of the handle

SiemensMFR # 3LD2022-0TK11SKU # CEY-8EF3B03088A4

product brand nameSENTRON

product designationSwitch disconnector

design of the productMain switch

type of switchfront mounted

design of the actuating elementselector switch

color of the actuating elementblack

Have questions?Chat on WhatsApp

About This Product

SENTRON, switch disconnector 3LD, main switch, 3-pole, Iu: 16 A, operating power / at AC-23 A at 400 V: 7.5 kW, front-mounted, knob-operated mechanism, black, 4-hole mounting of the handle

Siemens 3LD2022-0TK11

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Model

product brand nameSENTRON

product designationSwitch disconnector

design of the productMain switch

display version for switch position indicator manual operation1 ON - 0 OFF

type of switchfront mounted

design of the actuating elementselector switch

color of the actuating elementblack

design of handleknob-operated mechanism, black

type of the driving mechanism motor driveNo

General technical data

number of poles3

size of switch disconnector1

mechanical service life (operating cycles) typical100 000

at AC-23 A at 690 V6 000

operating frequency maximum50 1/h

degree of pollution3

Voltage

insulation voltage rated value690 V

surge voltage resistance rated value6 kV

at AC rated value690 V

minimum50 Hz

maximum60 Hz

Protection class

protection class IPIP65

degree of protection NEMA rating1, 3R, 4X, 12

protection class IP on the frontIP65

Dissipation

power loss [W] for rated value of the current at AC in hot operating state per pole0.33 W

Main circuit

at AC-21 at 690 V rated value16 A

at AC-21 A at 240 V rated value16 A

at AC-21 A at 400 V rated value16 A

at AC-21 A at 440 V rated value16 A

at AC-23 A at 400 V rated value16 A

at AC-23 A at 240 V rated value4 kW

at AC-23 A at 400 V rated value8 kW

at AC-23 A at 440 V rated value7.5 kW

at AC-23 A at 690 V rated value8 kW

at AC-3 at 240 V rated value3 kW

at AC-3 at 400 V rated value6 kW

at AC-3 at 690 V rated value5.5 kW

Auxiliary circuit

number of CO contacts for auxiliary contacts0

number of NC contacts for auxiliary contacts0

number of NO contacts for auxiliary contacts0

operating voltage of auxiliary contacts at AC maximum500 V

continuous current of the auxiliary contact rated value10 A

insulation voltage of the auxiliary switch rated value500 V

Suitability

suitability for use main switchYes

suitability for use switch disconnectorYes

suitability for use EMERGENCY OFF switchNo

suitability for use maintenance/repair switchYes

Product details

product feature can be locked into OFF positionYes

Accessories

motor driveNo

voltage triggerNo

number of connectable NC contacts for auxiliary contacts attachable maximum3

number of connectable NO contacts for auxiliary contacts attachable maximum3

number of connectable CO contacts for auxiliary contacts attachable maximum0

number of bracket locks maximum2

hasp thickness of the bracket locks4 ... 6 mm

Short circuit

at 690 V by gG fuse rated value50 kA

at 240 V for combination switch + gG fuse maximum3 kA

at 440 V for combination switch + gG fuse maximum3 kA

at 690 V for combination switch + gG fuse maximum permissible3 kA

at 240 V for combination switch + gG fuse maximum2.5 kA²·s

at 440 V for combination switch + gG fuse maximum2.5 kA²·s

at 690 V for combination switch + gG fuse maximum3 kA²·s

for short-circuit protection of the main circuit requiredfuse gL/gG: 20 A

for short-circuit protection of the auxiliary switch requiredfuse gL/gG: 10 A

operational current of upstream fuse rated value20 A

according UL

operational current at AC according to UL 508/UL 60947-4-1 rated value16 A

operating voltage at AC at 50/60 Hz according to UL 508/UL 60947-4-1 rated value600 V

active power [hp] at AC at 480 V according to UL 508/UL 60947-4-1 rated value7.5

active power [hp] at AC at 600 V according to UL 508/UL 60947-4-1 rated value10

short-time withstand current (SCCR) at 600 V according to UL 508/UL 60947-4-15 kA

continuous current of upstream fuse according to UL rated value50 A

type of fuse according to ULRK5

Connections

solid1x (1...6mm²)

finely stranded with core end processing1x (1...4mm²)

stranded1x (1..6mm²)

solidlateral auxiliary switch 2x (0,75 ... 2,5mm²), 1x 4mm²; front auxiliary switch 1x (0,75 ... 2,5mm²)

finely stranded with core end processinglateral auxiliary switch 2x (0,75 ... 1,5mm²), 1x 2,5mm²; front auxiliary switch 1x 2,5mm²

strandedlateral auxiliary switch 2x (0,75 ... 2,5mm²), 1x 4mm²; front auxiliary switch 1x (0,75 ... 2,5mm²)

for main current circuitbox terminal

for auxiliary contactsconnection terminals

Mechanical Design

height66 mm

width49 mm

depth90 mm

type of devicefixed mounting

fastening methodBuilt-in unit fixed-mounted version

4-hole front mountingYes

front mounting with central attachmentNo

rail mountingNo

Net Weight181 g

Environmental conditions

minimum-25 °C

maximum55 °C

minimum-25 °C

maximum55 °C

Accessories 8

Genuine accessories that can be used with the Siemens 3LD2022-0TK11 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3LD9200-2B	Aksesuar · Main and EMERGENCY OFF switch
3LD9286-4A	Aksesuar · Main and EMERGENCY OFF switch
3LD9286-1A	Aksesuar · Main and EMERGENCY OFF switch
3LD9280-5DF	Aksesuar · Main and EMERGENCY OFF switch
3LD9280-5D	Aksesuar · Main and EMERGENCY OFF switch
3LD9200-5BF	Aksesuar · Main and EMERGENCY OFF switch
3LD9200-5B	Aksesuar · Main and EMERGENCY OFF switch
3LD9224-1B	Bileşen · Main and EMERGENCY OFF switch
