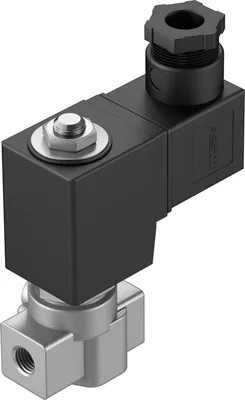

FESTO VZWD-L-M22C-M-G18-10-V-1P4-90-R1

Solenoid valve. No differential pressure required. Versatile connection options. High pressure range. Directly actuated function

FESTOMFR # VZWD-L-M22C-M-G18-10-V-1P4-90-R1SKU # CEY-937FC781B062

DesignDirectly actuated poppet valve

Type of actuationElectrical

Sealing principleSoft

Mounting positionAny

Type of mountingInline installation

Connection Process valveG1/8

Have questions?Chat on WhatsApp

About This Product

Solenoid valve. No differential pressure required. Versatile connection options. High pressure range. Directly actuated function

FESTO VZWD-L-M22C-M-G18-10-V-1P4-90-R1

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignDirectly actuated poppet valve

Type of actuationElectrical

Sealing principleSoft

Mounting positionAny

Type of mountingInline installation

Connection Process valveG1/8

Electrical connectionPlug, To EN 175301-803, Square design

Nominal size1

Valve function2/2-way, single solenoid, closed

Manual overrideNone

Flow directionNon-reversible

MediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gases, Mineral oil, Water, Neutral fluids, Other media on request

Nominal pressure PN100

Pressure difference0

Characteristic coil data24 V DC: 11.0 W

Insulation material classH

Permissible voltage fluctuations+/-10%

Duty cycle100%

Type of resetMechanical spring

Type of pilotingDirect

Symbol00992979

Medium pressure0, 9

Medium pressure0, 90

Medium pressure0, 1305

Max. viscosity22

Media temperature-10, 80

Ambient temperature-10, 35

Leakage rate to EN 12266-1A

Flow rate Kv0.06

Standard nominal flow rate (standardised to DIN 1343)60

Switching time on20

Switching time off18

Note on materialsRoHS compliant

LABS (PWIS) conformityVDMA24364 zone III

Material housingHigh-alloy stainless steel

Material number housing1,4305

Material sealsFluoro rubber

Material plunger tubeHigh-alloy steel

Product weight500

Degree of protectionIP65

Corrosion resistance class CRC3 - high corrosion stress

Max. tightening torque for connecting thread10

Max. tightening torque for coil fastening2

Accessories 17

Genuine accessories that can be used with the FESTO VZWD-L-M22C-M-G18-10-V-1P4-90-R1 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NEBA-M8G3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-2.5-N-LE3	Connecting cable · Connecting cables
KMC-1-24DC-2,5-LED	Connecting cable · Connecting cables
KMC-1-230AC-2,5	Connecting cable · Connecting cables
KMC-1-24DC-5-LED	Connecting cable · Connecting cables
KMC-1-230AC-5	Connecting cable · Connecting cables
KMC-1-24-10-LED	Connecting cable · Connecting cables
NEDY-	Distributor · Electrical accessories
NEDY-L2R1-V1-A1W4L-U-0.3L-M12G4-2.5R	Distributor · Electrical accessories
NEBA-M8G3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-10-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-10-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3P-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3P-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3N-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3N-U-5-N-LE3	Connecting cable · Connecting cables
