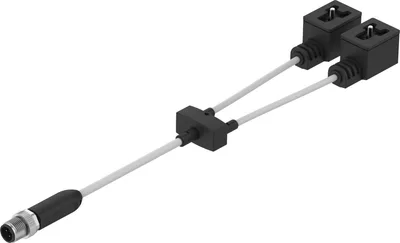

Festo NEDY-L2R1-V1-A1W4L-U-0.3L-M12G4-2.5R

Distributor. Collecting signals between field devices (sensors) and double-assigned controller inputs. Distributing signals between double-assigned controller outputs and field devices (actuators, e.g. valves)

FestoMFR # NEDY-L2R1-V1-A1W4L-U-0.3L-M12G4-2.5RSKU # YLSXE30TFIONJFB

Based on standardEN 61076-2-101

DesignY-distributor with cables on both sides

Distrubution2 to 1

Signal status displayYellow LED

Cable designationWith inscription label holder

Product weight123

Have questions?Chat on WhatsApp

About This Product

Festo NEDY-L2R1-V1-A1W4L-U-0.3L-M12G4-2.5R

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Based on standardEN 61076-2-101

DesignY-distributor with cables on both sides

Distrubution2 to 1

Signal status displayYellow LED

Cable designationWith inscription label holder

Type of mountingVia through-hole for M2 screw, With accessories

Product weight123

Electrical connection 1, functionControl side

Electrical connection 1, designRound

Electrical connection 1, connection typePlug

Electrical connection 1, cable outletStraight

Electrical connection 1, connector systemM12x1, A-coded to EN 61076-2-101

Electrical connection 1, number of connections/cores4

Electrical connection 1, used connections/cores3

Electrical connection 1, type of mountingScrew-type lock with 13 mm hexagon and longitudinal knurl, Rotatable

Electrical connection 1, compatible type of mountingCompatible with rotatable/non-rotatable screw-type lock

Electrical connection 1, connection pattern00995635

Electrical connection 2, functionField device side

Electrical connection 2, designSquare

Electrical connection 2, connection type2x socket

Electrical connection 2, cable outletAngled

Electrical connection 2, connector systemPlug pattern type A to EN 175301-803

Electrical connection 2, number of connections/cores4

Electrical connection 2, used connections/cores2

electrical connection 2, type of mountingOn solenoid valve with M3 central screw

Electrical connection 2, connection pattern00995629

Operational voltage range DC20.4, 27.6

Current rating at 40° C4

Immunity to surge0.8

Cable length 12.5

Cable length 20.3

Cable characteristicSuitable for energy chains/robot applications

Test conditions cableBending strength: to Festo standard, Test conditions on request, Torsional strength: > 300,000 cycles, ±270°/0.1 m, Energy chain: > 5 million cycles, bending radius 28 mm

Min. bending radius with free moving insert 139

Min. bending radius with free moving insert 239

Cable diameter 13.8

Cable diameter 23.8

Nominal cross section conductor0.25

Degree of protectionIP65, IP67

Ambient temperature-20, 80

Note on ambient temperature-10 - 40°C with mounting via through-hole

Ambient temperature with moving cable-20, 80

Storage temperature-20, 80

CE mark (see declaration of conformity)In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

LABS (PWIS) conformityVDMA24364-B2-L

Note on materialsRoHS compliant, Free of halogen, Free of phosphoric acid ester

Pollution degree3

Corrosion resistance class CRC1 - Low corrosion stress

Material cable sheathTPE-U(PUR)

Cable sheath colourGrey

Material housingPA, Makrolon®, TPE-U(PUR)

Housing colourBlack

Material sealsNBR

Material electrical contactGold-plated copper alloy, Silver-plated copper alloy

Material threaded sleeveDie-cast zinc
