How can I get a price quote for Festo VZBE-3/4-T-63-T-2-F0304-M-V15V15?

You can request a fast quote for Festo VZBE-3/4-T-63-T-2-F0304-M-V15V15 from Yılsa Engineering. Reference part number YLSKOVQ8ZJJHQOR. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo VZBE-3/4-T-63-T-2-F0304-M-V15V15 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo VZBE-3/4-T-63-T-2-F0304-M-V15V15 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo VZBE-3/4-T-63-T-2-F0304-M-V15V15?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

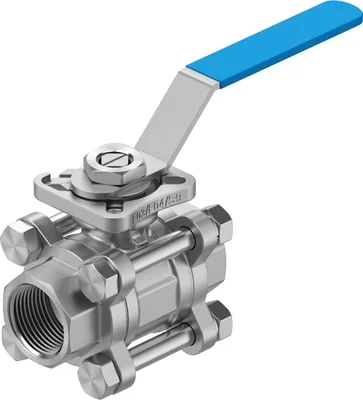

Festo VZBE-3/4-T-63-T-2-F0304-M-V15V15

Ball valve. 2-way manual, with lockable hand lever. 2- and 3-way with ISO 5211 head flange, with optional lockable hand lever. Stainless steel design. Pipe thread according to ASME B1.20.1 or welded end according to ASME B16.11. Optionally with pre-assembled hand lever

FestoMFR # VZBE-3/4-T-63-T-2-F0304-M-V15V15SKU # YLSKOVQ8ZJJHQOR

Design2-way ball valve

Type of actuationMechanical

Sealing principleSoft

Mounting positionAny

Type of mountingInline installation

Connection Process valve3/4 NPT

Have questions?Chat on WhatsApp

About This Product

Festo VZBE-3/4-T-63-T-2-F0304-M-V15V15

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Design2-way ball valve

Type of actuationMechanical

Sealing principleSoft

Mounting positionAny

Type of mountingInline installation

Connection Process valve3/4 NPT

Switching position indicatorSlot direction = flow direction

Flange hole patternF0304

Inside diameter20

Nominal size DN20

Valve function2/2

Flow directionReversible

Nominal pressure PN63

Breakaway torque at differential pressure, nominal pressure, process valve PN9

Based on standardISO 5211

Symbol00991458

MediumVapour, Compressed air to ISO 8573-1:2010 [-:-:-], Inert gases, Water, Neutral fluids

Media temperature-20, 200

Flow rate Kv15.6

Note on materialsRoHS compliant

LABS (PWIS) conformityVDMA24364 zone III

Material housingCast stainless steel

Material number housing1,4408

Material seat sealPTFE, modified

Material sealsFluoro rubber, PTFE

Material ballCast stainless steel

Material number ball1,4408

Material shaftHigh-alloy stainless steel

Material number shaft1,4401

Product weight700

ApprovalCRN

Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)

Corrosion resistance class CRC4 - Very high corrosion stress

Accessories 35

Genuine accessories that can be used with the Festo VZBE-3/4-T-63-T-2-F0304-M-V15V15 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
DAPS-0008-090-R-F03	Quarter turn actuator · Connection accessories
DAPS-0015-090-R-F03-CR	Quarter turn actuator · Connection accessories
DAPS-0030-090-R-F03-CR	Quarter turn actuator · Connection accessories
DAPS-0015-090-RS1-F03-CR	Quarter turn actuator · Connection accessories
DAPS-0015-090-RS2-F03-CR	Quarter turn actuator · Connection accessories
DAPS-0015-090-RS3-F03-CR	Quarter turn actuator · Connection accessories
DAPS-0015-090-RS4-F03-CR	Quarter turn actuator · Connection accessories
DFPD-10-	Quarter turn actuator · Connection accessories
DFPD-10-RP-90-RD-F03	Quarter turn actuator · Connection accessories
DFPD-10-RP-90-RD-F03-R3-EP	Quarter turn actuator · Connection accessories
DFPD-20-RP-90-RS30-F03	Quarter turn actuator · Connection accessories
DFPD-20-RP-90-RS60-F03	Quarter turn actuator · Connection accessories
DFPD-20-RP-90-RS30-F03-R3-EP	Quarter turn actuator · Connection accessories
DFPD-20-RP-90-RS60-F03-R3-EP	Quarter turn actuator · Connection accessories
DFPD-10-RP-90-RD-F04	Quarter turn actuator · Connection accessories
DFPD-10-RP-90-RD-F04-R3-EP	Quarter turn actuator · Connection accessories
DFPD-N-10-RP-90-RD-F03	Quarter turn actuator · Connection accessories
DFPD-N-10-RP-90-RD-F04	Quarter turn actuator · Connection accessories
DFPD-N-10-RP-90-RD-F03-R3-EP	Quarter turn actuator · Connection accessories
DFPD-N-10-RP-90-RD-F04-R3-EP	Quarter turn actuator · Connection accessories
DFPD-N-20-RP-90-RS30-F03	Quarter turn actuator · Connection accessories
DFPD-N-20-RP-90-RS60-F03	Quarter turn actuator · Connection accessories
DFPD-N-20-RP-90-RS30-F03-R3-EP	Quarter turn actuator · Connection accessories
DFPD-N-20-RP-90-RS60-F03-R3-EP	Quarter turn actuator · Connection accessories
DARQ-R-A-S11-S9-11	Reducing sleeve (square) · Mounting accessories
DARQ-R-A-S14-S9-16	Reducing sleeve (square) · Mounting accessories
DARQ-R-A-S11-S9-11-P5	Reducing sleeve (square) · Mounting accessories
DARQ-R-A-S14-S9-16-P5	Reducing sleeve (square) · Mounting accessories
DARQ-R-A-S11-S9-11-P10	Reducing sleeve (square) · Mounting accessories
DARQ-R-A-S14-S9-16-P10	Reducing sleeve (square) · Mounting accessories
DARQ-R-A-S11-S9-11-P50	Reducing sleeve (square) · Mounting accessories
DARQ-R-A-S14-S9-16-P50	Reducing sleeve (square) · Mounting accessories
DARQ-K-V-F04S11-F03S9-R1	Mounting kit · Mounting accessories
DARQ-K-V-F05S14-F03S9-R1	Mounting kit · Mounting accessories
DARQ-R-A-S17-S9-17	Reducing sleeve · Mounting accessories
