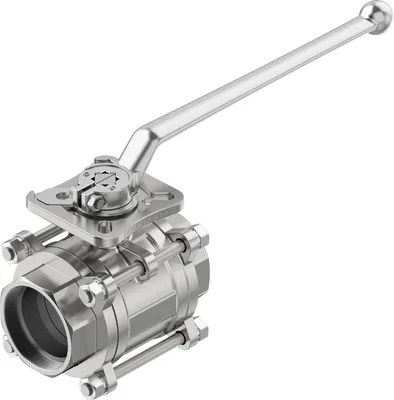

Festo VZBE-21/2-WA-63-T-2-F0710-M-V15V15
Ball valve. 2-way manual, with lockable hand lever. 2- and 3-way with ISO 5211 head flange, with optional lockable hand lever. Stainless steel design. Pipe thread according to ASME B1.20.1 or welded end according to ASME B16.11. Optionally with pre-assembled hand lever
Design2-way ball valve with hand lever
Type of actuationMechanical
Sealing principleSoft
Mounting positionAny
Type of mountingInline installation
Connection Process valveWeld-on end to ASME B16.11
About This Product
Ball valve. 2-way manual, with lockable hand lever. 2- and 3-way with ISO 5211 head flange, with optional lockable hand lever. Stainless steel design. Pipe thread according to ASME B1.20.1 or welded end according to ASME B16.11. Optionally with pre-assembled hand lever
Festo VZBE-21/2-WA-63-T-2-F0710-M-V15V15
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Design2-way ball valve with hand lever
Type of actuationMechanical
Sealing principleSoft
Mounting positionAny
Type of mountingInline installation
Connection Process valveWeld-on end to ASME B16.11
Switching position indicatorSlot direction = flow direction
Flange hole patternF07, F10
Inside diameter63
Nominal size DN65
Valve function2/2
Flow directionReversible
Nominal pressure PN63
Breakaway torque at differential pressure, nominal pressure, process valve PN79
Based on standardISO 5211
Symbol00991458
MediumVapour, Compressed air to ISO 8573-1:2010 [-:-:-], Inert gases, Water, Neutral fluids
Media temperature-20, 200
Flow rate Kv684
Note on materialsRoHS compliant
LABS (PWIS) conformityVDMA24364 zone III
Material housingCast stainless steel
Material number housing1.4408/CF8M
Material seat sealPTFE, modified
Material sealsFluoro rubber, PTFE
Material ballCast stainless steel
Material number ball1.4408/CF8M
Material shaftHigh-alloy stainless steel
Material number shaft1,4401
Product weight7400
ApprovalCRN
CE mark (see declaration of conformity)In accordance with EU Pressure Equipment Directive
Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Corrosion resistance class CRC4 - Very high corrosion stress
Accessories 90
Genuine accessories that can be used with the Festo VZBE-21/2-WA-63-T-2-F0710-M-V15V15 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| DAPS-0106-090-R-F0507 | Quarter turn actuator · Connection accessories | |
| DAPS-0053-090-RS1-F0507 | Quarter turn actuator · Connection accessories | |
| DAPS-0053-090-RS2-F0507 | Quarter turn actuator · Connection accessories | |
| DAPS-0053-090-RS3-F0507 | Quarter turn actuator · Connection accessories | |
| DAPS-0053-090-RS4-F0507 | Quarter turn actuator · Connection accessories | |
| DAPS-0240-090-R-F0507-CR | Quarter turn actuator · Connection accessories | |
| DAPS-0120-090-RS1-F0507-CR | Quarter turn actuator · Connection accessories | |
| DAPS-0120-090-RS2-F0507-CR | Quarter turn actuator · Connection accessories | |
| DAPS-0120-090-RS3-F0507-CR | Quarter turn actuator · Connection accessories | |
| DAPS-0120-090-RS4-F0507-CR | Quarter turn actuator · Connection accessories | |
| DAPS-0106-090-R-F0507-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0053-090-RS2-F0507-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0053-090-RS3-F0507-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0053-090-RS4-F0507-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0106-090-R-F0507-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0106-090-R-F0507-MW-T6 | Quarter turn actuator · Connection accessories | |
| DAPS-0053-090-RS1-F0507-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0053-090-RS2-F0507-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0053-090-RS3-F0507-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0053-090-RS4-F0507-MW | Quarter turn actuator · Connection accessories | |
| DAPS-0106-090-R-F0507-T4 | Quarter turn actuator · Connection accessories | |
| DAPS-0053-090-RS4-F0507-T4 | Quarter turn actuator · Connection accessories | |
| DFPD-80- | Quarter turn actuator · Connection accessories | |
| DFPD-120- | Quarter turn actuator · Connection accessories | |
| DFPD-80-RP-90-RD-F0507 | Quarter turn actuator · Connection accessories | |
| DFPD-80-RP-90-RD-F0507-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-80-RP-90-RS30-F0507 | Quarter turn actuator · Connection accessories | |
| DFPD-80-RP-90-RS60-F0507 | Quarter turn actuator · Connection accessories | |
| DFPD-80-RP-90-RS30-F0507-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-80-RP-90-RS60-F0507-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-120-RP-90-RD-F0507 | Quarter turn actuator · Connection accessories | |
| DFPD-120-RP-90-RD-F0507-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-120-RP-90-RS30-F0507 | Quarter turn actuator · Connection accessories | |
| DFPD-120-RP-90-RS60-F0507 | Quarter turn actuator · Connection accessories | |
| DFPD-120-RP-90-RS30-F0507-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-120-RP-90-RS60-F0507-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-120-RP-180-RD-F0507 | Quarter turn actuator · Connection accessories | |
| DFPD-120-RP-135-RD-F0507 | Quarter turn actuator · Connection accessories | |
| DFPD-120-RP-120-RD-F0507 | Quarter turn actuator · Connection accessories | |
| DFPD-N-80-RP-90-RD-F0507 | Quarter turn actuator · Connection accessories | |
| DFPD-N-80-RP-90-RD-F0507-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-120-RP-90-RD-F0507 | Quarter turn actuator · Connection accessories | |
| DFPD-N-120-RP-90-RD-F0507-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-80-RP-90-RS30-F0507 | Quarter turn actuator · Connection accessories | |
| DFPD-N-80-RP-90-RS60-F0507 | Quarter turn actuator · Connection accessories | |
| DFPD-N-80-RP-90-RS30-F0507-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-80-RP-90-RS60-F0507-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-120-RP-90-RS30-F0507 | Quarter turn actuator · Connection accessories | |
| DFPD-N-120-RP-90-RS60-F0507 | Quarter turn actuator · Connection accessories | |
| DFPD-N-120-RP-90-RS30-F0507-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-120-RP-90-RS60-F0507-R3-EP | Quarter turn actuator · Connection accessories | |
| DFPD-N-40-RP-180-RD-F0507 | Quarter turn actuator · Connection accessories | |
| DFPD-N-40-RP-135-RD-F0507 | Quarter turn actuator · Connection accessories | |
| DFPD-N-40-RP-120-RD-F0507 | Quarter turn actuator · Connection accessories | |
| DFPD-N-120-RP-180-RD-F0507 | Quarter turn actuator · Connection accessories | |
| DFPD-N-120-RP-135-RD-F0507 | Quarter turn actuator · Connection accessories | |
| DFPD-N-120-RP-120-RD-F0507 | Quarter turn actuator · Connection accessories | |
| DARQ-R-A-S22-S17-22 | Reducing sleeve (square) · Mounting accessories | |
| DARQ-R-A-S22-S17-22-P5 | Reducing sleeve (square) · Mounting accessories | |
| DARQ-R-A-S22-S17-22-P10 | Reducing sleeve (square) · Mounting accessories | |
| DARQ-R-A-S22-S17-22-P50 | Reducing sleeve (square) · Mounting accessories | |
| DARQ-R-A-S27-S17-27 | Reducing sleeve (square) · Mounting accessories | |
| DARQ-K-V-F10S22-F07S17-R1 | Mounting kit · Mounting accessories | |
| DFPD-80-RP-90-RS35-F07-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-80-RP-90-RS45-F07-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-80-RP-90-RS60-F07-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-N-80-RP-90-RS35-F07-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-N-80-RP-90-RS45-F07-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-N-80-RP-90-RS60-F07-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-80-RP-90-RS35-F07-R3-C-VDE2 | Quarter turn actuator · Connection accessories | |
| DFPD-80-RP-90-RS45-F07-R3-C-VDE2 | Quarter turn actuator · Connection accessories | |
| DFPD-80-RP-90-RS60-F07-R3-C-VDE2 | Quarter turn actuator · Connection accessories | |
| DFPD-120-RP-90-RS35-F07-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-120-RP-90-RS45-F07-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-120-RP-90-RS60-F07-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-N-120-RP-90-RS35-F07-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-N-120-RP-90-RS45-F07-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-N-120-RP-90-RS60-F07-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-120-RP-90-RS35-F07-R3-C-VDE2 | Quarter turn actuator · Connection accessories | |
| DFPD-120-RP-90-RS45-F07-R3-C-VDE2 | Quarter turn actuator · Connection accessories | |
| DFPD-120-RP-90-RS60-F07-R3-C-VDE2 | Quarter turn actuator · Connection accessories | |
| DFPD-160-RP-90-RS35-F07-17-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-160-RP-90-RS45-F07-17-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-160-RP-90-RS60-F07-17-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-N-160-RP-90-RS35-F07-17-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-N-160-RP-90-RS45-F07-17-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-N-160-RP-90-RS60-F07-17-R3-C | Quarter turn actuator · Connection accessories | |
| DFPD-160-RP-90-RS35-F07-17-R3-C-VDE2 | Quarter turn actuator · Connection accessories | |
| DFPD-160-RP-90-RS45-F07-17-R3-C-VDE2 | Quarter turn actuator · Connection accessories | |
| DFPD-160-RP-90-RS60-F07-17-R3-C-VDE2 | Quarter turn actuator · Connection accessories |
