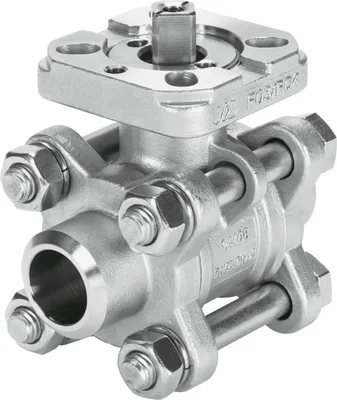

FESTO VZBA-1/2"-WW-63-T-22-F0304-V4V4T

Ball valve. Automatable 2-way or 3-way ball valve. Stainless steel design. Blow-out proof shaft. Manual operation possible using hand lever. Connecting thread to EN 10226-1. Mounting flange to ISO 5211. Use in zone 1, 21, 2, 22

FESTOMFR # VZBA-1/2"-WW-63-T-22-F0304-V4V4TSKU # CEY-937FC781DF58

Design2-way ball valve

Type of actuationMechanical

Sealing principleSoft

Mounting positionAny

Type of mountingInline installation

Connection Process valveWeld-on ends/weld-on ends

Have questions?Chat on WhatsApp

About This Product

FESTO VZBA-1/2"-WW-63-T-22-F0304-V4V4T

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Design2-way ball valve

Type of actuationMechanical

Sealing principleSoft

Mounting positionAny

Type of mountingInline installation

Connection Process valveWeld-on ends/weld-on ends

Switching position indicatorSlot direction = flow direction

Flange hole patternF03, F04

Inside diameter16

Nominal size DN15

Valve function2/2

Manual overrideNone

Flow directionReversible

Nominal pressure PN63

Actuating torque10

Based on standardISO 5211

Symbol00991458

MediumCompressed air to ISO 8573-1:2010 [-:-:-], Inert gases, Water – no steam, Neutral fluids, Other media on request

Media temperature-10, 200

Flow rate Kv19.4

Note on materialsRoHS compliant

LABS (PWIS) conformityVDMA24364 zone III

Material housingHigh-alloy stainless steel

Material number housing1,4408

Material sealsFluoro rubber, PTFE, PTFE-reinforced

Material ballHigh-alloy stainless steel

Material number ball1,4408

Material shaftHigh-alloy stainless steel

Material number shaft1,4401

Product weight600

Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)

Corrosion resistance class CRC3 - high corrosion stress

Accessories 36

Genuine accessories that can be used with the FESTO VZBA-1/2"-WW-63-T-22-F0304-V4V4T motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
VAOH-9-H9	Hand lever · Mounting accessories
DAPS-0008-090-R-F03	Quarter turn actuator · Connection accessories
DAPS-0015-090-R-F03-CR	Quarter turn actuator · Connection accessories
DAPS-0030-090-R-F03-CR	Quarter turn actuator · Connection accessories
DAPS-0015-090-RS1-F03-CR	Quarter turn actuator · Connection accessories
DAPS-0015-090-RS2-F03-CR	Quarter turn actuator · Connection accessories
DAPS-0015-090-RS3-F03-CR	Quarter turn actuator · Connection accessories
DAPS-0015-090-RS4-F03-CR	Quarter turn actuator · Connection accessories
DFPD-10-	Quarter turn actuator · Connection accessories
DFPD-10-RP-90-RD-F03	Quarter turn actuator · Connection accessories
DFPD-10-RP-90-RD-F03-R3-EP	Quarter turn actuator · Connection accessories
DFPD-20-RP-90-RS30-F03	Quarter turn actuator · Connection accessories
DFPD-20-RP-90-RS60-F03	Quarter turn actuator · Connection accessories
DFPD-20-RP-90-RS30-F03-R3-EP	Quarter turn actuator · Connection accessories
DFPD-20-RP-90-RS60-F03-R3-EP	Quarter turn actuator · Connection accessories
DFPD-10-RP-90-RD-F04	Quarter turn actuator · Connection accessories
DFPD-10-RP-90-RD-F04-R3-EP	Quarter turn actuator · Connection accessories
DFPD-N-10-RP-90-RD-F03	Quarter turn actuator · Connection accessories
DFPD-N-10-RP-90-RD-F04	Quarter turn actuator · Connection accessories
DFPD-N-10-RP-90-RD-F03-R3-EP	Quarter turn actuator · Connection accessories
DFPD-N-10-RP-90-RD-F04-R3-EP	Quarter turn actuator · Connection accessories
DFPD-N-20-RP-90-RS30-F03	Quarter turn actuator · Connection accessories
DFPD-N-20-RP-90-RS60-F03	Quarter turn actuator · Connection accessories
DFPD-N-20-RP-90-RS30-F03-R3-EP	Quarter turn actuator · Connection accessories
DFPD-N-20-RP-90-RS60-F03-R3-EP	Quarter turn actuator · Connection accessories
DARQ-R-A-S11-S9-11	Reducing sleeve (square) · Mounting accessories
DARQ-R-A-S14-S9-16	Reducing sleeve (square) · Mounting accessories
DARQ-R-A-S11-S9-11-P5	Reducing sleeve (square) · Mounting accessories
DARQ-R-A-S14-S9-16-P5	Reducing sleeve (square) · Mounting accessories
DARQ-R-A-S11-S9-11-P10	Reducing sleeve (square) · Mounting accessories
DARQ-R-A-S14-S9-16-P10	Reducing sleeve (square) · Mounting accessories
DARQ-R-A-S11-S9-11-P50	Reducing sleeve (square) · Mounting accessories
DARQ-R-A-S14-S9-16-P50	Reducing sleeve (square) · Mounting accessories
DARQ-K-V-F04S11-F03S9-R1	Mounting kit · Mounting accessories
DARQ-K-V-F05S14-F03S9-R1	Mounting kit · Mounting accessories
DARQ-R-A-S17-S9-17	Reducing sleeve · Mounting accessories
