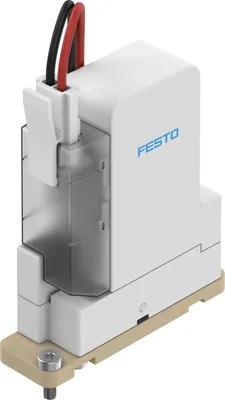

Festo VYKB-F12-M32-20-PE-5HPS

Media separated solenoid valve. Compact width of 10 mm and 12 mm for large nominal widths (1.6 mm and 2.0 mm). For dosing, aspirating and for continuous flow applications. Very easy to clean thanks to media separation. High-quality materials, therefore also suitable for aggressive media. Developed according to ISO 13485. Sustainable operation thanks to efficient control and active air shut-off

FestoMFR # VYKB-F12-M32-20-PE-5HPSSKU # YLSMTUA7ZRM7

DesignRocker valve with diaphragm seal

Sealing principleSoft

Material in contact with the mediumPEEK

Valve function3/2-way, monostable, open/closed

Nominal size2

Flow directionNon-reversible

Have questions?Chat on WhatsApp

About This Product

Festo VYKB-F12-M32-20-PE-5HPS

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignRocker valve with diaphragm seal

Sealing principleSoft

Material in contact with the mediumPEEK

Valve function3/2-way, monostable, open/closed

Nominal size2

Flow directionNon-reversible

Type of actuationElectrical

Type of pilotingDirect

Type of resetMechanical spring

Manual overrideNone

Mounting positionAny

Type of mountingVia through-hole for M3 screw

Electrical connection 1, connection typeCable with plug

Electrical connection 1, connector systemPlug pattern HP

Size12

Fluid connectionFlange

MediumLiquid media, Gaseous media

Note on the mediumObserve resistance of materials that come into contact with the media, Maximum particle size 5 µm

Internal volume60 µl

Media temperature0, 50

Media temperature for fluids0, 50

Ambient temperature0, 50

Storage temperature-20, 70

Medium pressure-0.075, 0.3

Medium pressure-0.75, 3

Medium pressure-10.875, 43.5

Overload pressure0.45

Overload pressure4.5

Overload pressure65.25

Operational voltage range DC12

Permissible voltage fluctuations-5 % / +10 %

Characteristic coil data12 V DC: low-current phase 1 W, high-current phase 5.2 W

Duty cycle100%

Max. switching frequency2

Note on switching frequencyDependent on the ambient temperature and installation state

Switching time on15

Switching time on gaseous media15

Switching time off15

Switching time off gaseous media15

Flow rate Kv0.056

Flow rate Kv0.93

Note on flow rate KvFor water as medium, Pressure difference 1 bar

Symbol00997353

Material housingPEEK

Material membraneEPDM

Material sealsEPDM

Note on materialsRoHS compliant

LABS (PWIS) conformityVDMA24364 zone III

Product weight40

Degree of protectionIP40

Corrosion resistance class CRC0 - No corrosion stress

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Accessories 12

Genuine accessories that can be used with the Festo VYKB-F12-M32-20-PE-5HPS motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
VABS-K2-12S-20-M6-P	Sub-base · Mounting accessories
VABS-K2-12S-20-G18-P	Sub-base · Mounting accessories
NPQR-DK-M5-Q4	Push-in fitting · Fittings
NPQR-DK-G18-Q6	Push-in fitting · Fittings
NEBV-HPG2-PN-0.3-N-LE2	Connecting cable · Connecting cables
QSM-M6-6	Push-in fitting · Mounting accessories
NLFA-D-U14-K1.6-PP-P10	Fitting · Mounting accessories
NLFA-D-U14-K3-PP-P10	Fitting · Mounting accessories
NLFA-D-U14-K3.2-PP-P10	Fitting · Mounting accessories
NLFA-D-U14-B1.2-PP-P10	Fitting · Mounting accessories
NLFA-D-U14-B2.1-PP-P10	Fitting · Mounting accessories
VAVC-K2-S-3-E	Seal · Mounting accessories
