How can I get a price quote for Festo NLFA-D-U14-K3.2-PP-P10?

You can request a fast quote for Festo NLFA-D-U14-K3.2-PP-P10 from Yılsa Engineering. Reference part number YLSXLN5I4V9KMM. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo NLFA-D-U14-K3.2-PP-P10 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo NLFA-D-U14-K3.2-PP-P10 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo NLFA-D-U14-K3.2-PP-P10?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

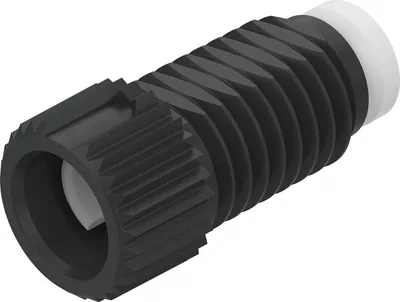

Festo NLFA-D-U14-K3.2-PP-P10

Fitting. For mounting in laboratory devices. Very easy to flush thanks to connection without dead space. For liquid and gaseous media. Also for aggressive liquid media. Materials in contact with the media: PP. For securing tubing and dosing needles. Straight design

FestoMFR # NLFA-D-U14-K3.2-PP-P10SKU # YLSXLN5I4V9KMM

Size of pack10

DesignTubing mount via clamped connection

DesignStraight design

Sizeø 8 mm

Fluid connectionUNF1/4-28

Fluid connection 2For tubing O.D. 3.2 mm (1/8")

Have questions?Chat on WhatsApp

About This Product

Festo NLFA-D-U14-K3.2-PP-P10

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size of pack10

DesignTubing mount via clamped connection

DesignStraight design

Sizeø 8 mm

Fluid connectionUNF1/4-28

Fluid connection 2For tubing O.D. 3.2 mm (1/8")

MediumLiquid media, Gaseous media

Note on the mediumObserve resistance of materials that come into contact with the media

Operating pressure complete temperature range-0.075, 0.6

Operating pressure complete temperature range-0.75, 6

Operating pressure complete temperature range-10.875, 87

Media temperature0, 50

Ambient temperature0, 50

Storage temperature-20, 70

Sealing principleHard

Mounting positionAny

Nominal torque0.15

Tolerance for nominal tightening torque±15%

Product weight0.44

Material in contact with the mediumPP

Material screwed plugReinforced PA

Note on materialsRoHS compliant

Suitable for use with foodSee supplementary material information

LABS (PWIS) conformityVDMA24364 zone III

Instructions on useSee application note (available on the Support Portal at festo.com)

Accessories 1

Genuine accessories that can be used with the Festo NLFA-D-U14-K3.2-PP-P10 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
