How can I get a price quote for Festo VYKA-F7-M32-12-PF-5YQ7?

You can request a fast quote for Festo VYKA-F7-M32-12-PF-5YQ7 from Yılsa Engineering. Reference part number YLSIMQ70RDOJN9. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo VYKA-F7-M32-12-PF-5YQ7 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo VYKA-F7-M32-12-PF-5YQ7 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo VYKA-F7-M32-12-PF-5YQ7?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

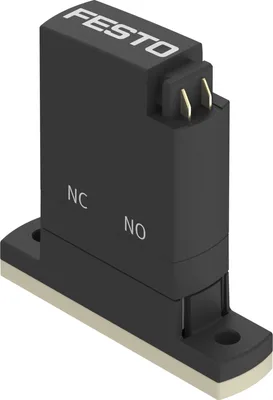

Photo may not represent actual item. Refer to name and product specs for all details.

Festo VYKA-F7-M32-12-PF-5YQ7

Media separated solenoid valve. Maximum power density and precision in the smallest of spaces (1.2 mm nominal width, with a width of only 7 mm). High repeat accuracy and precision in dosing processes, even for the smallest volumes. Very good rinsability and minimised media consumption thanks to optimised fluid chamber and small internal volume. FDA-listed materials (PEEK, EPDM, FKM, FFKM) also suitable for aggressive media. Also ideal for gas applications thanks to minimal leakage values. Optionally with push-on E-box VAVE-K1 with holding current reduction as an accessory to minimise heat input. Developed according to ISO 13485. Sustainable operation thanks to efficient control

FestoMFR # VYKA-F7-M32-12-PF-5YQ7SKU # YLSIMQ70RDOJN9

DesignRocker valve with diaphragm seal

Sealing principleSoft

Material in contact with the mediumFFPM, PEEK

Valve function3/2-way, monostable, open/closed

Nominal size1.2

Flow directionReversible with restrictions

Have questions?Chat on WhatsApp

About This Product

Festo VYKA-F7-M32-12-PF-5YQ7

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignRocker valve with diaphragm seal

Sealing principleSoft

Material in contact with the mediumFFPM, PEEK

Valve function3/2-way, monostable, open/closed

Nominal size1.2

Flow directionReversible with restrictions

Type of actuationElectrical

Type of pilotingDirect

Type of resetMechanical spring

Manual overrideNone

Mounting positionAny

Type of mountingVia through-hole for M2 screw

Electrical connection 1, connection typeSocket

Electrical connection 1, connector systemPlug pattern Q7

Electrical connection 1, number of connections/cores2

Electrical connection 1, connection pattern00997312

Size7

Grid dimension7.5

Fluid connectionFlange

MediumLiquid media, Gaseous media

Note on the mediumObserve resistance of materials that come into contact with the media, Maximum particle size 5 µm

Internal volume16 µl fluid chamber valve, 26 µl valve with fluid connections

Media temperature for fluids15, 50

Medium temperature gaseous media15, 50

Ambient temperature15, 50

Storage temperature-20, 70

Medium pressure-0.05, 0.2

Medium pressure-0.5, 2

Medium pressure-7.25, 29

Note on the medium pressureCOM: -0.25 – 2 bar / -0.025 – 0.2 MPa / -3.625 – 29 psi, NC: -0.5 - 0.5 bar / -0.05 - 0.05 MPa / -7.25 - 7.25 psi, NO: -0.5 - 0.5 bar / -0.05 - 0.05 MPa / -7.25 - 7.25 psi

Pressure difference0.2

Pressure difference2

Pressure difference29

Burst pressure2.3

Burst pressure23

Burst pressure333.5

Operational voltage range DC12, 26

Note on operational voltage range DCWith electrical sub-base VAVE-K1-…

Permissible voltage fluctuations+/-10%

Electrical power consumption3.5

Information on power consumptionLow-current phase 0.3 W, high-current phase 3.5 W for 60 ms, in combination with VAVE-K1-…

Characteristic coil data12 - 26 V DC: low-current phase 0.06 W, high-current phase 2.2 W

Insulation material classB

Duty cycle100% in conjunction with holding current reduction, Observe the notes on operating the solenoid valves.

Max. switching frequency6

Note on switching frequencyDependent on the ambient temperature and installation state, At 100% duty cycle depending on ambient temperature and installation condition. Higher switching frequencies possible with duty cycle < 100

Switch-on time for fluids9

Switching time on gaseous media9

Switch-off time for fluids9

Switching time off gaseous media9

Note on switching timeSwitching time depends on medium, temperature, medium pressure and individual operating conditions, The switching behaviour of the FFPM can be slower at temperatures below room temperature

Standard nominal flow rate (standardised to DIN 1343)11

Note on standard nominal flow rateIn case of a pressure drop of 1 -> 0 bar (gaseous media)

Flow rate Kv0.021

Flow rate Kv0.35

Note on flow rate KvFor water as medium, Pressure difference 1 bar

Water flow rate at max. operating pressure0.5 l/min

Symbol00992967

Material housingReinforced PA, PEEK, Reinforced PPA

Material membraneFFPM

Material sealsFFPM

Note on materialsRoHS compliant

LABS (PWIS) conformityVDMA24364 zone III

Product weight10.9

Degree of protectionIP40

Note on degree of protectionIn mounted state

Instructions on useFor indoor use only

Corrosion resistance class CRC0 - No corrosion stress

Accessories 12

Genuine accessories that can be used with the Festo VYKA-F7-M32-12-PF-5YQ7 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
VABS-K1-7B-12-U14-P	Sub-base · Mounting accessories
VABS-K1-7B-12-M5-P	Sub-base · Mounting accessories
NPQR-DK-M5-Q4	Push-in fitting · Push-in fittings
NPQR-DK-M5-Q6	Push-in fitting · Push-in fittings
NLFA-D-U14-K3.2-PP-P10	Fitting · Push-in fittings
NLFA-D-U14-B1.2-PP-P10	Fitting · Push-in fittings
NLFA-D-U14-B2.1-PP-P10	Fitting · Push-in fittings
NLFA-D-U14-K1.6-PP-P10	Fitting · Push-in fittings
NLFA-D-U14-K3-PP-P10	Fitting · Push-in fittings
NEBV-Q7G2-PD-0.1-N-LE2	Connecting cable · Connecting cables
NEBV-Q7G2-PD-0.5-N-LE2	Connecting cable · Connecting cables
VAVE-K1-7-5YL1-LR	E-box · Electrical accessories
