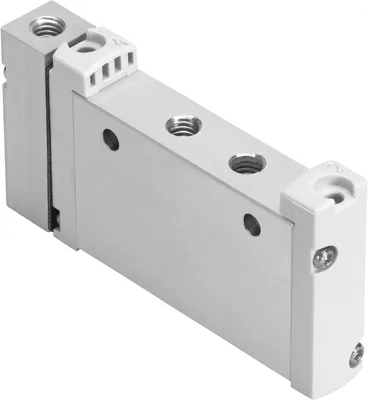

FESTO VUWG-L10-M52-M-M5

Pneumatic valve. Compact universal valve. Pneumatically actuated. High flow rate relative to its size. In-line valves can be used as individual valves or manifold valves. Can be combined on manifold rail with electric individual valves

FESTOMFR # VUWG-L10-M52-M-M5SKU # CEY-937FC781BC45

Valve function5/2-way, single solenoid

Type of actuationPneumatic

Valve size10

pneumatic working portM5

Operating pressure-0.9, 8

DesignPiston gate valve

Have questions?Chat on WhatsApp

About This Product

FESTO VUWG-L10-M52-M-M5

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function5/2-way, single solenoid

Type of actuationPneumatic

Valve size10

Standard nominal flow rate (standardised to DIN 1343)190

pneumatic working portM5

Operating pressure-0.9, 8

DesignPiston gate valve

Type of resetMechanical spring

Grid dimension10.5

Exhaust-air functionCan be throttled

Sealing principleSoft

Mounting positionAny

Manual overrideNone

Type of pilotingDirect

Flow directionReversible

Symbol00991029

lapOverlap

Pilot pressure3, 10

Suitability for vacuumYes

Switching time off16

Switching time on7

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14Class 5 according to ISO 14644-1

Media temperature-5, 50

Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Ambient temperature-5, 60

Product weight41

Type of mountingOn PR rail, With through-hole

Pilot air port 12M5

Pilot air port 14M5

Pneumatic connection, port 1M5

Pneumatic connection, port 2M5

Pneumatic connection, port 3M5

Pneumatic connection, port 4M5

Pneumatic connection, port 5M5

Note on materialsRoHS compliant

Material sealsHNBR, NBR

Material housinganodised

Accessories 18

Genuine accessories that can be used with the FESTO VUWG-L10-M52-M-M5 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PUN-H-6X1-NT	Plastic tubing · Tubes
UC-M5	Silencer · Silencer
PUN-H-6X1-BL	Plastic tubing · Tubes
PUN-H-6X1-SW	Plastic tubing · Tubes
PUN-H-6X1-TBL	Plastic tubing · Tubes
QSM-M5-6-I-R	Push-in fitting · Fittings
QSM-M5-6-I	Push-in fitting · Fittings
QSM-M5-1/4-I-U-M	Push-in fitting · Push-in fittings
QSM-M5-5/32-I-U-M	Push-in fitting · Push-in fittings
QSM-M5-3-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-4-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-6-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-3-I-R	Push-in fitting · Push-in fittings
QSM-M5-4-I-R	Push-in fitting · Push-in fittings
QSM-M5-3-I	Push-in fitting · Push-in fittings
QSM-M5-4-I	Push-in fitting · Push-in fittings
QSM-M5-1/8-I-U-M	Push-in fitting · Push-in fittings
QSM-M5-3/16-I-U-M	Push-in fitting · Push-in fittings
