How can I get a price quote for Festo VUVS-LK30-B52-D-G38-1B2+GL-S?

You can request a fast quote for Festo VUVS-LK30-B52-D-G38-1B2+GL-S from Yılsa Engineering. Reference part number YLSGWGCSBNXRBG2. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo VUVS-LK30-B52-D-G38-1B2+GL-S in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo VUVS-LK30-B52-D-G38-1B2+GL-S genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo VUVS-LK30-B52-D-G38-1B2+GL-S?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

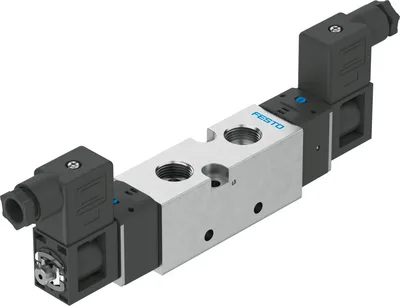

Festo VUVS-LK30-B52-D-G38-1B2+GL-S

Solenoid valve. Universal valve, sturdy and durable. Low cost with no performance limitations. Can be used as individual valves or manifold valves VTUS

FestoMFR # VUVS-LK30-B52-D-G38-1B2+GL-SSKU # YLSGWGCSBNXRBG2

Valve function5/2-way, double solenoid

Type of actuationElectrical

Valve size31

pneumatic working portG3/8

Operating voltage24 V DC

Operating pressure0.15, 0.8

Have questions?Chat on WhatsApp

About This Product

Solenoid valve. Universal valve, sturdy and durable. Low cost with no performance limitations. Can be used as individual valves or manifold valves VTUS

Festo VUVS-LK30-B52-D-G38-1B2+GL-S

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function5/2-way, double solenoid

Type of actuationElectrical

Valve size31

Standard nominal flow rate (standardised to DIN 1343)1600

pneumatic working portG3/8

Operating voltage24 V DC

Operating pressure0.15, 0.8

Operating pressure1.5, 8

DesignPiston gate valve

Degree of protectionIP65, With plug socket, To IEC 60529

Nominal size8.1

Exhaust-air functionCan be throttled

Sealing principleSoft

Mounting positionAny

Manual overrideDetenting, Non-detenting

Type of pilotingPiloted

Pilot air supplyInternal

Flow directionNon-reversible

Symbol00991005

lapOverlap

b value0.37

C value7.03

Switching time reversal10

Duty cycle100%

Max. positive test pulse with 0 signal2500

Max. negative test pulse with 1 signal1100

Characteristic coil data24 V DC: 3.3 W

Permissible voltage fluctuations+/-10%

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 1 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Media temperature-5, 50

Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Ambient temperature-5, 50

Product weight416

Electrical connectionScrew terminal

Cable diameter6, 8

Nominal cross section conductor0.5, 1.5

Type of mountingOn manifold rail, With through-hole

Breather connectionNot ducted

Pneumatic connection, port 1G3/8

Pneumatic connection, port 2G3/8

Pneumatic connection, port 3G3/8

Pneumatic connection, port 4G3/8

Pneumatic connection, port 5G3/8

Note on materialsRoHS compliant

Material sealsHNBR, NBR

Material housingWrought aluminium alloy

Material piston slideWrought aluminium alloy

Accessories 67

Genuine accessories that can be used with the Festo VUVS-LK30-B52-D-G38-1B2+GL-S motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
KMEB-1-24-2.5-LED	Plug socket with cable · Electrical accessories
VAME-B10-30-MK	Assortment of spare parts · Mounting accessories
VABM-B10-30E-G34-2	Manifold block · Connection accessories
VABM-B10-30E-G34-3	Manifold block · Connection accessories
VABM-B10-30E-G34-4	Manifold block · Connection accessories
VABM-B10-30E-G34-5	Manifold block · Connection accessories
VABM-B10-30E-G34-6	Manifold block · Connection accessories
VABM-B10-30E-G34-7	Manifold block · Connection accessories
VABM-B10-30E-G34-8	Manifold block · Connection accessories
VABM-B10-30E-G34-9	Manifold block · Connection accessories
VABM-B10-30E-G34-10	Manifold block · Connection accessories
VAMC-B10-25-CH2-S	Cover cap · General accessories
U-3/8	Silencer · Silencer
QS-G3/8-10	Push-in fitting · Fittings
QS-G3/8-10-I	Push-in fitting · Fittings
QSL-G3/8-10	Push-in L-fitting · Fittings
QSLL-G3/8-10	Push-in L-fitting, long · Fittings
PUN-H-10X1,5-NT	Plastic tubing · Tubes
PUN-H-10X1,5-BL	Plastic tubing · Tubes
PUN-H-10X1,5-TBL	Plastic tubing · Tubes
PUN-H-10X1,5-SW	Plastic tubing · Tubes
QSL-G3/8-8-50	Push-in L-fitting · Push-in fittings
QSL-G3/8-10-20	Push-in L-fitting · Push-in fittings
QS-G3/8-8-I	Push-in fitting · Push-in fittings
QS-G3/8-12-I	Push-in fitting · Push-in fittings
QSL-G3/8-8	Push-in L-fitting · Push-in fittings
QSLL-G3/8-8	Push-in L-fitting, long · Push-in fittings
ASLR-C-E4	Inscription label · General accessories
VABM-B10-30-G34-2-P53	Common supply manifold · Connection accessories
VABM-B10-30-G34-3-P53	Common supply manifold · Connection accessories
VABM-B10-30-G34-4-P53	Common supply manifold · Connection accessories
VABM-B10-30-G34-5-P53	Common supply manifold · Connection accessories
VABM-B10-30-G34-6-P53	Common supply manifold · Connection accessories
VABM-B10-30-G34-7-P53	Common supply manifold · Connection accessories
VABM-B10-30-G34-8-P53	Common supply manifold · Connection accessories
VABM-B10-30-G34-9-P53	Common supply manifold · Connection accessories
VABM-B10-30-G34-10-P53	Common supply manifold · Connection accessories
VABM-B10-30-N34-2-P53	Common supply manifold · Connection accessories
VABM-B10-30-N34-3-P53	Common supply manifold · Connection accessories
VABM-B10-30-N34-4-P53	Common supply manifold · Connection accessories
VABM-B10-30-N34-5-P53	Common supply manifold · Connection accessories
VABM-B10-30-N34-6-P53	Common supply manifold · Connection accessories
VABM-B10-30-N34-7-P53	Common supply manifold · Connection accessories
VABM-B10-30-N34-8-P53	Common supply manifold · Connection accessories
VABM-B10-30-N34-9-P53	Common supply manifold · Connection accessories
VABM-B10-30-N34-10-P53	Common supply manifold · Connection accessories
VABM-B10-30-G34-2-P53-E	Common supply manifold · Connection accessories
VABM-B10-30-G34-3-P53-E	Common supply manifold · Connection accessories
VABM-B10-30-G34-4-P53-E	Common supply manifold · Connection accessories
VABM-B10-30S-G12-2	Manifold block · Connection accessories
VABM-B10-30S-G12-3	Manifold block · Connection accessories
VABM-B10-30S-G12-4	Manifold block · Connection accessories
VABM-B10-30S-G12-5	Manifold block · Connection accessories
VABM-B10-30S-G12-6	Manifold block · Connection accessories
VABM-B10-30S-G12-7	Manifold block · Connection accessories
VABM-B10-30S-G12-8	Manifold block · Connection accessories
VABM-B10-30S-G12-9	Manifold block · Connection accessories
VABM-B10-30S-G12-10	Manifold block · Connection accessories
VABM-B10-30S-N12-2	Manifold block · Connection accessories
VABM-B10-30S-N12-3	Manifold block · Connection accessories
VABM-B10-30S-N12-4	Manifold block · Connection accessories
VABM-B10-30S-N12-5	Manifold block · Connection accessories
VABM-B10-30S-N12-6	Manifold block · Connection accessories
VABM-B10-30S-N12-7	Manifold block · Connection accessories
VABM-B10-30S-N12-8	Manifold block · Connection accessories
VABM-B10-30S-N12-9	Manifold block · Connection accessories
VABM-B10-30S-N12-10	Manifold block · Connection accessories
