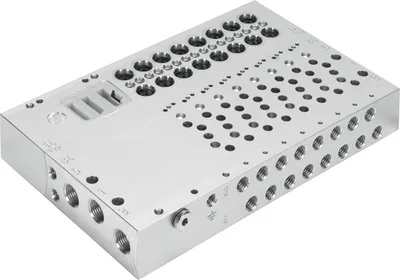

FESTO VABM-L1-10HW-G18-12-GR

Manifold rail

FESTOMFR # VABM-L1-10HW-G18-12-GRSKU # CEY-937FC781C005

Grid dimension10.5

Mounting positionAny

Max. number of valve positions12

Approvalc UL us - Recognised (Oil)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Have questions?Chat on WhatsApp

About This Product

FESTO VABM-L1-10HW-G18-12-GR (Manifold rail) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for FESTO VABM-L1-10HW-G18-12-GR — price, stock availability and technical specifications.

FESTO VABM-L1-10HW-G18-12-GR

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Grid dimension10.5

Mounting positionAny

Max. number of valve positions12

Approvalc UL us - Recognised (Oil)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)

Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1

Storage temperature-20, 60

Product weight692

Pilot air port 12/14M5

Pilot exhaust port 82/84M5

Pneumatic connection, port 1G1/8

Pneumatic connection, port 2M7

Pneumatic connection, port 3G1/8

Pneumatic connection, port 4M7

Pneumatic connection, port 5G1/8

Note on materialsRoHS compliant

Material manifold railWrought aluminium alloy

Accessories 28

Genuine accessories that can be used with the FESTO VABM-L1-10HW-G18-12-GR motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
QS-G1/8-8-I	Push-in fitting · Fittings
U-1/8	Silencer · Silencer
QSM-M7-6-I-R-100	Push-in fitting · Push-in fittings
QS-G1/8-10-I	Push-in fitting · Push-in fittings
QS-G1/8-10-I-100	Push-in fitting · Push-in fittings
QSM-M7-4-I-100	Push-in fitting · Push-in fittings
QSM-M7-6-I-R	Push-in fitting · Push-in fittings
QS-G1/8-4-I-100	Push-in fitting · Push-in fittings
QS-G1/8-6-I-100	Push-in fitting · Push-in fittings
QS-G1/8-8-I-100	Push-in fitting · Push-in fittings
QSM-M7-4-I	Push-in fitting · Push-in fittings
QSM-M7-6-I	Push-in fitting · Push-in fittings
QSM-M7-1/8-I-U-M	Push-in fitting · Push-in fittings
QSM-M7-3/16-I-U-M	Push-in fitting · Push-in fittings
QSM-M7-1/4-I-U-M	Push-in fitting · Push-in fittings
QS-G1/8-4-I	Push-in fitting · Push-in fittings
QS-G1/8-6-I	Push-in fitting · Push-in fittings
VAME-T-M4	DIN rail attachment · Mounting accessories
VAEM-L1-S-M1-25	Electrical interface · Electrical accessories
VAEM-L1-S-M1-44	Electrical interface · Electrical accessories
VAEM-L1-S-M1-25V1	Electrical interface · Electrical accessories
VAEM-L1-S-M1-25V2	Electrical interface · Electrical accessories
VAEM-L1-S-M1-25V3	Electrical interface · Electrical accessories
VAEM-L1-S-M1-25V4	Electrical interface · Electrical accessories
VAEM-L1-S-M3-50	Electrical interface · Electrical accessories
VAEM-L1-S-M3-26	Electrical interface · Electrical accessories
VAEM-L1-S-16-PT	Electrical interface · Electrical accessories
VAEM-L1-S-16-PTL	Electrical interface · Electrical accessories
