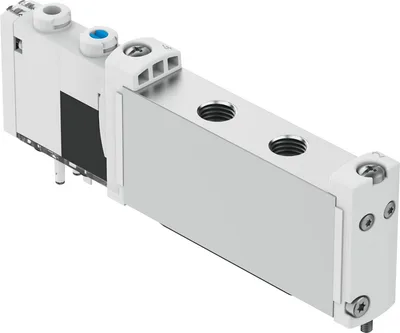

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

FESTO VUVG-S14-M52-AZT-G18-1T1L

Solenoid valve. Sub-base valve, semi in-line valve. For valve terminal VTUG with multi-pin, fieldbus interface. Variants to EU Explosion Protection Directive (ATEX)

FESTOMFR # VUVG-S14-M52-AZT-G18-1T1LSKU # CEY-937FC781C117

Valve function5/2-way, single solenoid

Type of actuationElectrical

Valve size14

pneumatic working portG1/8

Operating voltage24 V DC

Operating pressure-0.09, 1

Have questions?Chat on WhatsApp

About This Product

Solenoid valve. Sub-base valve, semi in-line valve. For valve terminal VTUG with multi-pin, fieldbus interface. Variants to EU Explosion Protection Directive (ATEX)

FESTO VUVG-S14-M52-AZT-G18-1T1L

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function5/2-way, single solenoid

Type of actuationElectrical

Valve size14

Standard nominal flow rate (standardised to DIN 1343)620

pneumatic working portG1/8

Operating voltage24 V DC

Operating pressure-0.09, 1

Operating pressure-0.9, 10

DesignPiston gate valve

Type of resetPneumatic spring

Approvalc UL us - Recognised (Oil)

Degree of protectionIP65, IP67

Exhaust-air functionCan be throttled

Sealing principleSoft

Mounting positionAny

Manual overrideDetenting, Non-detenting

Type of pilotingPiloted

Pilot air supplyExternal

Flow directionReversible

Symbol00991053

lapOverlap

Signal status displayLED

Pilot pressure0.15, 0.8

Pilot pressure1.5, 8

Max. switching frequency3

Switching time off26

Switching time on13

Duty cycle100%

Max. positive test pulse with 0 signal1600

Max. negative test pulse with 1 signal3000

Characteristic coil data22 V DC: 1.0 W

Permissible voltage fluctuations+/-10%

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature-5, 60

Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Ambient temperature-5, 60

Product weight91

Electrical connectionVia E-box

Type of mountingOn manifold rail

Pneumatic connection, port 2G1/8

Pneumatic connection, port 4G1/8

Note on materialsRoHS compliant

Material sealsHNBR, NBR

Material housingWrought aluminium alloy

Accessories 33

Genuine accessories that can be used with the FESTO VUVG-S14-M52-AZT-G18-1T1L motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
QS-G1/8-6-I	Push-in fitting · Fittings
VABM-L1-14G-G14-4-GR	Manifold rail · Connection accessories
VABM-L1-14G-G14-8-GR	Manifold rail · Connection accessories
VABM-L1-14G-G14-16-GR	Manifold rail · Connection accessories
VABM-L1-14G-G14-24-GR	Manifold rail · Connection accessories
VABM-L1-14G-G14-5-GR	Manifold rail · Connection accessories
VABM-L1-14G-G14-6-GR	Manifold rail · Connection accessories
VABM-L1-14G-G14-7-GR	Manifold rail · Connection accessories
VABM-L1-14G-G14-9-GR	Manifold rail · Connection accessories
PUN-H-6X1-NT	Plastic tubing · Tubes
VABM-L1-14G-G14-10-GR	Manifold rail · Connection accessories
PUN-H-6X1-BL	Plastic tubing · Tubes
PUN-H-6X1-SW	Plastic tubing · Tubes
VABM-L1-14G-G14-12-GR	Manifold rail · Connection accessories
PUN-H-6X1-TBL	Plastic tubing · Tubes
VABM-L1-14G-G14-20-GR	Manifold rail · Connection accessories
VABM-L1-14G-G14-24-M-GR	Manifold rail · Connection accessories
QS-G1/8-10-I	Push-in fitting · Push-in fittings
QS-G1/8-10-I-100	Push-in fitting · Push-in fittings
QS-G1/8-4-I-100	Push-in fitting · Push-in fittings
QS-G1/8-6-I-100	Push-in fitting · Push-in fittings
QS-G1/8-8-I-100	Push-in fitting · Push-in fittings
QS-G1/8-4-I	Push-in fitting · Push-in fittings
QS-G1/8-8-I	Push-in fitting · Push-in fittings
VAEM-L1-S-8-PT	Electrical interface · Electrical accessories
VABM-L1-14G-G14-16-M-GR	Manifold rail · Connection accessories
VABM-L1-14G-G14-20-M-GR	Manifold rail · Connection accessories
VAEM-L1-S-16-PT	Electrical interface · Electrical accessories
VAEM-L1-S-24-PT	Electrical interface · Electrical accessories
VAEM-L1-S-8-PTL	Electrical interface · Electrical accessories
VAEM-L1-S-16-PTL	Electrical interface · Electrical accessories
VAEM-L1-S-24-PTL	Electrical interface · Electrical accessories
NPQH-BK-G18-P10	Plug screw · Connection accessories
