How can I get a price quote for FESTO VUVG-S10-B52-ZT-M5-1T1L?

You can request a fast quote for FESTO VUVG-S10-B52-ZT-M5-1T1L from Yılsa Engineering. Reference part number CEY-937FC781C034. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO VUVG-S10-B52-ZT-M5-1T1L in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO VUVG-S10-B52-ZT-M5-1T1L genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO VUVG-S10-B52-ZT-M5-1T1L?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

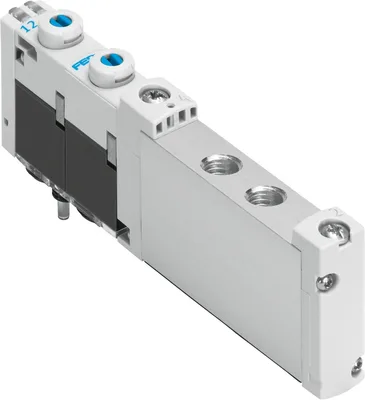

Photo may not represent actual item. Refer to name and product specs for all details.

FESTO VUVG-S10-B52-ZT-M5-1T1L

Solenoid valve. Sub-base valve, semi in-line valve. For valve terminal VTUG with multi-pin, fieldbus interface. Variants to EU Explosion Protection Directive (ATEX)

FESTOMFR # VUVG-S10-B52-ZT-M5-1T1LSKU # CEY-937FC781C034

Valve function5/2-way, double solenoid

Type of actuationElectrical

Valve size10

pneumatic working portM5

Operating voltage24 V DC

Operating pressure-0.09, 1

Have questions?Chat on WhatsApp

About This Product

Solenoid valve. Sub-base valve, semi in-line valve. For valve terminal VTUG with multi-pin, fieldbus interface. Variants to EU Explosion Protection Directive (ATEX)

FESTO VUVG-S10-B52-ZT-M5-1T1L

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function5/2-way, double solenoid

Type of actuationElectrical

Valve size10

Standard nominal flow rate (standardised to DIN 1343)230

pneumatic working portM5

Operating voltage24 V DC

Operating pressure-0.09, 1

Operating pressure-0.9, 10

DesignPiston gate valve

Approvalc UL us - Recognised (Oil)

Degree of protectionIP65, IP67

Exhaust-air functionCan be throttled

Sealing principleSoft

Mounting positionAny

Manual overrideDetenting, Non-detenting

Type of pilotingPiloted

Pilot air supplyExternal

Flow directionReversible

Symbol00991125

lapOverlap

Signal status displayLED

Pilot pressure0.15, 0.8

Pilot pressure1.5, 8

Max. switching frequency3

Switching time reversal9

Duty cycle100%

Max. positive test pulse with 0 signal1600

Max. negative test pulse with 1 signal3000

Characteristic coil data22 V DC: 1.0 W

Permissible voltage fluctuations+/-10%

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature-5, 60

Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Ambient temperature-5, 60

Product weight60

Electrical connectionVia E-box

Type of mountingOn manifold rail

Pneumatic connection, port 2M5

Pneumatic connection, port 4M5

Note on materialsRoHS compliant

Material sealsHNBR, NBR

Material housingWrought aluminium alloy

Accessories 37

Genuine accessories that can be used with the FESTO VUVG-S10-B52-ZT-M5-1T1L motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
VABM-L1-10G-G18-8-GR	Manifold rail · Connection accessories
VABM-L1-10G-G18-4-GR	Manifold rail · Connection accessories
VABM-L1-10G-G18-16-GR	Manifold rail · Connection accessories
QSM-M5-4-I	Push-in fitting · Fittings
VABM-L1-10G-G18-24-GR	Manifold rail · Connection accessories
PUN-H-4X0,75-NT	Plastic tubing · Tubes
PUN-H-4X0,75-BL	Plastic tubing · Tubes
PUN-H-4X0,75-SW	Plastic tubing · Tubes
PUN-H-4X0,75-TBL	Plastic tubing · Tubes
VABM-L1-10G-G18-5-GR	Manifold rail · Connection accessories
VABM-L1-10G-G18-6-GR	Manifold rail · Connection accessories
VABM-L1-10G-G18-7-GR	Manifold rail · Connection accessories
VABM-L1-10G-G18-9-GR	Manifold rail · Connection accessories
VABM-L1-10G-G18-10-GR	Manifold rail · Connection accessories
VABM-L1-10G-G18-12-GR	Manifold rail · Connection accessories
VABM-L1-10G-G18-20-GR	Manifold rail · Connection accessories
QSM-M5-1/4-I-U-M	Push-in fitting · Push-in fittings
QSM-M5-5/32-I-U-M	Push-in fitting · Push-in fittings
QSM-M5-3-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-4-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-6-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-3-I-R	Push-in fitting · Push-in fittings
QSM-M5-4-I-R	Push-in fitting · Push-in fittings
QSM-M5-6-I-R	Push-in fitting · Push-in fittings
QSM-M5-3-I	Push-in fitting · Push-in fittings
QSM-M5-6-I	Push-in fitting · Push-in fittings
QSM-M5-1/8-I-U-M	Push-in fitting · Push-in fittings
QSM-M5-3/16-I-U-M	Push-in fitting · Push-in fittings
VAEM-L1-S-8-PT	Electrical interface · Electrical accessories
VABM-L1-10G-G18-16-M-GR	Manifold rail · Connection accessories
VABM-L1-10G-G18-20-M-GR	Manifold rail · Connection accessories
VABM-L1-10G-G18-24-M-GR	Manifold rail · Connection accessories
VAEM-L1-S-16-PT	Electrical interface · Electrical accessories
VAEM-L1-S-24-PT	Electrical interface · Electrical accessories
VAEM-L1-S-8-PTL	Electrical interface · Electrical accessories
VAEM-L1-S-16-PTL	Electrical interface · Electrical accessories
VAEM-L1-S-24-PTL	Electrical interface · Electrical accessories
