How can I get a price quote for Festo VUVG-L14-M52-MZT-G18-1H2L-F1A?

You can request a fast quote for Festo VUVG-L14-M52-MZT-G18-1H2L-F1A from Yılsa Engineering. Reference part number YLSSEFBSJJZJRVF. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo VUVG-L14-M52-MZT-G18-1H2L-F1A in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo VUVG-L14-M52-MZT-G18-1H2L-F1A genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo VUVG-L14-M52-MZT-G18-1H2L-F1A?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

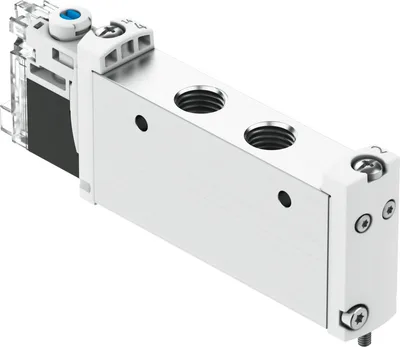

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Festo VUVG-L14-M52-MZT-G18-1H2L-F1A

Solenoid valve. Compact universal valve. Connection technology via electrical connection box (E-box). High flow rate relative to its size. In-line valves can be used as individual valves or manifold valves. Recommended for production plants for the manufacture of Li‑ion manifolds (F1A)

FestoMFR # VUVG-L14-M52-MZT-G18-1H2L-F1ASKU # YLSSEFBSJJZJRVF

Valve function5/2-way, single solenoid

Type of actuationElectrical

Valve size14

pneumatic working portG1/8

Operating voltage24 V DC

Operating pressure-0.09, 0.8

Have questions?Chat on WhatsApp

About This Product

Festo VUVG-L14-M52-MZT-G18-1H2L-F1A

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function5/2-way, single solenoid

Type of actuationElectrical

Valve size14

Standard nominal flow rate (standardised to DIN 1343)730

pneumatic working portG1/8

Operating voltage24 V DC

Operating pressure-0.09, 0.8

Operating pressure-0.9, 8

DesignPiston gate valve

Type of resetMechanical spring

ApprovalRCM, c UL us - Recognised (Oil)

Certificate issuing authorityUL MH19482

Degree of protectionIP40

Nominal size5.6

Exhaust-air functionCan be throttled

Sealing principleSoft

Mounting positionAny

Manual overrideDetenting, Non-detenting, Concealed

Type of pilotingPiloted

Pilot air supplyExternal

Symbol00991190

lapOverlap

Pilot pressure0.3, 0.8

Pilot pressure3, 8

Suitability for vacuumYes

Switching time off51

Switching time on13

Duty cycle100%

Max. positive test pulse with 0 signal700

Max. negative test pulse with 1 signal900

Characteristic coil data24 V DC: 0.8 W

Permissible voltage fluctuations+/-10%

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Restrictions for environmental and media temperature-5 - 50 °C, Without holding current reduction

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)

Cleanroom suitability, measured according to ISO 14644-14Class 5 according to ISO 14644-1

Storage temperature-20, 60

Media temperature-5, 50

Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Ambient temperature-5, 50

Product weight70

Electrical connectionPlug

Type of mountingOn manifold rail, With through-hole

Pilot air port 12/14M5

Pneumatic connection, port 1G1/8

Pneumatic connection, port 2G1/8

Pneumatic connection, port 3G1/8

Pneumatic connection, port 4G1/8

Pneumatic connection, port 5G1/8

Note on materialsRoHS compliant

Material sealsHNBR, NBR

Material housingWrought aluminium alloy

Material screwsCoated steel

Accessories 22

Genuine accessories that can be used with the Festo VUVG-L14-M52-MZT-G18-1H2L-F1A motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
VABM-L1-14S-G14-2	Manifold rail · Connection accessories
VABM-L1-14S-G14-3	Manifold rail · Connection accessories
VABM-L1-14S-G14-4	Manifold rail · Connection accessories
VABM-L1-14S-G14-5	Manifold rail · Connection accessories
VABM-L1-14S-G14-6	Manifold rail · Connection accessories
VABM-L1-14S-G14-7	Manifold rail · Connection accessories
VABM-L1-14S-G14-8	Manifold rail · Connection accessories
VABM-L1-14S-G14-9	Manifold rail · Connection accessories
VABM-L1-14S-G14-10	Manifold rail · Connection accessories
VABM-L1-14S-G14-12	Manifold rail · Connection accessories
VABM-L1-14S-G14-14	Manifold rail · Connection accessories
VABM-L1-14S-G14-16	Manifold rail · Connection accessories
NEBV-H1G2-KN-0.5-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-KN-1-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-KN-2.5-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-KN-5-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-P-0.5-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-P-1-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-P-2.5-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-P-5-N-LE2	Plug socket with cable · Electrical accessories
VABD-L1-14X-S-G18	Seal · Connection accessories
NPQH-BK-G18-P10	Plug screw · Connection accessories
