How can I get a price quote for FESTO VUVG-L14-M52-AZT-G18-1P3?

You can request a fast quote for FESTO VUVG-L14-M52-AZT-G18-1P3 from Yılsa Engineering. Reference part number CEY-937FC781CCD3. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO VUVG-L14-M52-AZT-G18-1P3 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO VUVG-L14-M52-AZT-G18-1P3 genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO VUVG-L14-M52-AZT-G18-1P3?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

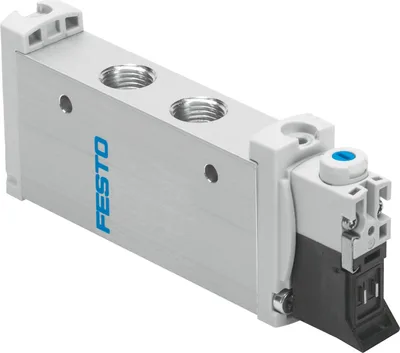

FESTO VUVG-L14-M52-AZT-G18-1P3

Solenoid valve. Compact universal valve. Connection technology via electrical connection box (E-box). High flow rate relative to its size. In-line valves can be used as individual valves or manifold valves

FESTOMFR # VUVG-L14-M52-AZT-G18-1P3SKU # CEY-937FC781CCD3

Valve function5/2-way, single solenoid

Type of actuationElectrical

Valve size14

pneumatic working portG1/8

Operating voltage24 V DC

Operating pressure-0.09, 1

Have questions?Chat on WhatsApp

About This Product

FESTO VUVG-L14-M52-AZT-G18-1P3

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function5/2-way, single solenoid

Type of actuationElectrical

Valve size14

Standard nominal flow rate (standardised to DIN 1343)680, 730

pneumatic working portG1/8

Operating voltage24 V DC

Operating pressure-0.09, 1

Operating pressure-0.9, 10

DesignPiston gate valve

Type of resetPneumatic spring

ApprovalRCM, c UL us - Recognised (Oil)

CE mark (see declaration of conformity)To EU EMC Directive, To EU Low Voltage Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions, To UK regulations for electrical equipment

Degree of protectionIP40, IP65, With plug socket

Nominal size5.6

Exhaust-air functionCan be throttled

Sealing principleSoft

Mounting positionAny

Manual overrideDetenting, Non-detenting, Concealed

Type of pilotingPiloted

Pilot air supplyExternal

Symbol00991050

lapOverlap

Pilot pressure0.25, 0.8

Pilot pressure2.5, 8

Suitability for vacuumYes

Switching time off22

Switching time on14

Duty cycle100%

Max. positive test pulse with 0 signal700

Max. negative test pulse with 1 signal900

Characteristic coil data24 V DC: 1.0 W, 24 V DC: low-current phase 0.3 W, high-current phase 1.0 W

Permissible voltage fluctuations+/-10%

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Restrictions for environmental and media temperature-5 - 50 °C, Without holding current reduction

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14Class 5 according to ISO 14644-1

Media temperature-5, 60

Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Ambient temperature-5, 60

Product weight78

Electrical connectionVia electrical sub-base

Type of mountingOn manifold rail, With through-hole

Pilot air port 12/14M5

Pneumatic connection, port 1G1/8

Pneumatic connection, port 2G1/8

Pneumatic connection, port 3G1/8

Pneumatic connection, port 4G1/8

Pneumatic connection, port 5G1/8

Note on materialsRoHS compliant

Material sealsHNBR, NBR

Material housingWrought aluminium alloy

Accessories 57

Genuine accessories that can be used with the FESTO VUVG-L14-M52-AZT-G18-1P3 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
VABD-L1-14X-S-G18	Seal · Connection accessories
VAVE-L1-1VH2-LP	Electrical sub-base · Electrical accessories
UC-1/8	Silencer · Silencer
QS-G1/8-6-I	Push-in fitting · Fittings
VAVE-L1-1VR8-LP	Electrical sub-base · Electrical accessories
NEBV-H1G2-KN-0.5-N-LE2	Plug socket with cable · Electrical accessories
PUN-H-6X1-NT	Plastic tubing · Tubes
PUN-H-6X1-BL	Plastic tubing · Tubes
PUN-H-6X1-SW	Plastic tubing · Tubes
PUN-H-6X1-TBL	Plastic tubing · Tubes
VABM-L1-14S-G14-2	Manifold rail · Connection accessories
VABM-L1-14S-G14-3	Manifold rail · Connection accessories
VABM-L1-14S-G14-4	Manifold rail · Connection accessories
VABM-L1-14S-G14-5	Manifold rail · Connection accessories
VABM-L1-14S-G14-6	Manifold rail · Connection accessories
VABM-L1-14S-G14-7	Manifold rail · Connection accessories
VABM-L1-14S-G14-8	Manifold rail · Connection accessories
VABM-L1-14S-G14-9	Manifold rail · Connection accessories
VABM-L1-14S-G14-10	Manifold rail · Connection accessories
VABM-L1-14S-G14-12	Manifold rail · Connection accessories
VABM-L1-14S-G14-14	Manifold rail · Connection accessories
VABM-L1-14S-G14-16	Manifold rail · Connection accessories
NEBA-M8G3-U-2.5-N-LE3	Connecting cable · Connecting cables
QS-G1/8-10-I	Push-in fitting · Push-in fittings
QS-G1/8-10-I-100	Push-in fitting · Push-in fittings
QS-G1/8-4-I-100	Push-in fitting · Push-in fittings
QS-G1/8-6-I-100	Push-in fitting · Push-in fittings
QS-G1/8-8-I-100	Push-in fitting · Push-in fittings
QS-G1/8-4-I	Push-in fitting · Push-in fittings
QS-G1/8-8-I	Push-in fitting · Push-in fittings
VAVE-L1-1VH3-LP	Electrical sub-base · Electrical accessories
VAVE-L1-1H2-LR	Electrical sub-base · Electrical accessories
VAVE-L1-1H3-LR	Electrical sub-base · Electrical accessories
VAVE-L1-1VS2-LP	Electrical sub-base · Electrical accessories
VAVE-L1-1VS3-LP	Electrical sub-base · Electrical accessories
VAVE-L1-1S2-LR	Electrical sub-base · Electrical accessories
VAVE-L1-1S3-LR	Electrical sub-base · Electrical accessories
VAVE-L1-1VL1-LP	Electrical sub-base · Electrical accessories
VAVE-L1-1VL2-LP	Electrical sub-base · Electrical accessories
VAVE-L1-1VL3-LP	Electrical sub-base · Electrical accessories
VAVE-L1-1VL4-LP	Electrical sub-base · Electrical accessories
VAVE-L1-1L1-LR	Electrical sub-base · Electrical accessories
VAVE-L1-1L2-LR	Electrical sub-base · Electrical accessories
VAVE-L1-1L3-LR	Electrical sub-base · Electrical accessories
VAVE-L1-1L4-LR	Electrical sub-base · Electrical accessories
VAVE-L1-1R8-LR	Electrical sub-base · Electrical accessories
VAVE-L1-1VR1-LP	Electrical sub-base · Electrical accessories
VAVE-L1-1R1-LR	Electrical sub-base · Electrical accessories
VAVE-L1-1VK6-LP	Electrical sub-base · Electrical accessories
VAVE-L1-1VK7-LP	Electrical sub-base · Electrical accessories
VAVE-L1-1VK8-LP	Electrical sub-base · Electrical accessories
VAVE-L1-1VK9-LP	Electrical sub-base · Electrical accessories
VAVE-L1-1K6-LR	Electrical sub-base · Electrical accessories
VAVE-L1-1K7-LR	Electrical sub-base · Electrical accessories
VAVE-L1-1K8-LR	Electrical sub-base · Electrical accessories
VAVE-L1-1K9-LR	Electrical sub-base · Electrical accessories
NPQH-BK-G18-P10	Plug screw · Connection accessories
