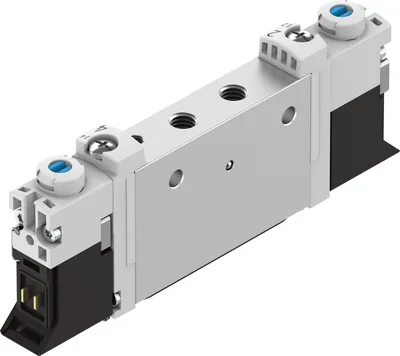

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

FESTO VUVG-L10-P53C-ZT-M5-1P3

Solenoid valve. Compact universal valve. Connection technology via electrical connection box (E-box). High flow rate relative to its size. In-line valves can be used as individual valves or manifold valves

FESTOMFR # VUVG-L10-P53C-ZT-M5-1P3SKU # CEY-937FC781CCFA

Valve function5/3-way, closed

Type of actuationElectrical

Valve size10

pneumatic working portM5

Operating voltage24 V DC

Operating pressure-0.09, 1

Have questions?Chat on WhatsApp

About This Product

FESTO VUVG-L10-P53C-ZT-M5-1P3

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function5/3-way, closed

Type of actuationElectrical

Valve size10

Standard nominal flow rate (standardised to DIN 1343)210

pneumatic working portM5

Operating voltage24 V DC

Operating pressure-0.09, 1

Operating pressure-0.9, 10

DesignPiston gate valve

Type of resetMechanical spring

ApprovalRCM, c UL us - Recognised (Oil)

CE mark (see declaration of conformity)To EU EMC Directive, To EU Low Voltage Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions, To UK regulations for electrical equipment

Degree of protectionIP40, IP65, With plug socket

Nominal size3.2

Exhaust-air functionCan be throttled

Sealing principleSoft

Mounting positionAny

Manual overrideDetenting, Non-detenting, Concealed

Type of pilotingPiloted

Pilot air supplyExternal

Symbol00991751

lapOverlap

Pilot pressure0.3, 0.8

Pilot pressure3, 8

Suitability for vacuumYes

Switching time off30

Switching time on11

Switching time reversal14

Duty cycle100%

Max. positive test pulse with 0 signal700

Max. negative test pulse with 1 signal900

Characteristic coil data24 V DC: 1.0 W, 24 V DC: low-current phase 0.3 W, high-current phase 1.0 W

Permissible voltage fluctuations+/-10%

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Restrictions for environmental and media temperature-5 - 50 °C, Without holding current reduction

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14Class 5 according to ISO 14644-1

Media temperature-5, 60

Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Ambient temperature-5, 60

Product weight55

Electrical connectionVia electrical sub-base

Type of mountingOn manifold rail, With through-hole

Pilot air port 12/14M3

Pneumatic connection, port 1M5

Pneumatic connection, port 2M5

Pneumatic connection, port 3M5

Pneumatic connection, port 4M5

Pneumatic connection, port 5M5

Note on materialsRoHS compliant

Material sealsHNBR, NBR

Material housingWrought aluminium alloy

Accessories 61

Genuine accessories that can be used with the FESTO VUVG-L10-P53C-ZT-M5-1P3 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
VABD-L1-10X-S-M5	Seal · Connection accessories
VAVE-L1-1VH2-LP	Electrical sub-base · Electrical accessories
QSM-M5-4-I	Push-in fitting · Fittings
VAVE-L1-1VR8-LP	Electrical sub-base · Electrical accessories
NEBV-H1G2-KN-0.5-N-LE2	Plug socket with cable · Electrical accessories
AMTE-M-LH-M5	Silencer · Silencer
VABM-L1-10S-G18-2	Manifold rail · Connection accessories
VABM-L1-10S-G18-3	Manifold rail · Connection accessories
VABM-L1-10S-G18-4	Manifold rail · Connection accessories
VABM-L1-10S-G18-5	Manifold rail · Connection accessories
VABM-L1-10S-G18-6	Manifold rail · Connection accessories
VABM-L1-10S-G18-7	Manifold rail · Connection accessories
VABM-L1-10S-G18-8	Manifold rail · Connection accessories
VABM-L1-10S-G18-9	Manifold rail · Connection accessories
VABM-L1-10S-G18-10	Manifold rail · Connection accessories
VABM-L1-10S-G18-12	Manifold rail · Connection accessories
VABM-L1-10S-G18-14	Manifold rail · Connection accessories
VABM-L1-10S-G18-16	Manifold rail · Connection accessories
PUN-H-4X0,75-NT	Plastic tubing · Tubes
PUN-H-4X0,75-BL	Plastic tubing · Tubes
PUN-H-4X0,75-SW	Plastic tubing · Tubes
PUN-H-4X0,75-TBL	Plastic tubing · Tubes
NEBA-M8G3-U-2.5-N-LE3	Connecting cable · Connecting cables
QSM-M5-1/4-I-U-M	Push-in fitting · Push-in fittings
QSM-M5-5/32-I-U-M	Push-in fitting · Push-in fittings
QSM-M5-3-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-4-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-6-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-3-I-R	Push-in fitting · Push-in fittings
QSM-M5-4-I-R	Push-in fitting · Push-in fittings
QSM-M5-6-I-R	Push-in fitting · Push-in fittings
QSM-M5-3-I	Push-in fitting · Push-in fittings
QSM-M5-6-I	Push-in fitting · Push-in fittings
QSM-M5-1/8-I-U-M	Push-in fitting · Push-in fittings
QSM-M5-3/16-I-U-M	Push-in fitting · Push-in fittings
VAVE-L1-1VH3-LP	Electrical sub-base · Electrical accessories
VAVE-L1-1H2-LR	Electrical sub-base · Electrical accessories
VAVE-L1-1H3-LR	Electrical sub-base · Electrical accessories
VAVE-L1-1VS2-LP	Electrical sub-base · Electrical accessories
VAVE-L1-1VS3-LP	Electrical sub-base · Electrical accessories
VAVE-L1-1S2-LR	Electrical sub-base · Electrical accessories
VAVE-L1-1S3-LR	Electrical sub-base · Electrical accessories
VAVE-L1-1VL1-LP	Electrical sub-base · Electrical accessories
VAVE-L1-1VL2-LP	Electrical sub-base · Electrical accessories
VAVE-L1-1VL3-LP	Electrical sub-base · Electrical accessories
VAVE-L1-1VL4-LP	Electrical sub-base · Electrical accessories
VAVE-L1-1L1-LR	Electrical sub-base · Electrical accessories
VAVE-L1-1L2-LR	Electrical sub-base · Electrical accessories
VAVE-L1-1L3-LR	Electrical sub-base · Electrical accessories
VAVE-L1-1L4-LR	Electrical sub-base · Electrical accessories
VAVE-L1-1R8-LR	Electrical sub-base · Electrical accessories
VAVE-L1-1VR1-LP	Electrical sub-base · Electrical accessories
VAVE-L1-1R1-LR	Electrical sub-base · Electrical accessories
VAVE-L1-1VK6-LP	Electrical sub-base · Electrical accessories
VAVE-L1-1VK7-LP	Electrical sub-base · Electrical accessories
VAVE-L1-1VK8-LP	Electrical sub-base · Electrical accessories
VAVE-L1-1VK9-LP	Electrical sub-base · Electrical accessories
VAVE-L1-1K6-LR	Electrical sub-base · Electrical accessories
VAVE-L1-1K7-LR	Electrical sub-base · Electrical accessories
VAVE-L1-1K8-LR	Electrical sub-base · Electrical accessories
VAVE-L1-1K9-LR	Electrical sub-base · Electrical accessories
