How can I get a price quote for Festo VTUS-25?

You can request a fast quote for Festo VTUS-25 from Yılsa Engineering. Reference part number YLSM7IJYHXK15IA. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo VTUS-25 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo VTUS-25 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo VTUS-25?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

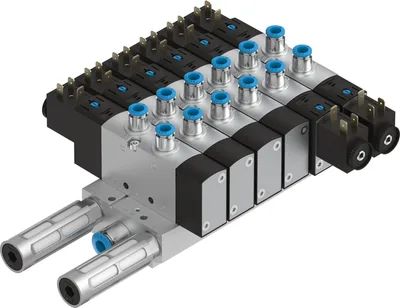

Festo VTUS-25

Valve manifold assembly. Sturdy valves VUVS with long service life. Individual electrical connection. Pilot air supply in the manifold rail. Comprehensive range of accessories

FestoMFR # VTUS-25SKU # YLSM7IJYHXK15IA

Electrical controlIndividual connection

Electrical I/O systemNo

Grid dimension27.5

Ambient temperature-10, 50

Storage temperature-20, 60

Corrosion resistance class CRC2 - Moderate corrosion stress

Have questions?Chat on WhatsApp

About This Product

Valve manifold assembly. Sturdy valves VUVS with long service life. Individual electrical connection. Pilot air supply in the manifold rail. Comprehensive range of accessories

Festo VTUS-25

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Electrical controlIndividual connection

Electrical I/O systemNo

Grid dimension27.5

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Ambient temperature-10, 50

Storage temperature-20, 60

Degree of protectionIP65, IP67, With plug socket, To IEC 60529

Corrosion resistance class CRC2 - Moderate corrosion stress

Operating pressure-0.09, 1

Operating pressure-0.9, 10

Operating pressure for valve terminal with internal pilot air supply1.5, 10

LABS (PWIS) conformityVDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1

CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX)

UKCA marking (see declaration of conformity)To UK EX instructions

Approvalc UL us - Recognised (Oil)

Explosion protectionZone 2 (ATEX), Zone 2 (UKEX), Zone 22 (ATEX), Zone 22 (UKEX)

ATEX category gasII 3G

ATEX category dustII 3D

Explosion protection certification outside the EUEPL Dc (GB), EPL Gc (GB)

Explosion ignition protection type for gasEx ec IIC T5 Gc X

Explosion ignition protection type for dustEx tc IIIC T95°C Dc X

Explosion ambient temperature-10°C <= Ta <= +50°C

Note on materialsRoHS compliant

Valve terminal structureFixed grid

Max. number of valve positions16

Max. number of pressure zones9

Valve function2x3/2 closed monostable, 2x3/2 open monostable, 2x3/2-way, open/closed, monostable, 3/2-way, single solenoid, closed, 3/2-way, single solenoid, open, 5/2-way, double solenoid, 5/2-way, single solenoid

DesignPiston gate valve, Poppet seat

Sealing principleSoft

Valve size26.5

Standard nominal flow rate (standardised to DIN 1343)1000, 1300

Exhaust-air functionCan be throttled

pneumatic working portG1/4, 1/4 NPT, QS-6, QS-8, QS-10, QS-1/4, QS-5/16, QS-3/8

Accessories 61

Genuine accessories that can be used with the Festo VTUS-25 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
VAME-B10-25-A	Foot mounting · Mounting accessories
VABM-B10-25-G12-2-P53	Common supply manifold · Connection accessories
VABM-B10-25-G12-3-P53	Common supply manifold · Connection accessories
VABM-B10-25-G12-4-P53	Common supply manifold · Connection accessories
VABM-B10-25-G12-5-P53	Common supply manifold · Connection accessories
VABM-B10-25-G12-6-P53	Common supply manifold · Connection accessories
VABM-B10-25-G12-7-P53	Common supply manifold · Connection accessories
VABM-B10-25-G12-8-P53	Common supply manifold · Connection accessories
VABM-B10-25-G12-9-P53	Common supply manifold · Connection accessories
VABM-B10-25-G12-10-P53	Common supply manifold · Connection accessories
VABM-B10-25-N12-2-P53	Common supply manifold · Connection accessories
VABM-B10-25-N12-3-P53	Common supply manifold · Connection accessories
VABM-B10-25-N12-4-P53	Common supply manifold · Connection accessories
VABM-B10-25-N12-5-P53	Common supply manifold · Connection accessories
VABM-B10-25-N12-6-P53	Common supply manifold · Connection accessories
VABM-B10-25-N12-7-P53	Common supply manifold · Connection accessories
VABM-B10-25-N12-8-P53	Common supply manifold · Connection accessories
VABM-B10-25-N12-9-P53	Common supply manifold · Connection accessories
VABM-B10-25-N12-10-P53	Common supply manifold · Connection accessories
VABM-B10-25-G12-2-P53-E	Common supply manifold · Connection accessories
VABM-B10-25-G12-3-P53-E	Common supply manifold · Connection accessories
VABM-B10-25-G12-4-P53-E	Common supply manifold · Connection accessories
VABM-B10-25E-G12-2	Manifold block · Connection accessories
VABM-B10-25E-G12-3	Manifold block · Connection accessories
VABM-B10-25E-G12-4	Manifold block · Connection accessories
VABM-B10-25E-G12-5	Manifold block · Connection accessories
VABM-B10-25E-G12-6	Manifold block · Connection accessories
VABM-B10-25E-G12-7	Manifold block · Connection accessories
VABM-B10-25E-G12-8	Manifold block · Connection accessories
VABM-B10-25E-G12-9	Manifold block · Connection accessories
VABM-B10-25E-G12-10	Manifold block · Connection accessories
VABM-B10-25E-N12-2	Manifold block · Connection accessories
VABM-B10-25E-N12-3	Manifold block · Connection accessories
VABM-B10-25E-N12-4	Manifold block · Connection accessories
VABM-B10-25E-N12-5	Manifold block · Connection accessories
VABM-B10-25E-N12-6	Manifold block · Connection accessories
VABM-B10-25E-N12-7	Manifold block · Connection accessories
VABM-B10-25E-N12-8	Manifold block · Connection accessories
VABM-B10-25E-N12-9	Manifold block · Connection accessories
VABM-B10-25E-N12-10	Manifold block · Connection accessories
VABM-B10-25E-G12-2-P3	Manifold block · Connection accessories
VABM-B10-25E-G12-3-P3	Manifold block · Connection accessories
VABM-B10-25E-G12-4-P3	Manifold block · Connection accessories
VABM-B10-25E-G12-5-P3	Manifold block · Connection accessories
VABM-B10-25E-G12-6-P3	Manifold block · Connection accessories
VABM-B10-25E-G12-7-P3	Manifold block · Connection accessories
VABM-B10-25E-G12-8-P3	Manifold block · Connection accessories
VABM-B10-25E-G12-9-P3	Manifold block · Connection accessories
VABM-B10-25E-G12-10-P3	Manifold block · Connection accessories
VABM-B10-25E-N12-2-P3	Manifold block · Connection accessories
VABM-B10-25E-N12-3-P3	Manifold block · Connection accessories
VABM-B10-25E-N12-4-P3	Manifold block · Connection accessories
VABM-B10-25E-N12-5-P3	Manifold block · Connection accessories
VABM-B10-25E-N12-6-P3	Manifold block · Connection accessories
VABM-B10-25E-N12-7-P3	Manifold block · Connection accessories
VABM-B10-25E-N12-8-P3	Manifold block · Connection accessories
VABM-B10-25E-N12-9-P3	Manifold block · Connection accessories
VABM-B10-25E-N12-10-P3	Manifold block · Connection accessories
VABM-B10-25EEE-G12-2	Manifold block · Connection accessories
VABM-B10-25EEE-G12-2-P3	Manifold block · Connection accessories
VAME-B10-25-MK	Assortment of spare parts · Mounting accessories
