How can I get a price quote for Festo VTSA-FB-AP?

You can request a fast quote for Festo VTSA-FB-AP from Yılsa Engineering. Reference part number YLS0NEIUYIH2RHL. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo VTSA-FB-AP in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo VTSA-FB-AP genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo VTSA-FB-AP?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

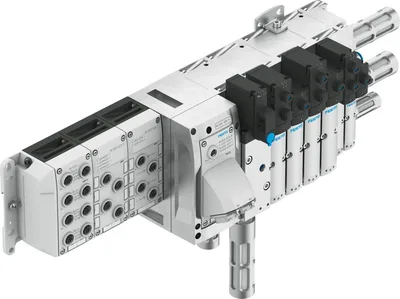

Festo VTSA-FB-AP

Valve terminal

FestoMFR # VTSA-FB-APSKU # YLS0NEIUYIH2RHL

Electrical controlAP interface, Fieldbus

Electrical I/O systemYes

Terminal type44

ProtocolAP

Max. number of modules15

Mounting positionAny, on H-rail: horizontal

Have questions?Chat on WhatsApp

About This Product

Festo VTSA-FB-AP (Valve terminal) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Festo VTSA-FB-AP — price, stock availability and technical specifications.

Festo VTSA-FB-AP

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Electrical controlAP interface, Fieldbus

Electrical I/O systemYes

Terminal type44

ProtocolAP

Type of mountingOn DIN rail via accessories, On mounting frame, Screw-clamped, With through-hole for M5 screw with accessories, With through-hole for M6 screw with accessories, Via through-hole for M5 screw, Via thro

Max. number of modules15

Mounting positionAny, on H-rail: horizontal

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Ambient temperature-5, 50

Note on ambient temperatureObserve derating according to user documentation, Observe ambient temperature derating according to IEC 61131-2:2017

Storage temperature-20, 60

Relative air humidity5 - 90%, Non-condensing

Nominal altitude of use<= 2000 m ASL (> 79.5 kPa)

Max. installation height3500

Note on max. installation heightObserve derating according to user documentation, Observe ambient temperature derating according to IEC 61131-2:2017

Degree of protectionIP65

Note on degree of protectionUnused connections sealed

Corrosion resistance class CRC0 - No corrosion stress

Protection against direct and indirect contactSELV/PELV power supply units required

Pollution degree2

Operating pressure-0.09, 1

Operating pressure-0.9, 10

Pilot pressure0.3, 1

Pilot pressure3, 10

Operating pressure for valve terminal with internal pilot air supply0.3, 1

Operating pressure for valve terminal with internal pilot air supply3, 10

Operating pressure for valve terminal with internal pilot air supply43.5, 145

LABS (PWIS) conformityVDMA24364-B1/B2-L

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

KC markKC-EMV

ApprovalRCM, c UL us - Recognised (Oil)

Certificate issuing authorityUL E322346

Note on materialsFree of halogen, Free of phosphoric acid ester

Valve terminal structureModular, valve sizes can be mixed

Max. number of valve positions32

Max. number of pressure zones32

Type of actuationElectrical

Valve function5/3-way, port 2 pressurised, 4 exhausted

DesignPiston gate valve

Valve size42

Pilot air supplyExternal, Internal

Max. standard nominal flow rate700 l/min at 18 mm, 1350 l/min at 26 mm, 1860 l/min at 42 mm, 2900 l/min at 52 mm, 4000 l/min at 65 mm

Suitability for vacuumYes

Exhaust-air functionVia throttle plate

pneumatic working portG1/8, G1/4, G3/8, G1/2, 1/8 NPT, 1/4 NPT, 3/8 NPT, 1/2 NPT, QS-6, QS-8, QS-10, QS-12, QS-14, QS-16, QS-5/16, QS-3/8, QS-1/2

Signal status displayLED

Note on fieldbus interfaceAll information that is relevant to CPX-AP can be read out via the Ethernet interfaces/fieldbus connections and changed depending on the function., Auto MDI, the bus module performs a crossover check,

Fieldbus interfaceEthernet

Field bus, protocolACD (Address Conflict Detection), DLR (Device Level Ring), EtherCAT®, EtherCAT CoE, EtherCAT Distributed Clocks (DC), EtherCAT EoE, EtherCAT FoE, EtherCAT Modular Device Profile (MDP), EtherNet/IP, Et

Fieldbus interface, functionBus connection incoming/outgoing

Field bus, connection type2x socket

Field bus, connection systemM12x1, D-coded to EN 61076-2-101, RJ45 to IEC 61076-3-117 (V14), SCRJ according to IEC 61754-24-21

Field bus, connection pattern2, 8

Field bus interface, electrical isolationYes

Field bus interface, transmission rate100 Mbit/s

Max. address volume, inputs1024

Note on inputsEP: 488 bytes, Modbus: 4096 bytes

Max. address volume, outputs1024

Note on outputsEP: 496 bytes, Modbus: 4096 bytes

Internal cycle time< 1 ms

Configuration supportEDS file, ESI file, GSDML file, IODD file

Power supply, functionIncoming electronics/sensors and load and functional earth, Incoming electronics/sensors and load

Power supply, connection typePlug

power supply, connection system7/8“ to NFPA/T3.5.29, M12x1, L-coded to EN 61076-2-111, M18x1, M8x1, A-coded to EN 61076-2-104, Push-pull to IEC 61076-3-126

Power supply, number of pins/wires4, 5

Note regarding operating voltageSELV/PELV fixed power supplies required, Note the voltage drop

Nominal operating voltage DC24

Note on nominal operating voltage DCProtected Extra-Low-Voltage to IEC 60204-1

Permissible voltage fluctuations+/-10%

Nominal DC operating voltage, electronics/sensors24

Permissible voltage fluctuations for electronics/sensors±25%

Max. power supply4, 16

Typ. intrinsic current consumption at nominal operating voltage for electronic s40, 10000

Typ. intrinsic current consumption at nominal operating voltage, load3, 10000

Power failure bridging10

Potential separation between the supply voltages electronics/sensor technology aYes

Reverse polarity protectionYes

Accessories 11

Genuine accessories that can be used with the Festo VTSA-FB-AP motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
CPX-AP-A-S-2-M12-4P	System supply · Electrical accessories
NECL-S-L12G4-C2-Q10	Power supply plug · Electrical accessories
NECL-S-L12W4-C2-Q10	Power supply plug · Electrical accessories
NECL-L12G4-C2-Q10	Power supply socket · Electrical accessories
NECL-L12W4-C2-Q10	Power supply socket · Electrical accessories
CPX-AP-A	Remote I/O system · Connection accessories
VABA-S6-1-AP	Electrical interface · Electrical accessories
NECL-S-L12G5-C2-Q10	Power supply plug · Electrical accessories
NECL-S-L12W5-C2-Q10	Power supply plug · Electrical accessories
NECL-L12G5-C2-Q10	Power supply socket · Electrical accessories
NECL-L12W5-C2-Q10	Power supply socket · Electrical accessories
